Three rollers mill with dumping device,China price supplier

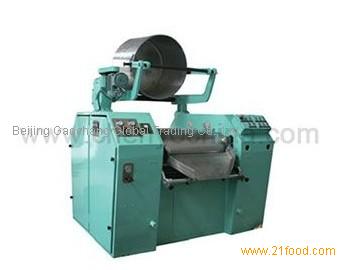

Three rollers mill with dumping device

FOB Price:Price can be negotiated

Update Time:2013-07-19

Contact Supplier

Product Description

Product Description

The three horizontal rollers driven by motor through belt pulley and special gear unit squeeze the big particles into small particles. The clearance between rollers can be adjusted to deal with material with different viscosity and fineness. This adjustment is manually operated. The three rollers rotate to opposite directions at different speeds. The first roller runs forward at high speed, the second runs backward at medium speed, and the last runs forward at low speed. Manually pour the raw material into between last and second rollers, through sufficiently grinding; the raw material will be brought out by the fast rotating first roller. At the other side of first roller, there is scraper and Separator which separate grinded material from the roller, and drop them into container to finish one round of grinding. The special inner rollers cooling system effectively releases the heating arose from these movements to ensure the quality of end products. The rollers are molded with hard alloy which is cost effective and endurable. The dumping device has easy and convenient operation and is adjustable to match diameter of containers. And it can be customized

Applications

Three rollers mill are mainly used to produce medium and high viscosity materials in painting, ink, pigment, plastic, soap, artificial leather, lubricant, foods, and pharmaceutics industries. In particular, it suits to grinding high viscous material with high requirement of grinding fineness. At present, three rollers mill is one of those who can reach finest grinding result.

Configuration

model	power	R oller dia.	R oller length	fast： medium ：low（speed）	O verall shape	weight
CYSM -150	2.2kW	150mm	300mm	182 : 78 : 34 rpm	8 4 08 4 09 4 0mm	7 00kg
CYSM- 260	7.5kW	260mm	675mm	183 : 64 : 22.5 rpm	168013201100mm	2400 kg
CYSM- 405	15kW	405mm	1000mm	130.5 : 42 : 13 rpm	205020001800mm	47 00kg

Features

1. This machine suits for dealing with high viscous slurry or ointment. Easy operation;
2. The clearance between rollers is adjustable. The struction is simple and reliable.
3. High hardness and high-wearing feature ensure this mill endurable and long working life.
4. Rollers inside cooling system has great performance.
5. The dumping device can be customized to match clients’ containers.

Other Products

CNC three roller mill--DS200

Common three rollers mill

Three rollers mill with dumping device

Flaking Mill

Company Profile

Name: Beijing Gaochang Global Trading Co., Ltd.

Main Products: three roller mill

Business Type: Manufacture & Trade

Total Employees: 50 ~ 100

Established Year: 1996

Total Annual Revenue: US$2.5 Million - US$5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: beijing city china

　　Dalian Gao Chang Machinery Manufacturing Co., Ltd., established in 1996, is located in Lingang Industrial Zone, Zhuanghe in Dalian and become a manufacturer specialized in cereals and oil pretreatment machinery equipments.

　　We have been kept the service concept that "quality molds the brand, reputation wins the market" for 17 years. In 1999, we adopted German centrifugal composite casting equipment to produce core component roll.Through technical Cooperation with Dalian First Heavy Design and Research Institute in 2005, we assimulated and introduced a full set of foreign advanced technology of similar products to optimize the design. With 17 years’ efforts,Gao Chang Company has accumulated rich experience in manufacturing oil pretreatment equipment and achieved three big leaps. In recent years, our products have served COFCO, Jiusan Group, Liaoning Longjiangfu Group,Fuzhou Jijia, Fujian Parknship, Hongyi, Beijing Huifu Grains & Oils and other large oil companies of over kilotons processing capacity. And our products have been exported to Brazil, Argentina, Taiwan, Russia, Philippines and other countries.

　　Gaochang Company always insists on improving competitiveness of the products, adheres to the development of a variety and therefore keeps ahead in the industry. We pay attention to the cutting edge of technology, and continuously enhance the competitiveness of enterprise. We never slow down our step on research and development 17 years as one day, as we are chasing the success of molding a world-famous brand.

　　As a 17 years old enterprise, we optimized the technology of similar goods in the industry at domestic and foreign and are catching up with the world-famous producers. Two of the oil pretreatment equipments, flaking roll and crushing mill accessed to eight national technical patents and the core part patent cold mounting technology.
