Tilting-type jacket kettle with mixer for jam,China DF price supplier

Tilting-type jacket kettle with mixer for jam

FOB Price:Price can be negotiated

Production Capacity:120 Sets/Month

Payment Terms: FOB/CIF

Update Time:2021-10-28

Contact Supplier

Product Description

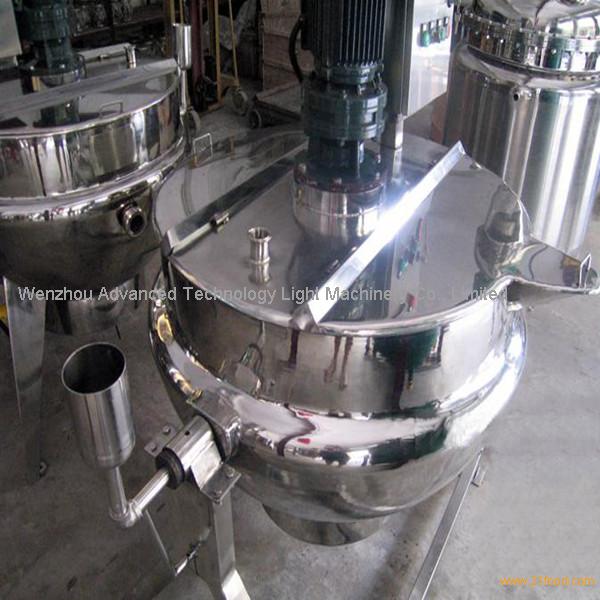

Tilting-type jacket kettle with Mixer for jam

jacket kettle with agitator, cooking kettle with mixer

Usages :

1.Electric heating jacketed boilers are widely used in the fields of candy, pharmacy, dairy products, wine, pastry, candied fruit, beverage, canned foods, sauced Meat and food processing.

2. Can be used for large restaurant or dining room to boil soup, cook, stew, congee, etc., it is a good equipment for food processing to improve quality, shorten the time, improve working conditions.

3.The agitators have many kinds and can provied to meet clients'requirements.

Characteristics of Electric Jacketed Kettle with mixer for jam:

Electric heating jacketed kettle takes 380V power as heat source, the middle layer is filled with electric rods, thermocouple and heat-conducting oil (customers should prepare by themselves) , the temperature can be up to 320 degree, controlled by electrical control box, and it is equipped with automatic temperature control system. Electric heating jacketed kettle has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.

Technical parameters chart:

Model	50L	100L	200L	300L	400L	500L	600L	800L	1000L
Depth of Pot(mm)	400	450	530	630	680	730	780	830	900
Heating area(m2)	0.45	0.58	1.12	1.42	1.75	2	2.3	3.2	3.9
Amount of heat-conducting oil(L)	30	36	45	60	70	80	100	200	250
Working pressure	≤0.09Mpa
Stirring speed	36 r/min
Stirring power(kw)	0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2
