TQ-M Mushroom type extracting can stainless steel extraction can multi-functional extractor,China JC price supplier

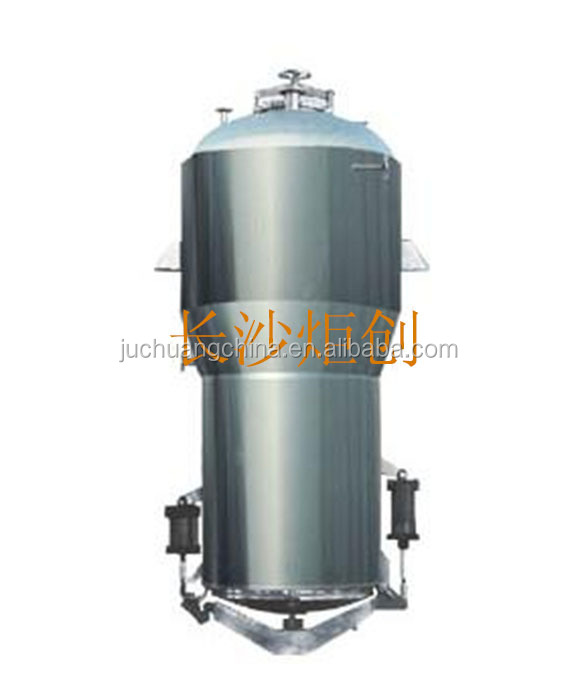

TQ-M Mushroom type extracting can stainless steel extraction can multi-functional extractor

FOB Price:Price can be negotiated

Production Capacity:30 Piece/Pieces per Month

Payment Terms: US $800 - 12,000 / Piece

Update Time:2024-04-05

Contact Supplier

Product Description

min order:1 piece
name:stainless steel Tank
maretial:SUS304 or SUS316 L
provide custom service

Product Description

We supply biology.pharmacy,food,drink,electronical,chemical industry SUS304,304L,316,316L
stainless steel liquid equipment,infusion and injection project,fermentation system,extraction and
concentration,pipeline install and many of the tank accessory.provide secondary engineering desin,
manufacture,installation and commissioning.system verification,until the turnkey project,to meet user
GMP/FDA strictly enforced.

The equipment is applicable to the multiple technology operations of normal

pressure, micro pressure, water frying, warm soaking, thermal reflux, compulsory

circulation, filtration, redolent oil extraction and organic solvent recycling in

traditional Chinese medicine, food and chemical industry. The tank body is

equipped with CIP cleaning automatic rotary spraying ball head, thermometer,

view lamp, sight glass, rapid open type feeding inlet and etc., which can

guarantee the convenient operation and are in accordance with GMP standard.

The tank body inside the equipment is made of imported SUS304, and the jacket

adopts the integral PU foam for heat preservation. The external layer is subjected

to SUS304 matte polishing. The external tank body is stuck with SUS304 matte

thin steel sheet for surface decoration. The complete equipment supplied shall

include: defoamer, condenser, cooler, oil and water separator, Filter, cylinder

control box and other accessories.

Some project of Extrating

Technical parameters

Model	TQ-1000	TQ-2000	TQ-3000	TQ-6000	TQ-8000	TQ-10000
Volume	1200	2300	3200	6300	8500	11000
Tank design pressure(MPA)	0.09Mpa
Jacketed layer design pressure(MPA)	0.3Mpa
Feed orifices diameters(mm)	400	400	400	450	500	600
Heating area (m2)	3	4.7	6.5	9	12	13
Condensation area (m2)	5	8	12	16	22	24
Cooling area(m2)	1	1	1.5	2	2	3
Filter area(m2)	0.5	0.5	0.5	0.8	1.2	1.2
Diameter of slagging door(m2)	600	800	1000	1200	1200	1400
Gas consumption(kg/h)	285	346	570	718	903	1140
Water consumption(t/h)	3	4	5	7	8	10
Steam inlet(m/m)	40	40	40	50	60	60
Water inlet and outlet(m/m)	40	50	60	60	70	70
Equipment weight(kg)	1800	2050	2400	3025	4030	6500

Typical applications

Advantage Equipment

Skill-full Workers

Strictly Quality Control

Packaging & Shipping

Our Services

Payment

Afer-sale service

We provide high efficiency service during customs clearance and after shipping

If you have other requirements on document please inform us before making order

Company Information

Company&Certificate

Our company is a professional manufactuer on various kinds of stainless steel tank in China for over 10 years. we have own factory and skilled worker,rich-experienced design team and strict QC and good after sales service.

Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from factory visiting,ordering to deliver goods and after-sales service.
In the same time, we also can provide professional on-site sourcing solutions when customers asking.This is saving their time and cost.

FAQ

If you have any other question please contact us for prompt response.

any question,pls contact me

Place of Origin:	Hunan China (Mainland)	Brand Name:	JC	Model Number:	TQ-M
Application:	bulk drug	Type:	Extractor	After-sales Service Provided:	Engineers available to service machinery overseas
material:	stainless steel 304 or 316	capacity:	1200L to 11000 L	business type:	manufacturer
function:	extraction,storage,heating	available industry:	pharmacy	model:	TQM-1,TQM-2,TQM-3,TQM-6,TQM-8,TQM-10,
thickness:	3mm,4mm,5mm,6mm,7mm,8mm	warranty:	12 month	weld:	argon arc weld
condition:	new
