tuble type juice milk pasteurizer

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Update Time:2024-07-12

Contact Supplier

Product Description

tuble type juice milk Pasteurizer
1.tubular sterilizing system
2.suitable for juice,juice with pulp

tuble type juice milk pasteurizer

Characteristics of tuble type juice milk pasteurizer

Tubular sterilizing system could process many kinds of liquid products, especially suitable for processing high viscous liquid, FRUIT JUICE containing big granules or fiber, high acidity product which is corrosive to equipment and aseptic lower acidity product containing granules.

For example: tomato jam, fruit juice, coffee drink, artificial buffer, Ice cream and so on.

This tubular sterilizing system is also widely used in milk processing lines as pasteurizing, high temperature sterilizing or ultra high temperature sterilizing system.

Main Technical Specifications of tuble type juice milk pasteurizer

Name	U nit	UHT-1 T	UHT-2 T	UHT-3 T	UHT-4 T	UHT-5 T	UHT-6 T
Production capacity	t/h	1	2	3	4	5	6
H eat exchaging area	m2	20	28	35	45	52	60
T emperature of material inlet	degree	≤15	≤15	≤15	≤15	≤15	≤15
T emperature of material outlet	degree	≤25	≤25	≤25	≤25	≤25	≤25
Sterilizing temperature	degree	95-125	95-125	95-125	95-125	95-125	95-125
H eat preservation time	s	5	5	5	5	5	5
T emperature of ice water inlet	degree	≤2	≤2	≤2	≤2	≤2	≤2
P ressure of steam inlet	Mpa	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
M aximum steam consumption	kg/h	200	250	330	410	480	550
Compressed air pressure	Mpa	0.6	0.6	0.6	0.6	0.6	0.6
Compressed air consumption	L /H	50	50	50	50	50	50
E quipment weight	kg	1600	2000	2400	2600	2800	3000

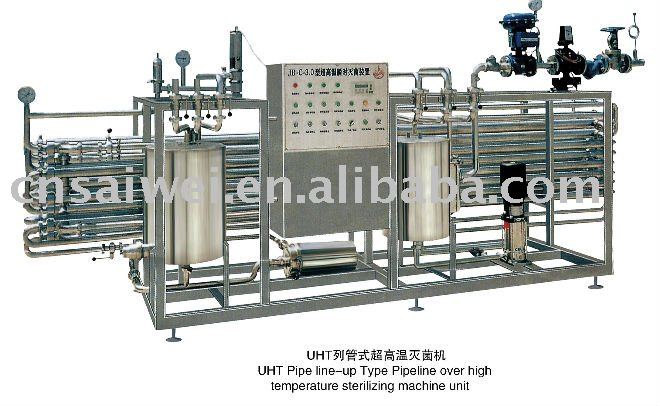

Show detailed pictures of tuble type juice milk pasteurizer

Welcome to check our tuble type juice milk pasteurizer

Tomas Lin
Phone:0086-15950965036
YM:tomaslin--yahoo.com
MSN:tomaslin--live.cn
Skype:tomas_lin1

Processing:	Sterilizer,sterilizer	Condition:	New	Place of Origin:	Jiangsu China (Mainland)
Brand Name:	SAIWEI	Model Number:	UHT	Processing Types:	Juice
Voltage:	by customor	Power(W):	by machine model	Weight:	by machine model
Dimension(LWH):	by machine model	Certification:	ISO,CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas
