Twist angle tester XN-720 is mainly applicable to the determination of individual high-density polyethylene stretch film twist angle of residues, longitudinal tear length value, is widely used in film production enterprises, quality inspection and other institutions.

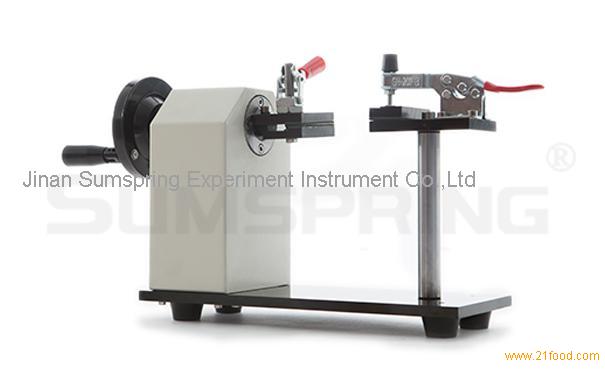

Twist angle tester
Test principle
When the sample is rotated 720 degrees and placed on the angle check box for 30 mins, and the rest angle of the rebound is recorded, that is twist residue angle. Rotated the thin film sample 720 degrees by twist tester, take the film down and flattened, Measuring and calculating the length of the 1/2 and the sum of the length of the gap, that is, the length of the longitudinal tear.
Application
| Product
|
Name
|
Application
|
|
|
Polyethylene stretch film
|
Determine residues, longitudinal tear length value of individual high-density polyethylene stretch film twist angle
|
Technical feature
1.Four-angle , high test efficiency
2.User-friendly design, easy to operate
Main Specification
| Technical parameter
|
|
| Rotation Angle
|
720±2 °
|
| Distance Between Plate
|
20mm
|
| Check Angle Positioning
|
Four
|
| Machine size
|
360mm(L)×130mm(W)×240mm(H)
|
| Weight
|
7Kg
|
| Environment requirements
|
|
| Environment temperature
|
15℃-50℃
|
| Relative humidity
|
No more than 80%，no dewdrop
|
Standards
QB-T 1128-1991 One-way stretch of high-density polyethylene film
Configuration
Host, test plates, angle test box
Jinan Sumspring Experiment Instrument Co., Ltd is a high tech innovation enterprise focus on laboratory analysis instrument research ,development and sales. Founded in 2007, our company focused on quality control unit, food industry, pharmaceutical industry, packaging and printing industry, adhesive industry, household appliances and other packaging materials and provide first-class test equipment and comprehensive quality control solution.
Sumspring technical team has been independent research,development, innovation and production equipment to meet requirements both domestic and abroad. it is also takeg ISO, ASTM, TAPPI and other international standard specifications into consideration . A number of new technologies, new invention patent certificate, have complete independent intellectual property rights.
Sumspring has a high-quality R & D team and production team, the instrument designed from the beginning to read a variety of domestic and international testing standards, to meet the equipment used in all areas of domestic and international packaging, food, pharmaceutical, industrial and other industries.
Sumspring laboratory has a professional technical service team, with independent research and development of more than 40 sets of advanced equipment, testing tools, and other accessory. Not only provide accurate and reliable test data objectively and fair, also establish learning exchange platform for institutions, research institutes , medium and large enterprises.
Sumspring establish product quality risk management and control system for the production of enterprises, government regulators to help the development of relevant standards and regulations. We are also concerned about the international advanced packaging test methods to help domestic enterprises and government departments to better enhance the production and management levels. Contribute to the quality and safety of the food and drug packaging industry.
