Two phase centrifuge/disc type oil water separator,China WANDA price supplier

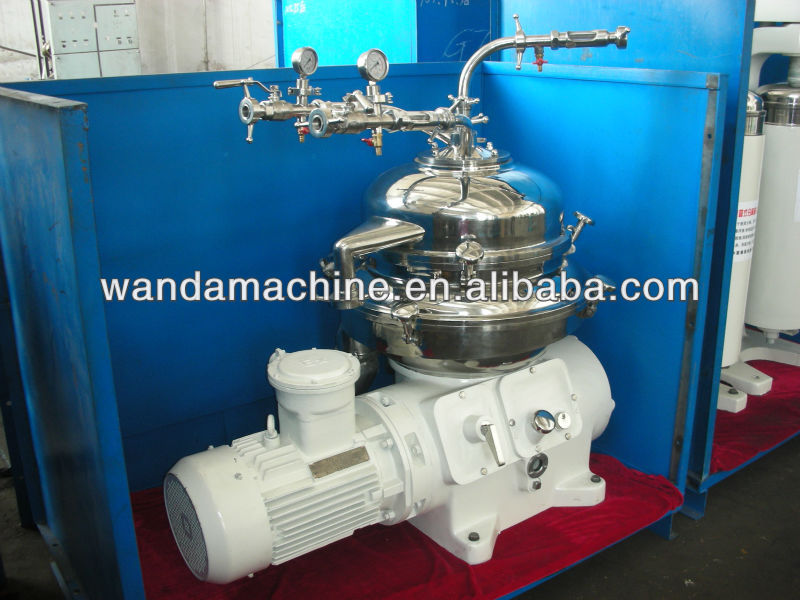

Two phase centrifuge/disc type oil water separator

FOB Price:Price can be negotiated

Production Capacity:300 Set/Sets per Month

Payment Terms: US $2,000 - 5,000 / Set

Update Time:2021-06-13

Contact Supplier

Product Description

1.Disc-type Oil-water seperator
2,strong ability of separation with simple structure
3.Low consumption
4.12months warranty

high capacity centrifuge disc-type Separator

centrifugal machine /centrifuges suppliers

Test separator and installation:

A: check, before starting the spindle and the drum is connected preload, the upper end of a main shaft connecting joint and buffer rubber pad position is correct, whether the drum bottom shaft alignment marks the preload, the liquid inlet bearing fasteners, the connection is firm and reliable, appropriate tensioner tightness, power supply connection and zero connection protection and reliable, liquid disc pressing cap is pressed liquid disc, drum rotation direction is correct;

Two. The boot: starting power to observe any abnormal situation, the machine does not completely reach the normal speed, can not leave the operation power, nor feed;

Three. Feeding: when the machine is completely reaches the normal speed of charging, charging is slow, and the pressure should be less than 0.1Mpa, the discharge port discharge after adjustment to the normal feeding quantity;

Four. Stop: power off, wait for about 12 minutes, the machine energy completely stopped, in the machine is not completely stopped not any parts operating machine;

Five. Removing: determine the machine stops will be liquid disc pressure cap loose unload liquid dish, will drum out from the body, to work on the shelves with a special spanner will bottom shaft opened, three wing drum out, clear the drum solid phase, the operator should do the protective measures, must be completely remove the drum solid;

Six. Installation: drum after cleaning, the three wings of the mark in the drum, the bottom shaft installation. Should be installed in the threaded put some lubricant, check the seal is intact, the bottom shaft seat and the drum is marked, the bottom shaft and drum pre-tightening by pretightening force appropriate. If Mark misaligned, replaceable bottom shaft seal to adjust and correct, the drum into the machine, hydraulic disc connected into good spindle, pressing liquid dish.

Main technical parameter of centrifugal machine

Main technical parameter:

Model	Handing capacity(l/h)	Inlet pressure(mpa)	Outlet pressure(mpa)	Power(kw)	Weight(kg)	Dimension(mm)
DHZ550E	6000-15000	0.05	0.1-0.3	22	2600	185015502050
DHZ550A	5000-10000	0.05	0.1-0.3	18.5	2600	185015502050
DHZ470	2500-7000	0.05	0.1-0.3	15	1700	180012001800
DHZ400	2000-4000	0.05	0.1-0.25	15	1500	180012001800
DHZ360	1200-2500	0.05	0.1-0.25	7.5	650	150011501500
DRZ550	1800-6000	0.05	0.1-0.3	22	2200	162013002200
DRZ400E	4000-7500	0.05	0.1-0.35	7.5	850	13009001500
DRZ400A	2000-6000	0.05	0.1-0.35	7.5	800	13009001450
DR(S)Z360	1200-2500	0.4-0.55	0.2-0.4	5.5	600	125010501500

Detailed Packing

If u are interested our products or u have any need for our products ,pls do not hesitate to contact me .I will try my best for u dear.

Condition:	New	Usage:	Olive Oil	Type:	Disc-type centrifuge
Automatic Grade:	Automatic	Production Capacity:	5000-10000L/H	Place of Origin:	Henan China (Mainland)
Brand Name:	WANDA	Model Number:	DHZ550A	Voltage:	220/380V
Power(W):	18.5KW	Dimension(LWH):	185015502050	Weight:	2600,300-520KG
Certification:	CE ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas	Name:	Tubular centrifuge
Capacity:	600-2500L/H	Power:	1.5-3KW	Packing size:	450 7601120mm
Squeeze tube capacity:	200KG	Business type:	manufacturer	Diameter (mm):	75-142
Rotary seed(r/m):	19000-13400	Warranty:	1 year
