UHT For 5 Tons,China Mars price supplier

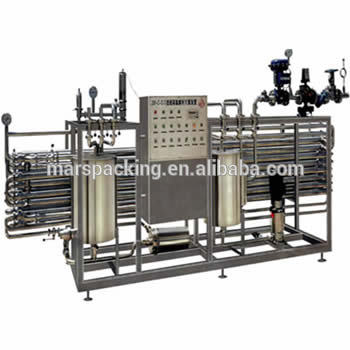

UHT For 5 Tons

FOB Price:Price can be negotiated

Production Capacity:180 Piece/Pieces per Year

Payment Terms: US $15,000 - 16,000 / Piece

Update Time:2021-02-15

Contact Supplier

Product Description

UHT For 5 Tons
1.Processe: Sterilizer
2.Type: General
3.Materials: SUS304/SUS316
4.Usage: Milk

UHT For 5 Tons

Usages of Tube Sterilizer

It is widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.

Technical Parameters of Tube Sterilizer

Process parameters: 5°C→65°C homogenizer →95°C(30S)→140°C(4S)→25°C

Chilled water: 1:1 (≤2°C spare) Cooling water: 1:1(30°C spare)

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Material	Steam	Medium
MA-UHT-1	1	40	6.0	4.0	3.3×1.6×1.8	1960	25	DN25	25
MA-UHT- 1.5	1.5	60	6.0	4.0	3.3×1.6×1.8	1960	25	DN25	25
MA-UHT- 2	2	80	6.0	6.0	3.5×1.8×2.0	2160	38	DN25	38
MA-UHT- 3	3	120	6.0	6.0	4.5×1.8×2.0	2420	38	DN25	38
MA-UHT- 4	4	160	6.0	7.0	4.5×2.0×2.0	2570	38	DN32	38
MA-UHT- 5	5	200	6.0	7.0	4.5×2.0×2.0	2940	38	DN32	38
MA-UHT- 6	6	240	6.0	7.0	4.5×2.0×2.2	3300	51	DN40	51
MA-UHT- 8	8	320	6.0	11.0	6.5×2.0×2.2	3700	51	DN50	51
MA-UHT- 10	10	400	6.0	11.0	6.5×2.0×2.2	4200	51	DN50	51

Notes:

1. the parameters in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.

2.process parameters that need provided:material properties, Sterilization process, specific requirements, etc.

3. auxiliary equipment: gas storage Tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

Main Configuration of Tube Sterilizer

This unit is mainly composed of material system, high temperature hot water system, degassing system (optional), high pressure homogenization system(optional),CIP system, self-sterilizing aseptic system(optional) and control system and other system components.

Processing:	Sterilizer,Sterilize	Condition:	New	Place of Origin:	Jiangsu China (Mainland)
Brand Name:	Mars	Model Number:	MA-UHT-5	Processing Types:	Milk
Voltage:	220v 380v	Power(W):	7kw	Weight:	2900kg
Dimension(LWH):	4.5x2.0x2.0m	Certification:	CE	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas
