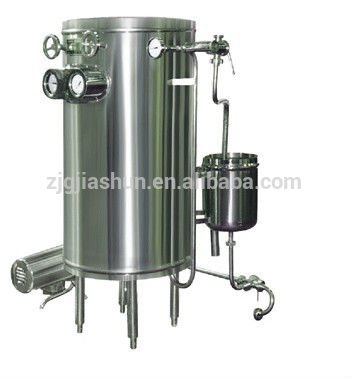

UHT high temperature sterilizer

Using Scope

This equipment is mainly used for sterilizing milk, juice, beverage, wine and other fluid materials can also be used to sterilize milk, fluid drug material.

Production Features

1.  water shower or spray type Sterilization , raise/drop temp/pressure very precise

2.  ten step temp/pressure settings , make the pressure control perfect

3.Simens PLC and touches screen, realiable and easy to access

4.High heat effect.90% of the heat can be recycled after heating the material.

5.It is of preclse and realiable sterillizing temperature control:automaticlly control the affecting sterillizing temperature system such as team pressure,flow,material flow.

Working Process

1. The general material into the heat exchange device through the centrifugal pump to get preheating .

2. then after the high temperature barrel which is full of high pressure, the material is rapidly heated to the sterilization temperature and maintains for about 3seconds, the microorganism and Enzymes are kills quickly.

3. After getting out the high temperature barrel, the materials cool down by heat exchanging with cold materials, so the temperature is generally low than 65°C. If the next process needs to increase temperature, it can be done by adjusting the angle globe valve or circulation. Otherwise, cooling water should be access to low the discharge temperature.

4.  The discharge is controlled by throttle valve. Under a certain pressure, this valve can maintain the boiling point higher than highest temperature. Adjust this valve when normal production, the driving force from the pump overcome the spring pressure to form backpressure, and thus to control flow. Surely, it should be all open when cleaning this sterilization machine.

5. Circular storage Tank can be used for the preparation of acid and alkali solution, and clean the coil fouling in the inner wall effectively. Because adopting the stainless steel triplet cock, the flow can be adjusted suitably.
