1.Model:HTS
2.Maximum particle material:8mm
3.Material flow: 300-1500L/H
4.Minimum feeding amount :50L
5.Occupies:5 to 6 m2
Introduction of uht Pasteurizer:
This uht pasteurizer is widely used for determining and updating of the original recipe about raw materials of Milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products, screening product taste, color evaluation, stabilizer / emulsifier applications, new R & D and small batch production using. This uht pasteurizer is ideal for handling capacity from 300 to 1500 kg production fluid materials used for Sterilization. This uht pasteurizer integrates heat pasteurization, sterilization, cooling, hot filling into one. Automatic control, touch screen dynamic display system. It is the ideal equipment for small school and community pasteurized milk enterprises. This uht pasteurizer standard inlet steam proportion valve, high precision temperature of sterilization, this is very suitable for high quality requirements of the disinfection product and peri-urban large-scale food production enterprises.
Features of uht pasteurizer:
This uht pasteurizer includes three parts: regeneration, heating and cooling , the sheet and tubing type of sterilization can be combined in various forms, And with two separate heating and cooling section to line homogenizer. Product temperature can reach 142 °C. All parts in contact with the product of this uht pasteurizer are made of 316 stainless steel, Plate gaskets and seals made of food-grade Viton, product pipelines connecting with DIN sanitary fittings. In the display output, the production casing type UHT sterilization machine configuration touch screen, PLC program control, it’s can be dynamically reflect of the product temperature, flow and other parameters, the gauge and digital sensor can be selected according to user requirements, Therefore, the uht pasteurizer is able to adapt to a variety of materials for industrial production.
Parameters of uht pasteurizer :
1. Occupies only 5 to 6 m2
2. Minimum feeding amount 50L
3. Material flow: 300-1500L / H (depending on model)
4. Highest degree of sterilization temperature :130-142
5. Temperature control ± 1 °C
6. Sterilization time: customers make their own determination
7. Maximum particle material: 8mm
8. Heating device: external steam
9 . Sterilization methods: sterilization casing
10. Equipment cleaning: standard power pump
11. Materials temporary storage tank: 30 ~ 50 liters (depending on model)
12. Equipment Material: high quality SUS304
Pctures of uht pasteurizer :

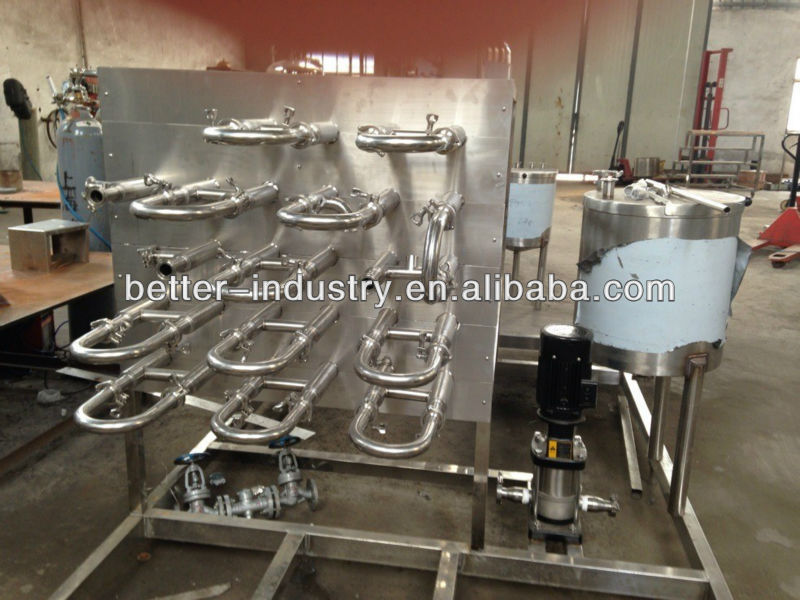

U ht pasteurizer

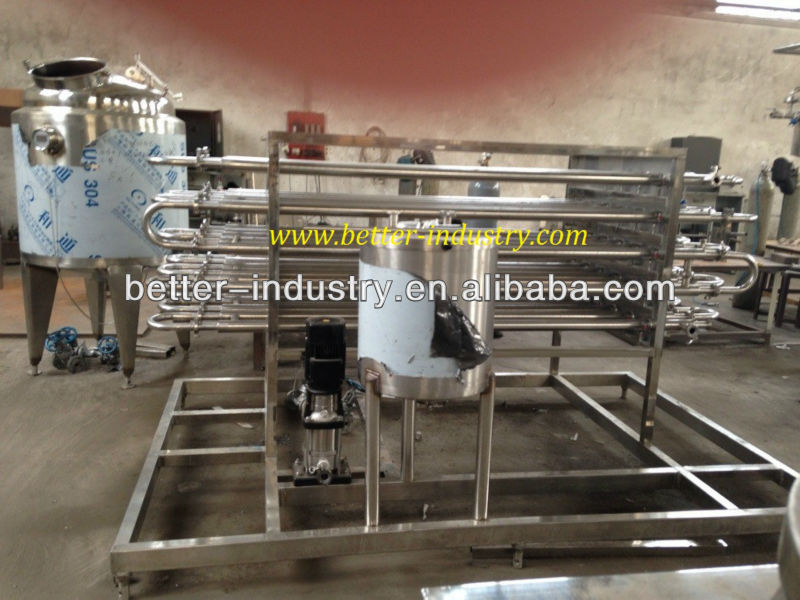

U ht pasteurizer
Packaging of U ht pasteurizer
Packaging of U ht pasteurizer
Thanks for interest in our products!!!
Condition: |
New
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
BETTER
|
Model Number: |
HTS
|
Usage: |
Milk,juice,tea drinks,ketchup,condiments,beer,butter,ice cream,powder
|
Type: |
Ultra High Temperature
|
Voltage: |
380v
|
Warranty: |
12 Months
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Model: |
HTS
|
Equipment Material: |
high quality SUS304
|
Sterilization methods: |
sterilization casing
|
Heating device: |
external steam
|
Equipment cleaning: |
standard power pump
|
Materials temporary storage tank: |
30 ~ 50 liters
|
Sterilization time: |
customers make their own determination
|
Material flow: |
300-1500L / H
|
Minimum feeding amount: |
50L
|
Highest sterilization temperature: |
130-142
|
