Ultra high-temperature instant sterilizer,China JS price supplier

Ultra high-temperature instant sterilizer

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $3,100 - 4,500 / Set

Update Time:2014-09-18

Contact Supplier

Product Description

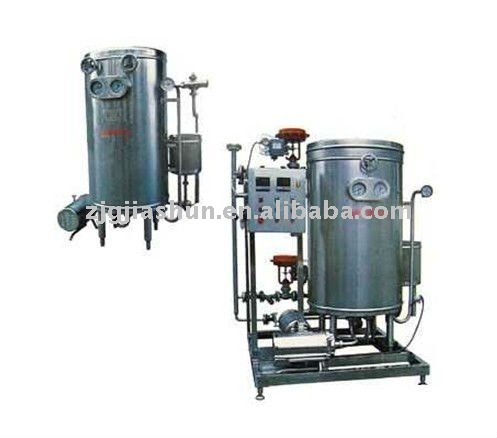

Ultra high-temperature instant sterilizer
1.high eficiency
2.competitive price
3.energy saving
4.easy to operate

Detailed Product Description

This machine is high efficiency, energy saving and easy to operate.
The heat exchanger of this equipment adopts bushing structure.
It is high efficiency, energy saving and easy to operate.
As material is heated for short time, the loss of nourishment is little.
This machine is widely used for liquids sterilization, such as fresh Milk, sauce, drink, wine and so on, as well as for soya-bean milk or liquid medicine.
If matched with viscolizer, it may also used for high-viscidity material, like Sugar beat, concentrated milk and so on.

Fectures

Processing capacity: 1∼4t/h

Sterilization temperature: 115~145

Time of heat preservation: 4-6S

Control mode: manual control, auto control.

Main technical parameters

Model	Unit	SG-UHT-1/S	SG-UHT-2/S	SG-UHT-4/S
Output	T/h	0.7-1	1.5-2	3.5-4
Input temperature	°C	<65	<65	<65
Sterilizing temperature	°C	115-145	115-145	115-145
Sterilizing time	Second	4-6	4-6	4-6
Input pressure	MPa	0.8	0.8	0.8
Consumption of steam	Kg	0.15	0.15	0.15
Motor power	Kw	2.2	3	4(6)
Dimension (LWH)	mm	13149251650	150010501800	175013502000

Processing:	Sterilizer	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	JS
Model Number:	UHT	Processing Types:	liquid materials	Material:	SUS304
Colour:	sliver-withe	Weight:	480KG	Package:	PE film+fumigation-free wooden case
Certificate:	ISO9001 and CE	Condition:	New	Delivery time:	within 30 days after receiving all payment
Payment terms:	T/T,L/C,Western Union,Etc.

Company Profile

Name: Zhangjiagang Jiashun Machinery Manufacturing Co., Ltd.

Main Products: water monoblock machine,juice production line,barrels water machine,labeling machine,water treatment

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2008

Main Markets: Western Europe, Southeast Asia, Eastern Europe, South America, North America

Address: changxinxilu

Zhangjiagang Jiashun Machinery Manufacturing Co., Ltd. was established in 1993 and located in Zhangjiagang EDZ, near Shanghai. Our company is one of the leading China manufacturers of beverage equipment. We have about 110 employees, including 12 researching and developing technicians. Our company covers an area of 15000 square meters and has USD2.5 million assets. We are a professional equipment manufacturer specializing in beverage machinery, filling machinery and beverage production lines. Our businesses include development, research, design and manufacture of advanced beverage machines. We treat market as guide, technology as the spigot, quality as main line and after-sales service as the reliable guarantee.

Our main products are water treatment systems, mineral water & pure water production lines, full-automatic blowing bottle machines, carbon acid beverage filling systems, wine filling production lines and barrel filling lines of 3-5 gallons. Our products with good quality are not only salable in 29 provinces, cities and autonomous regions in China, but also exported to more than 10 countries and regions, such as Greece, Mexico, Russia, Malaysia, Indonesia, the Philippines, Vietnam and Libya.

We follow the ISO9001:2000 international quality management system and have established and perfected the quality guarantees systems which ensure the quality and performance of our products. The main technology of our manufacturing are form Italy, Germany, Switzerland, Southeast Asia and Russia.

Besides manufacturing and exporting filling equipment, we can undertake the turnkey projects of 3000-36000BPH pure water & mineral water filling systems, 3000-36000BPH carbon dioxide beverage filling systems, 3000-36000BPH hot filling production lines, 9000-18000BPH pop-pop cans production lines, 3000-24000BPH yellow wine and grape wine production lines, 5000-40000BPH beer production lines and 120-2000 BPH 3-5 gallon barreled water filling lines.

We sincerely hope to develop and cooperate with everybody from all over the world, and establish long-term and stable operation relationships finally with each other. We sincerely welcome the presence of old and new friends. more
