Corn Starch Flash Dryers
application: powder/ food processing
material: Q235, Q345, Q304, Q316
Flash dryer name:
air flash dryer, flash dryer machinery, spin dryer, mini spin dryer, agitation flash dryer, flash dryer for dye, flash dryer for dyestuff, flash dryer for filter cake, flash dryer for paste, flash dryer for press cake, flash dryer for slurry, flash drying dehydrator, high moisture flash dryer, industrial spin dryer, portable spin flash dryer, single tub spin dryer, smashing flash dryer , spin dryer dewatering machine, spin dryer machine, stirring flash dryer
Principle
Hot air enters into stirring and crushing and drying chamber from the bottom of drier with suitable spouting speed. It exerts strong shearing, blowing, floating and rotating effect. It strengthens the process of heat and mass transfer. At the bottom of drier, the large and damp granule is crushed under the action of stirrer and the granule that is small in particle and contain less moisture will lift accompanied with revolving air steam. During the period of lift, it is dried further. Because gas and solid two phase flow in rotating and the inertia of solid phase is more than that of gas and the relative velocity between solid and gas phase is large, so it strengthens the process of heat and mass transfer. Therefore the machine has large drying capacity.
Application
Inorganic salt: borax, calcium carbonate, hydroxide, copper sulfate oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metallic salt, synthetic cryolite and so on
Organic compounds: fenatrol (insecticide of agrochemicals), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate and so on.
Ceramics: kaoline, silicone trioxide, clay and so on.
Dyestuff: anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide, zinc sulfide, all kinds of intermediate of azo dye stuff, soap, washing powder, milk
Foodstuff: soya protein, agglomerative starch, less, tritcin, wheat starch, methionine and so on
Technical Parameters of corn starch flash dryers
| Item | Model | Inner Diameter(mm) | Air volume(cubic meters/h) | Evaporation capacity(kg/h) | Power(kw) | Max. heigth (m) | Land area(square meters) |
| flash dryer | XSG-2.5 | 250 | 500-800 | 23-30 | 9.55 | 4 | 15 |
| flash dryer | XSG-4 | 400 | 1150-2300 | 58-73 | 21.4 | 4.6 | 27 |
| flash dryer | XSG-6 | 600 | 2500-5100 | 130-163 | 34.2 | 5.5 | 39 |
| flash dryer | XSG-8 | 800 | 4500-9000 | 238-297 | 63.5 | 6 | 40 |
| flash dryer | XSG-10 | 1000 | 7000-13500 | 345-430 | 68 | 6.5 | 55 |
| flash dryer | XSG-12 | 12000 | 10000-20000 | 515-645 | 94 | 6.8 | 62 |
| flash dryer | XSG-14 | 1400 | 16600-28000 | 730-910 | 130 | 7 | 69 |
| flash dryer | XSG-16 | 1600 | 18000-38100 | 962-1203 | 160 | 7.2 | 160 |

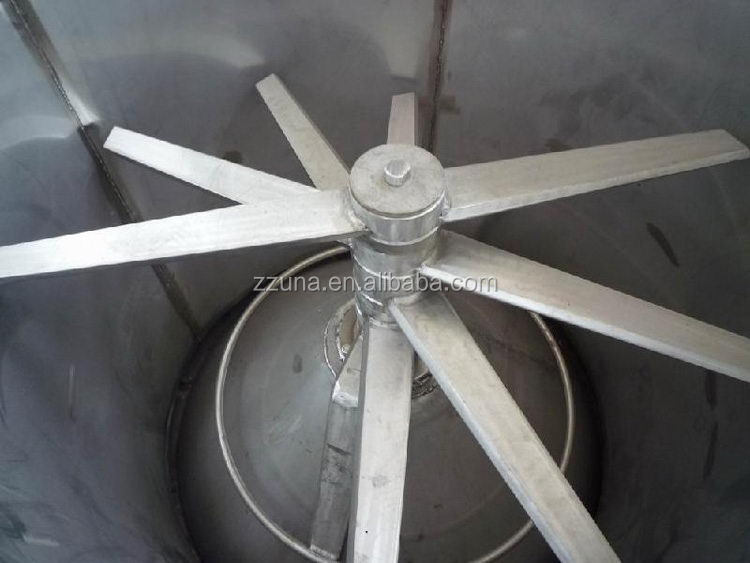

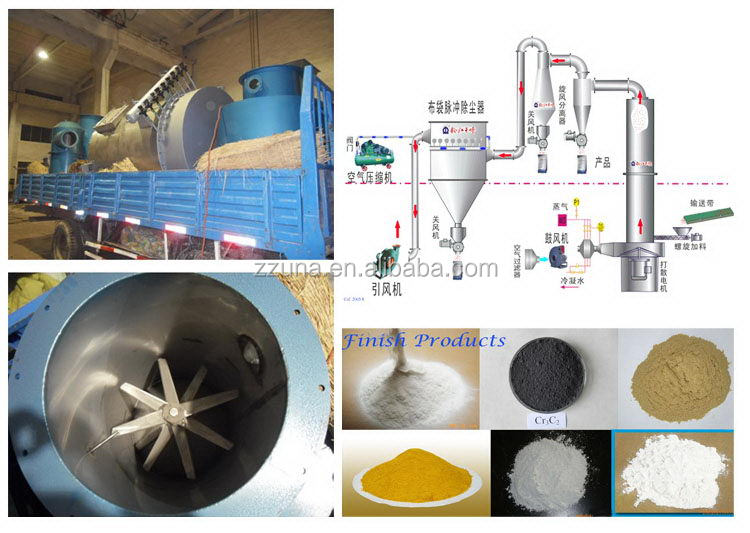

Detail photos of corn starch flash dryers:
1. material name?
2. material size and characteristic
3. initial moisture? %?
4. final moisture? %?
5. processing capacity? (kg/h, t/h)
6. heating source ?
More questions Please contact:
corn starch flash dryers
| Condition: |
New
|
Type: |
Flash Drying Equipment,spin type/ rotary type
|
Place of Origin: |
Henan China (Mainland)
|
| Brand Name: |
UNA
|
Model Number: |
XSG-4
|
Voltage: |
220v, 380v, 415v
|
| Power(W): |
9.55KW
|
Dimension(L*W*H): |
1.2*2*5m
|
Weight: |
8tons
|
| Certification: |
SGS CE ISO
|
Warranty: |
2 years
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Name: |
corn starch flash dryers
|
Other name: |
Una most popular corn starch flash dryers
|
application: |
egg powder, metal powder, powder, dye
|
| material: |
Q235, Q345, stainless steel
|
Evaporation capacity(kg/h): |
23-30
|
voltage and frequency: |
220V, 380v, 415v, 50hz, 60hz
|
| over sea installation: |
yes, available
|
series: |
XSG
|
