used mineral water/juice bottle filling machines,China Beyond price supplier

used mineral water/juice bottle filling machines

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $15,000 - 50,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

used mineral water/juice bottle Filling Machines
1.Variable Speed
2.capacity 8000-10000bph
3.CE SGS

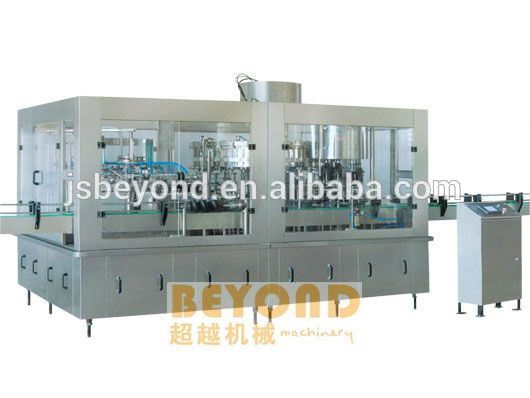

used mineral water/juice bottle filling machines

Introduction

1. RXGF series fully automatic rinsing, filling and rotary capping combined machine.whose main technique was imported from Italy, can realize to asepsis filling.Because it equipped with constant temperature controlling system.

2. It can apply to fill hot frult juice. tea and other beveerage into thermal proof PET bottle by changing few parts.

3. The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure .

4. it is suitable for normal temperature filling or hot filling PET bottled no gas contained Beverages (Mineral water,purified water,distilled water, fruit juie, tea and so on).

5. as well as washing, filling and sealing other liquid, such as vinegar, It achieves 1990"s international advanced level , It is the best choice of taking place of imported one.

Features

(1) Filling valve adopts high precision mechanical filling valve , with the character of no bottle no vacuum pumping.

(2) This machine has lubrication system in order to lubricated regularly in time.

(3) Wine jar and capping head are driven by electricity to fit different sizes of bottles.

(4) The material height in the tank is controlled by electric probe to assure the precise liquid level .

TECHNICAL DATE:

Model	CY12-12-6R	CY16-16-6R	CY18-18-6R	CY24-24-8R	CY32-32-8R	CY40-40-10R
Production capability (bph)(500ml)	3000	4000	5000	8000-10000	10000-12000	13000-15000
Applicable bottle type	Bottle diameter(50-100mm) height(150-320mm) volume(330-1500ml)
Applicable cap shape	Plastic screw cap
Gas source pressure(Mpa)	0.6
Gas consumption(m 3 /min)	0.2	0.2	0.4	0.4	0.5	0.55
Total power (kw)	4.6	4.6	5.4	6.4	8.07	9.56
Total weight (kg)	2500	3200	3800	5200	6500	8000
Dimension(L/W/H)(mm)	2350/1700/ 2150	2600/1830/ 2030	2830/2030/ 2030	3220/2300/ 2600	3450/2510/ 2710	3800/2800/ 2710

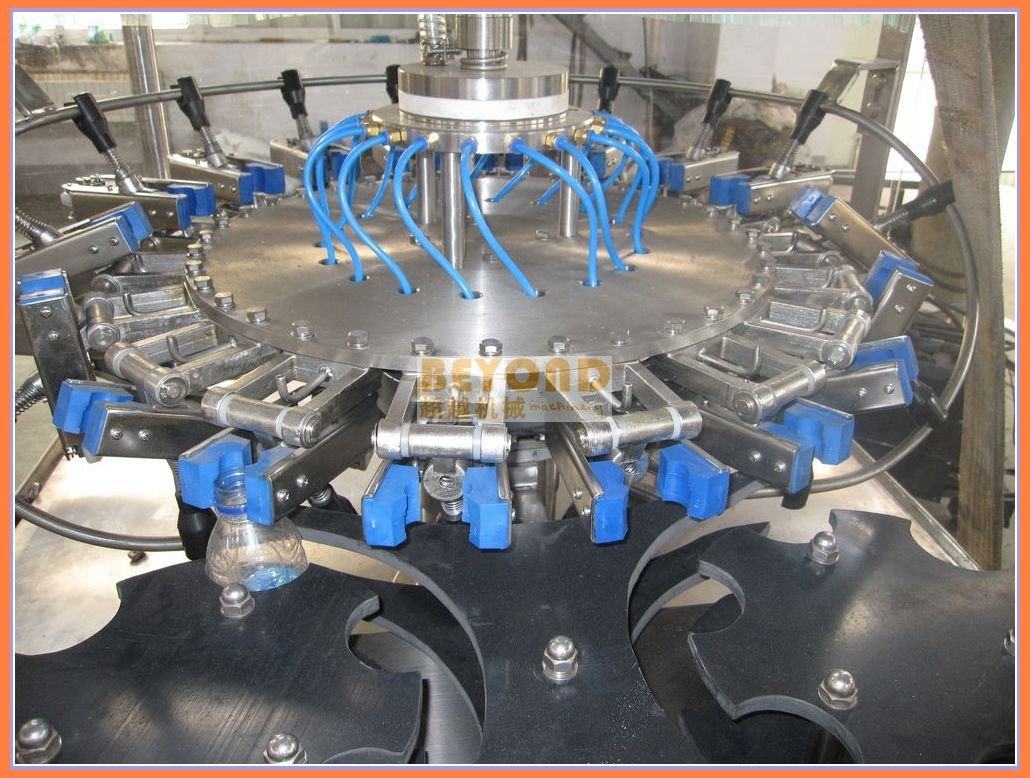

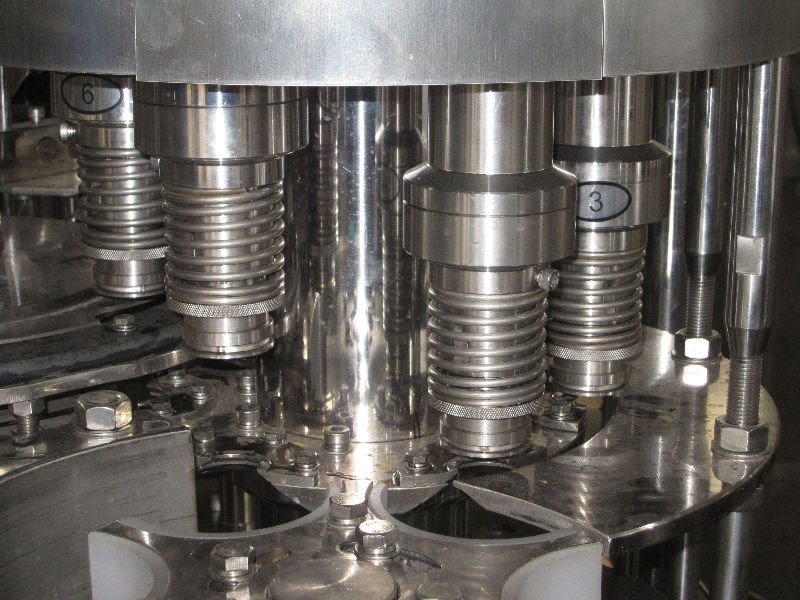

WASHING FILLING .

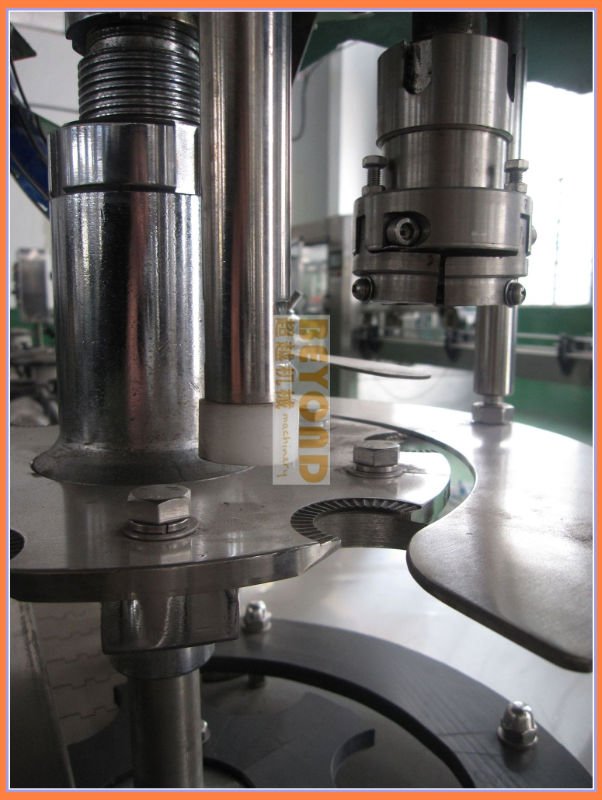

CAPPING

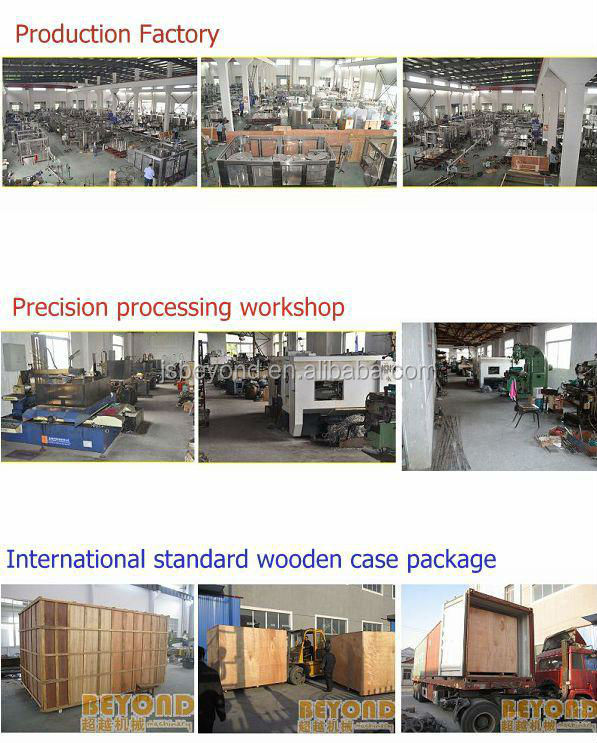

OUR FACTORY AND PACKING

OUR CERTIFICATION

Type:	Filling Machine	Condition:	New	Application:	Beverage,Medical,Machinery & Hardware
Packaging Type:	Cans,Bottles,Barrel,Capsule	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220/380 v or according to customers' requirement	Power:	6.4kw
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Beyond	Model Number:	CY 24-24-8R
Dimension(LWH):	3220/2300/2600	Weight:	5200KG	Certification:	SGS,CE
After-sales Service Provided:	Engineers available to service machinery overseas	Production Capacity:	8000-10000bph	PET Bottle Diameter Range:	50- 100mm
PET Bottle Height Range:	170-320mm	Cap type:	Plastic Screw Cap	Material:	SUS304 stainless steel
Control:	PLC	Air source pressure:	0.6Mpa	Air consumption:	0 .4 m3/min

Other Products

PET water bottle filling machine

coconut juice drink production line

plastic water bag filling sealing machine

Pure water filling and sealing machine

Company Profile

Name: Zhangjiagang Beyond Machinery Co., Ltd.

Main Products: Filling machine,water treatment,packing machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Southern Europe, Northern Europe, Central America, Western Europe, Eastern Asia

Address: sanxing industry park, jinfeng town,

Zhangjiagang Beyond Machinery Co., Ltd. is experienced in beverage filling and packing machinery such as water/juice/cola processing line. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry in China.

For beverage machine, we have the capacity of 2000-40000 BPH for hot filling (juice and tea filling) and mid-temp filling and aseptic cold filling lines; the capacity of 2000-40000 BPH for mineral water and purified water producing line; the capacity of 2000-36000 BPH for carbonated beverage and cold filling producing line; the capacity of 1000-8000BPH for vinegar and alcohol producing line; the capacity of 100-2000 BPH for 1 to 5 gallon barrel producing line; the capacity of 2000-10000 BPH for milk producing line; all kinds of water treatment equipment; PET perform inject and blowing-stretching machine; plate and tube UHT device, and CIP system.

We also carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sales and after-sales service. Our products are sold well around the world.

We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relationships with you in the near further.
