This vegetable Cutting Washing Processing Line includes 4 parts:
1. FC-306 Large Vegetable Cutting Machine
2. Lifting Elevator
3. WA-2000 Vegetable Washer (pre-wash)
4. WA-2000 Vegetable Washer (clean thoroughly)
Parameters & Description:
1. FC-306 Large Vegetable Cutting Machine
Capacity: 800-1500kg/h
Voltage: 220V(single phase)/380(threephase)
Horse Power: 3 hp
Dimension: 1020*760*1370mm
1.This multifunctional vegetable cutting machine can cut leaf vegtable like scallion, garlic,
leek, spinach, celery,Chinese cabbage, and caraway etc. into strip or square slice shape.
2.By changing the ox-horn blades into strip blades, it can cut root vegetables like carrot,onion,
bamboo shoot, lotus, potato, carrot, eggplant, sweet potato, taro, and radish etc. into strip
shape.
3.Though adjusting the speed of knife and belt by excact inverter, the cutting size can be
changed according to clients' needs.
2. Lifting Elevator
Voltage: 220V/50hz/Single Phase
Dimension: 1500*660*1330mm
It can help lift vegetables after cutting to the Vegetable Washing Machine, saviing lots of labor cost.
3 & 4 . WA-2000 Vegetable Washer
Capacity: 1000-1500kg/h
Voltage: 380V/50HZ
Air pump power: 3.75kw
Cycle pump power: 3kw
Dimension: 3400*1160*1480mm
1.It uses bubble, cycle surfing,high pressure spray washing way combinations, to make the
vegetables get a full range of thorough cleaning;
2.After washing, vegetable or fruit will go through an elevator, and at the same time, high
pressure spray will wash the them again.
3.Flow adjustment valve next to the machine can control the materials foward speed, easy operating.
Hearty service
1.Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operating video & instruction will be sent to clients, to help them better use the machines.
3.Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
Related Items
Packing: by standard export fumigated plywood case, well protected while shipping
Delivery Time: 2~3 workdays after receiving payment
Port of loading: Guangzhou/Shenzhen, China
Brand: Feng Xiang
Guarantee: One Year
MOQ: 1 set

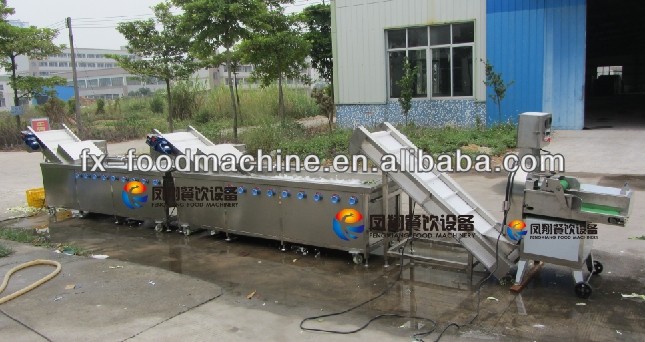

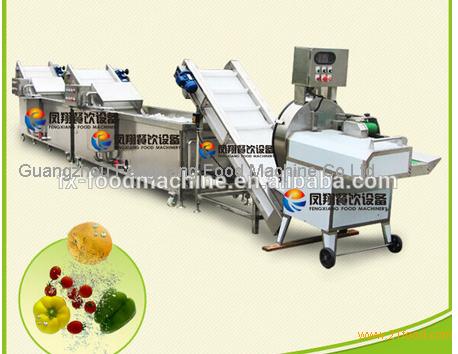

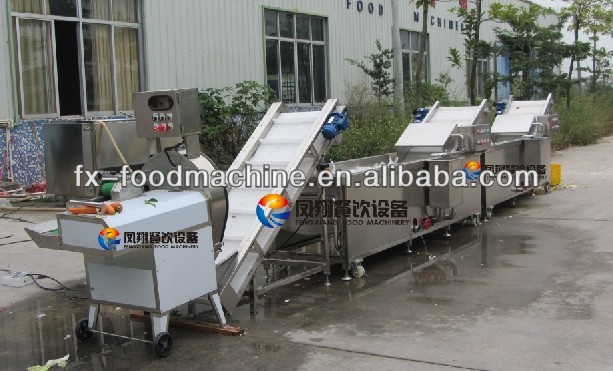

More photos of the Vegetable Cutting Washing Processing Line:
