fruit vegetable processing machines features:
1.Patent in core technology
2.Top brand components
3.Touch screen operation
Working Principle:
Vacuum cooling works by rapid evaporation of water from certain vegetables or other products under very low atmospheric pressures inside a vacuum chamber. Energy in the form of heat is required to change water from a liquid to a vapor state as in the boiling of water. At reduced atmospheric pressure in a vacuum chamber water boils at a lower than normal temperature.
Heat is required to boil or evaporate water. In vacuum pre-cooling this heat comes from the product being cooled. This includes field heat and heat from its respiration. The amount of water removed is roughly 1% of the initial product weight for each 10°C that it is cooled. Generally the moisture comes equally from all parts of the product being cooled and localized wilting is not a problem.
Vacuum Cooler Features:
1. Retain freshness and nutrition
2. Prolong preservation time and shelf-life
3. Fast cooling speed and uniform cooling,normal 20 to 30 minutes cooling duration for each cycle
4. Restrain and kill bacteria and animalcule,no pollution
5.Evaporated water id about 2 to 3% of total goods weight,no localized wilting.
For fruits (like strawberries) and mushrooms, it is most important that the produce is cooled down very shortly after harvesting. Fresh cut flowers are a different field of application. Special systems adapted to processing aircraft containers have been made successfully in the past.
For pre-cooked convenience food special (stainless steel) vacuum cooling systems are needed in order to preserve quality and taste.

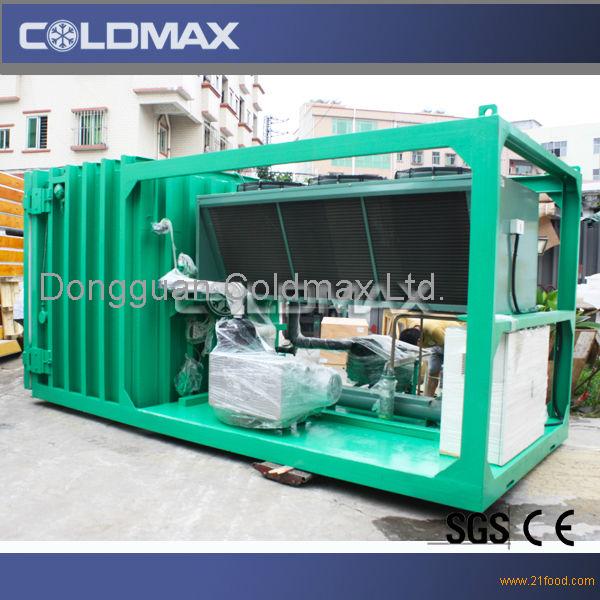

Components
The size of the chamber is defined by the amount of pallets you want to cool at the same time, and their individual dimensions. The size of the chamber will decide the number of vacuum pumps to be used. The (2-stage) Chinese DLT pumps excel in their sample but effective construction, and are very efficient in usage.
The evaporator (water catcher, special 'ColdMax ' technology, patent pending!) inside the vacuum chamber condenses the water vapour, and ensures only dry air leaves the vacuum chamber towards the pumps. Outside the chamber, the cold medium (R 404a) is cooled down by a refrigeration system. The compressor needed for this heat exchange process is supplied by bitzer (Germany) or by Hanbell (Tainwan).
Three types of condenser systems can be chosen for cooling down the cold medium:
Standard Models & Basic Specs
Our standard range consists of models for 1 up to 10 pallets, and produce weight ranging from 250 to 4,000 kg. The number of pallets defines the chamber dimensions, and the number of vacuum pumps needed to create the vacuum.
| Product Range | ||||||
| Inside Dimensions | Vacuum Pump Power (Kg) |
Product weight (Kg) |
Cooling Capacity (Kw) |
Compressor Power (Kg) |
Total Power (Kw) |
|
| 1 Pallet | 1400*1400*2200 | 8 | 300-500 | 57 | 25 | 36 |
| 2 Pallets | 2700*1400*2200 | 15 | 300-500 700-1000 |
57 77 |
25 33 |
44 52 |
| 3 Pallets | 3500*1400*2200 | 15 | 700-1000 1100-1500 |
77 118 |
33 53 |
52 73 |
| 4 Pallets | 4500*1400*2200 | 15 15 15 |
700-1000 1100-1500 1500-2000 |
77 118 163 |
33 53 59 |
52 73 79 |
| 6 Pallets | 6500*1400*2200 4000*1800*2200 |
23 23 23 |
1100-1500 1500-2000 2200-3000 |
118 163 224 |
53 59 82 |
73 87 110 |
| 8 Pallest | 5300*1800*2200 5300*2200*2200 (Flat Rack, only USA) |
30 | 1500-2000 2200-3000 3000-4000 |
163 224 293 |
59 82 102 |
94 117 137 |
| 2 Aircraft Pallets | 7000*2900*3350 | 45 | 2200-3000 | 224 | 82 | 132 |
COLDMAX is the leading Asian supplier of vacuum coolers, cold room installations and (flake) ice machinery , with a wide experience in the market place and a production capacity of up to 80 (vacuum ) cooling systems per year! COLDMAX has a very strong focus on quality and innovation, and uses in-house developed evaporator (water vapour catcher, the heart of the vacuum cooler) for optimal cooling speed at minimal energy consumption.
COLDMAX is the leading Asian supplier of vacuum coolers, cold room installations and (flake) ice machinery, and irrigation systems, with a wide experience in the market place and a production capacity of up to 100 ( vacuum ) cooling systems per year! COLDMAX has a very strong focus on quality and innovation, and uses in-house developed evaporator (water vapor catcher, the heart of the vacuum cooler) for optimal cooling speed at minimal energy consumption.
Focusing on the preservation industrial, our company, COLDMAX, was founded in 2002, in the past 12years, we have been striving for solving difficult and strive problems in this field. And now COLDMAX which has come through many challenges is becoming more and more mature and professional. Until now, we have achieved nine national patents and one CE certificate, successfully developed our own water vapor catcher for vacuum cooler.
COLDMAX is quickly building up a reputation in export markets like the
