It is a form-fill-seal type machine, which produces airtight packages with three seals starting from a reel of plastic heat-sealable packaging material.The machine is suitable for packaging granular or powdered products, with special attention to the aesthetics of the package.
Special Features(Vertical form fill seal)
1.English and Chinese screen display ,operation is simple .
2.PLC computer system , function is more stable , adjustment any parameters not need stop machine.
3.t can stock ten dispose , simple to change variety.
4.Servo motor drawing film , position accurately.
5.Temperature independent control system ,precision get to±1°C.
6.Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
7.Packing type diversification , pillow sealing, standing type ,punching etc.
8.Bag–making , sealing, packing, print Date in one operation.
9 Work circumstance quiet, low noise
Technical parameters:
| Bag length |
80-4300mm(L) |
| Bag width |
50-250mm(W) |
| Max width of roll film |
520mm |
| packing material |
OPP/CPP,OPP/PE,PET/PE |
| Packing speed |
5-60bag/min |
| Measuring range |
3000ml |
| Air consumption |
0.65mpa |
| Gas consumption |
0.3 m2/min |
| Power voltage |
220VAC/50HZ |
| Power |
4KW |
| Dimension |
(L)1150mm×(w)1795mm×(H)1650mm |
| Deadwight of machine |
540kg |
Applications:

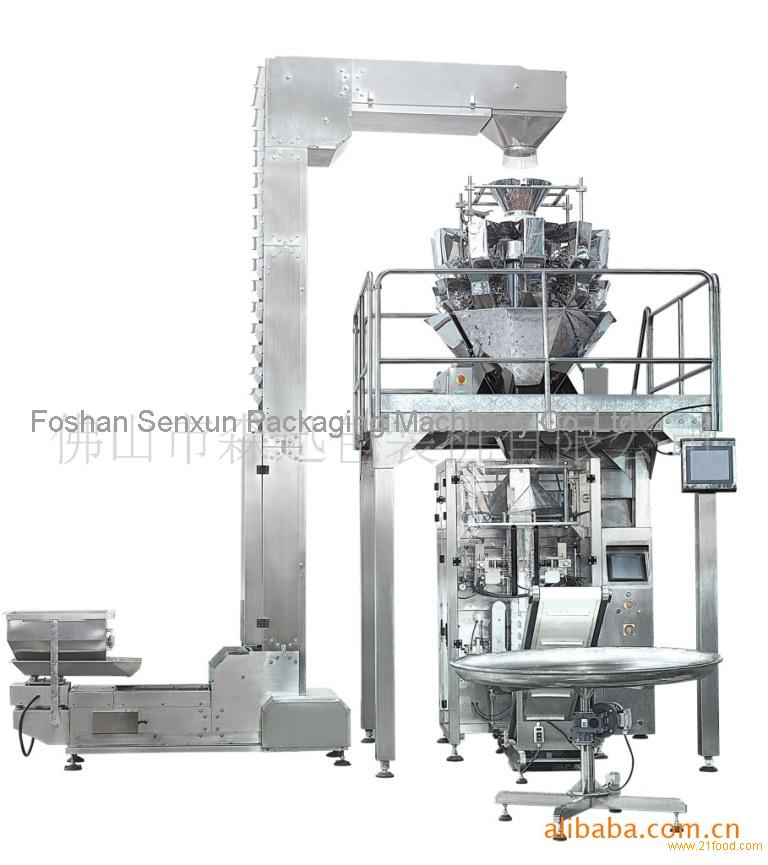

Granule Packaging solution : VFFS+Multihead weigher
Package example:Pasta packing
Package example:Corn packing
Package example:Chips packing
Package example:Candys packing
Package example:Nuts packing
Foshan SAMSON Packaging Machinery is a manufacturer and meets all the flexible packaging requirements of the food and non-food industries.Produces a complete range of horizontal flowpack machines, vertical form fill and seal, multihead weighers and automatic packaging lines to meet all your packaging needs.The samson packaging machines are capable of producing different types of packages, providing a wide range of cutting-edge solutions that fit any different need and application.
We insists in the concept of"focus on clients and high quality".Our packaging machine is widely applied to packaigng food,medical health,chemical,commodity with the characteristic of reasonable design,Sophisticated product,easy operation, superior quality etc.In the past few years,we constantly absorb advanced techniques from home and abroad,keeping innovation,devoting ourselves to provide element and high quality packaging machine to our clients which bring more profits to our clients.
|
|
|
|
|
|
|
|
|
|
|
|
