Specifications
WHIII-F300 Automatic COCOA POWDER Packing Machine
1.PLC CONTROL
2.Auto making bag ,counting, filling,sealing
WHIII-F300 Automatic Cocoa Powder Packing Machine
Specifications:
WHIII-F Series Automatic powder packing machine adopts microcomputer to control the length of the bag, copulate photo electric and helix-falling.,It control by PLC for making bag ,counting, filling, sealing,coding and cutting, it fits for 100-300MU powder.
| MODEL | WHIII-F300 |
| bag length (mm) | 50-300 |
| bag width (mm) | 70-190 |
| Packing film width (mm) | 160-380 |
| capacity (bag/min) | 30-60 |
| volume (ml) | 50-500 |
| power (kw/V) | 2.15 |
| air (MPA) | 0.65 |
| Air consumption (L/MIN) | 100 |
| size (L×W×H) (mm) | 900*1110*2100 |
| weight (kg) | 500 |
2.Details
WH III-F Series Automatic powder packaging machine adopts microcomputer to control the length of the bag, copulate photo electric and helix-falling.,It control by PLC for making bag ,counting, filling, sealing,coding and cutting, it fits for 100-300MU powder.

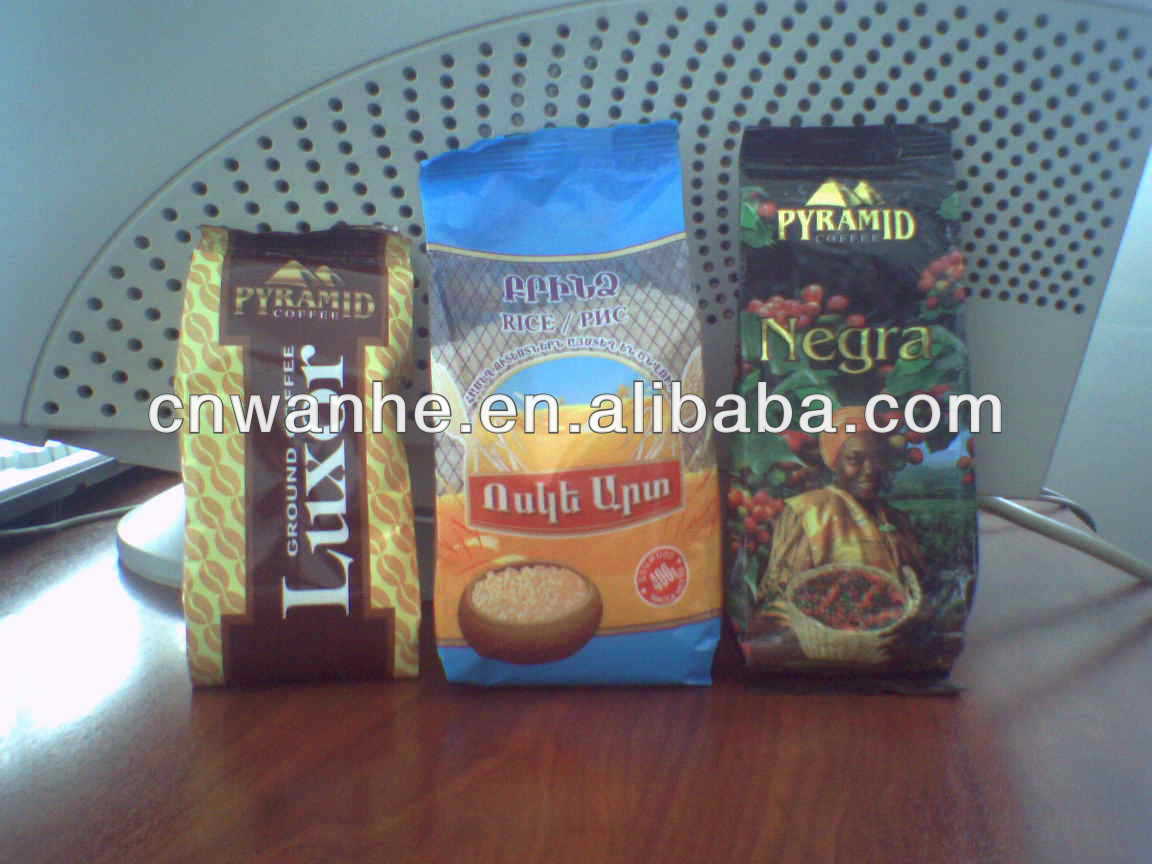

3.Sample picture
| Type: |
Other,Automatic Cocoa Powder Packing Machine
|
Condition: |
New
|
Application: |
Beverage
|
| Packaging Type: |
bags
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
2.15KW
|
| Place of Origin: |
Zhejiang China (Mainland)
|
Brand Name: |
Wanhe
|
Model Number: |
WHIII-F300
|
| Weight: |
500KGS
|
Dimension(L*W*H): |
900*1110*2100
|
Certification: |
CE
|
| After-sales Service Provided: |
Overseas service center available
|
operation: |
easy to open
|
sealing type: |
pillow type,pillow type
|
| max.width of film: |
610MM
|
PLC control: |
Touch screen
|
