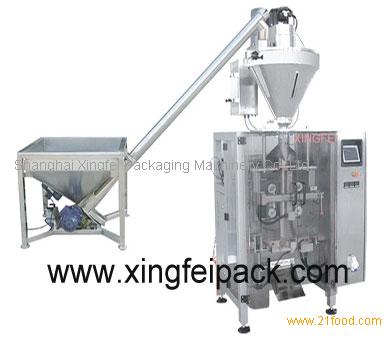

XFF-L Automatic Vertical Powder Packing Machine
I. Application:
This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as Milk tea, monosodium glutamate, solid beverage, sugar, Grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
II. Main performance and functional characteristics:
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center，which maximize the whole machine’s control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.
III. Technical Parameter
| Measure method | Auger dosing |
weighing feedback tracking |
| Bag-making size |
(W)70-200mm (L)100-300mm |
(W)100-250mm (L)100-350mm |
| Filling weight |
10-5000g |
10-5000g |
| Packaging precision |
≤1% |
|
| Packaging speed |
25-60bag /min |
|
| Power supply |
Three phase 380/220V 50-60 Hz |
|
| Power |
6 kw |
|
| Pressure |
6-8 kg/c㎡ |
|
| Use tolerance |
0.2m3/min |
|
| Weight |
700kg |
950Kg |
| Dimension |
1300×1500×2600mm |
|
????Shanghai Xingfei Packaging Machinery Co, Ltd. is professional manufacturer on research and developing the packaging machinery and food machinery, and it is the member of the Chinese Food and Packaging Machinery Industrial Association.
Our potential customers are the middle and advanced enterprise form mainland and international market. The Packaging machinery, food machinery, and packing production line have be sold not only in the mainland Of China but also more than thirty foreign countries, such as USA, Germany, Holland, Canada, Australia, New Zealand, Finland, Russia, Ukraine, Kazakhsta, Thailand, Vietnam, South Africa, etc. Based on the straight-out management notion, outstanding qualified products, and favorable after sell service, we have gained extensive recognition from home and abroad and build the long term relationship.
????Since our company is set up, we have used the European and Japanese advanced experience for reference and have developed several kinds of top-grade vertical packaging machinery, horizontal packaging machinery, packing equipment used for different granule, powder and liquid, and other assistant packaging machinery. We also can supply the layout of the automatic packing processing line. If you choose “XINGFEI”, you choose rest assured feeling.
????Our company is willing to cooperate with people from all circles and develop together and contribute our ability to make the Chinese packaging machinery and food machine move towards the world. At the same time, people from home and aboard are warmly welcomed to our company to give us suggestion. By the tenet of close cooperation and mutual benefit, we would like to build a new future with you
