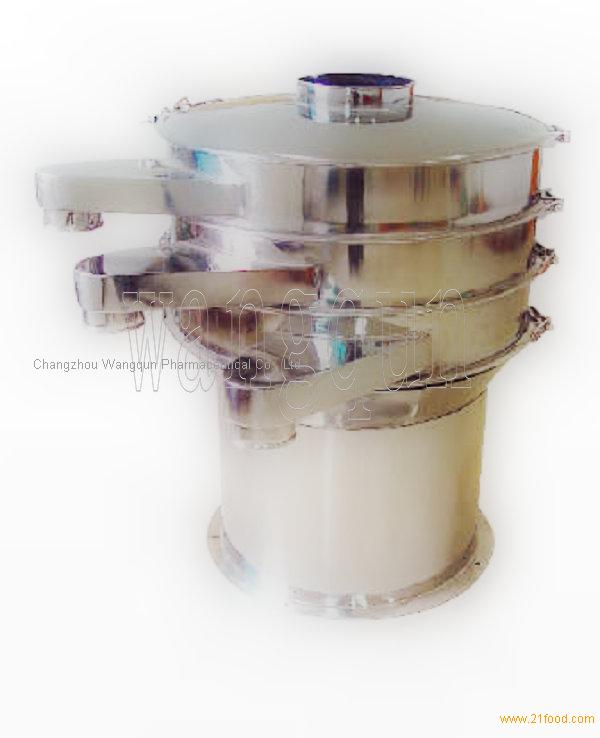

XZS SERIES VIBRATION SIEVE

FOB Price:Price can be negotiated

Production Capacity:FOREVER

Payment Terms: RMB 9000

Update Time:2010-08-06

Contact Supplier

Product Description

Main Application

The machines are suitable for line production, and is a perfect equipment used for continuous screening of granules of different granularity.

Characteristic

The machine consists of hopper, vibrating chamber, connecting shaft, and electric motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibrating chamber. When the adjustable eccentric weight passes the center of main shaft under the driving force of motor, it may generate centrifugal force under imbalanced state, therefore, mandatorily force materials to form volution inside the sieve. The vibration of the weight regulator is adjustable according to the type of materials and the sieve mesh. The machine has many advantages , such as compacted structure , small volume , dust free , low noise , high output , energy saving and easy mobility and maintenance .

Technical Parameters

Model

XZS-350

XZS-500

XZS-600

XZS-800

Production Capacity(kg/h)

60-500

60-1300

180-2000

150-2000

Number of Mesh(mm)

12-120

12-120

12-120

12-250

Vibration Force (KN)

2

3

5

8

Power(kw)

0.55

0.75

1.5

0.75

Speed(r/min)

1380

1370

1370

1500

Overall Size(mm)

540*540*1060

710*710*1290

880*880*1350

1100*950*1150

Weight(kg)

100

180

250

320

Other Products

XZS SERIES VIBRATION SIEVE

Company Profile

Name: Changzhou Wangqun Pharmaceutical Co., Ltd

Main Products: single tablet press,rotary tablet press,crusher,mixer,dryer,granulator,feeder, vibration sieve, vacuum cleaner

Business Type: Manufacture

Total Employees: < 20

Address: xishan road No.9 xinbei zone changzhou

Changzhou WangQun Pharmaceutical Machine Co.,Ltd is founded in 1984,meanwhile our company earlier passed the ISO9001: 2000 international quality management system certification standards in the same industry.The main products: ZP series Rotary type (hydraulic type) tablet press machine, crushing equipment, drying equipment, screening equipment, mixing equipment, YK series of particle machine and charging equipment and all kinds of molds, accessories. Products are widely used in pharmaceutical, electronics, chemical and food and so on. Products are best-sold in TaiwanProvince of the country, and including more than 20 provinces and cities, and exported to exported to Bulgaria, France, Spain, Africa, and Asia, well received by the user's trust and praise.

Model	XZS-350	XZS-500	XZS-600	XZS-800
Production Capacity(kg/h)	60-500	60-1300	180-2000	150-2000
Number of Mesh(mm)	12-120	12-120	12-120	12-250
Vibration Force (KN)	2	3	5	8
Power(kw)	0.55	0.75	1.5	0.75
Speed(r/min)	1380	1370	1370	1500
Overall Size(mm)	5405401060	7107101290	8808801350	11009501150
Weight(kg)	100	180	250	320
