Y201D Oxygen transmission rate analyzer,China GBPI price supplier

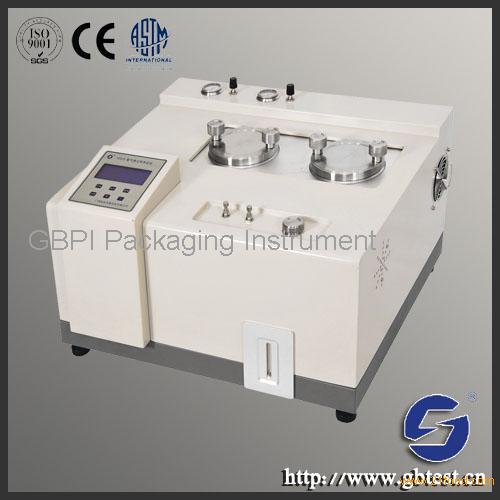

Y201D Oxygen transmission rate analyzer

FOB Price:Price can be negotiated

Update Time:2022-09-05

Contact Supplier

Product Description

Introduction

This tester is applicable for testing the oxygen permeability in air or pure oxygen of plastic films, sheets and plastic bottles and bags etc. packaging

containers;

It adopts Coulometry theory;

Execution technical standard: GB/T 19789-2005, ASTM D 3985-1995, ASTM F 1927-1998, ASTM F 1307-1990, YBB00082003, ISO 15105-2:2003, DIN 53380-3-1998, JIS K-7126 etc.

Testing principle

It is made according to the Coulometry theory. Coulometry is a popular international testing theory.

The testing chambers including upper and nether parts, the sample film is fixed between the two chambers, the high pure oxygen (O2) circulate in the upper chamber of the film, and the high pure nitrogen (N2) circulate in the nether chamber of film, the oxygen molecules get through the film and spray to nitrogen in the nether chamber, and brought by the flowing nitrogen to the sensor, and the tester then analyze the oxygen concentration as what the sensor tested and calculate the oxygen permeation quantity. But for the packing containers, the nitrogen circulate in the bottle and the air or oxygen circulate ouside the container .

Technical Parameters

1) Testing range : 0.02~ 16500 cm 3 / m2/ day (with largen the test chamber, the max testing range can reach : 260000cm 3/m2 · day)

2) Testing accuracy : 0.001 cm 3 / m2/ day

3) Temperature range : 5~ 50 ℃

4) Temperature control accuracy : ± 0.01 ℃

5) Humidity range : dry degree= 0 ﹪ RH ， humidity=5~95%RH ， 100%RH

6) Humidity control accuracy: ±1%RH

7) Specimen size: Φ 80mm ， transmission area 50.24cm 2 (area no state in the internatioal standard)

8) Specimen quantity: 2 pcs

9) Specimen thickness: ≤ 2mm

10) Testing environment: in room temperature ( 23 ℃ ）

11) Pressure: 0.2-0.3Mpa

12) Cut gas interface: 1/8 inch

Features

It adopt international advanced electromagnetic temperature control

Other Products

W 301 type Water Vapor Permeation Analyzer

W 320 type Water Vapor Permeability Analyzer

W 303 type Water Vapor Permeation Analyzer

N 500 Gas Permeation Analyzer
