YB-100 Automatic Chocolate Bar Packing Machine /0086-13564392707,China YB price supplier

YB-100 Automatic Chocolate Bar Packing Machine /0086-13564392707

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month according to cu

Payment Terms: US $4,100 - 4,750 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

YB-100 Automatic chocolate bar Packing Machine
1.Adopt PLC
2.Color touch screen
3.Max speed:220pcs/min
4.CE&best service

-------- YB-100 Automatic Candy Bar Packing Machine ----------

Usage for cand bar packing machine:

Applicable for packing card, wet tissue, spoon, toothbrush, soap , slipper, scourer ball, syringe, hardware and commodity and so on.

Function for candy bar packing machine:

1. With PLC control, high sensor photoelectric color chart tracing .

2. The bag length need not be set, machine could detect it automatically.

3. High performance machine, simple operation and high packing speed.

4. Gear system besides double frequency converter controller.

5. Color touch screen, all touching parts are made of SS304.

Technical Parameters for candy bar packing machine:

Model	YB-100
Packing speed	30-220 bags/min
Width of film	90-220mm
Making bag size	L65-160mm; W30-100mm; H5-35mm
Total Power	2.7kw
Power supply	1 Ph. AC220V, 50/60Hz
Machine Size	L4000X W950X H1600(mm)
Net weight	400kg

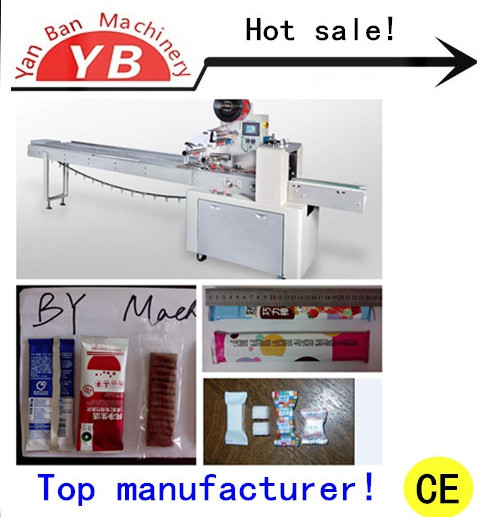

Machine photos for candy bar packing machine:

Samples:

Our Client Visit:

Type:	Other	Condition:	New	Application:	Machinery & Hardware
Packaging Type:	compoist film	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-100
Weight:	400kg	Dimension(LWH):	L4000X W950X H1600(mm)	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	life:	5-10 years	seal type:	pillow bag
system:	gear system	Width of film:	90-220mm	controller:	PLC control
screen:	color touch screen	usages:	candy bar packing machine	making bag size:	L65-160mm W 30-100mm H6-20mm
option:	code printer	warranty:	1 year
