YB-100 Automatic Sachet Chocolate Bar Packing Machine,China YB price supplier

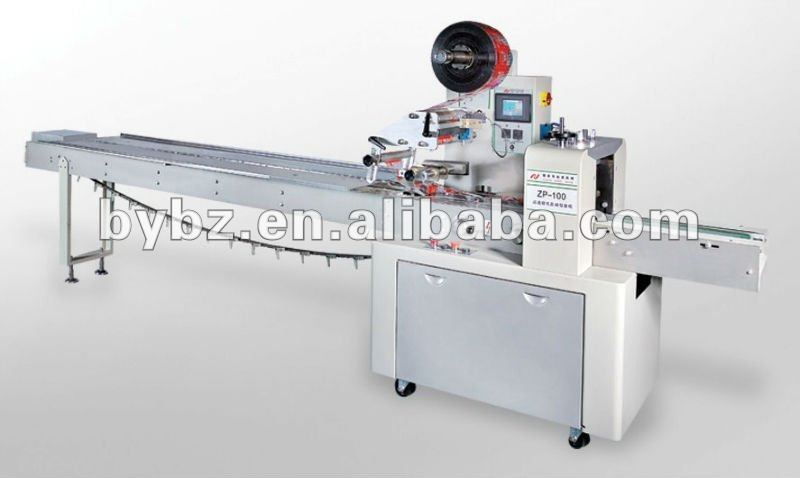

YB-100 Automatic Sachet Chocolate Bar Packing Machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month as request

Payment Terms: US $4,200 - 4,900 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

Automatic Sachet chocolate bar Packing Machinery
1.certificate CE
2.photoelectric tracking
3.easy operation
4.best quality

YB-100 Automatic Sachet Chocolate Bar Packing Machine

♥ Technical parameters:

Model Type	YB-100	YB-300	YB-320
Packing speed	30-220pcs/min	30-180pcs/min	30-180pcs/min
Width of film	90-220mm	90-300mm	90-400mm
making bag size	L65-160mm; W 30-100mm; H5-35mm	L90-240mm; W 30-140mm; H5-40mm	L100-300mm; W 30-160mm; H5-55mm
Total Power	2.7kw	2.7kw	4.1kw
Machine Size	L4000X W950X H1600(mm)	L4000X W1100X H1700(mm)	L4000X W1100X H1700(mm)
Machine Weight	400kg	500kg	550kg
Voltage	220V	220v	220v

Model Type	YB-360	YB-450	YB-503
Packing speed	40-220pcs/min	30-180pcs/min	30-180pcs/min
Width of film	90-360mm	90-450mm	90-600mm
making bag size	L65-190/120-280mm; W50-160mm; H10-40/0-60mm	L130-450mm; W50-180mm; H5-80mm	L120-450mm; W50-240mm; H10-100mm
Total Power	2.8kw	2.6kw	3.6kw
Machine Size	L4020X W720X H1320(mm)	L4020X W820X H1450(mm)	L4200X W1005X H1750(mm)
Machine Weight	800kg	800kg	1100kg
Voltage	220V	220v	220v

♥ Usage:

applicable for packing solid regular objects, such as card, biscuits, chocolate, cake, bread, ice lolly, candy, soap, travel products( soap, toothbrush, slipper etc), commodity, hardware spare parts and polyethylene medical and so on pillow packing.

♥ Function and features:

1. PLC control system, High sensor photoelectric color chart tracing

2. Excellent Performance, simple operation and high-speed packing.

3. Gear system besides Double frequency converter controller, making machine simpler operation and more stable when high-speed working.

4. Color touch screen, highest pillow type packing machine in china!

Type:	Other,Packing Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:	Bags,Film,plastic roll film	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220v	Power:	2.7kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-100
Weight:	400KG	Dimension(LWH):	L4000X W950X H1600(mm)	Certification:	CDE,CE
After-sales Service Provided:	Engineers available to service machinery overseas	control system:	PLC	opration panel:	color touch screen
packing speed:	30-220bags/min	warranty:	1 year	seal type:	pillow seal
machine material:	SS304	width of film:	90-220mm	optional device:	gas filling/date printer
