YB-350 automatci high speed mix Fruit Pop Lollipop making packing &wrapping machine,China YB price supplier

YB-350 automatci high speed mix Fruit Pop Lollipop making packing &wrapping machine
FOB Price:Price can be negotiated
Production Capacity:100 Set/Sets per Month s customers'
Payment Terms: US $8,100 - 8,700 / Set
Update Time:2014-09-25
Product Description

Advanced Automatic Wrapping Machine For Ball Lolipop
1.PLC control
2.speed: 120pcs/min
3.CE certificate
4.code printer

YB-350 Advanced Automatic Wrapping Machine For Ball Lolipop



Features and functions :

1. Ball lollipop packing machine is an ideal choice for packing ball lollipop. It is featured with logical structure, easy operation, and good sealing etc.

2. This machine is mainly composed of automatic sorting device, packing paper color code auto tracking system, standard tongs, lollipop conveyer chain, paper packing device, packing knot, rotating plate device, and heat sealing knotting device.

3. With state-of-art technology, stable performance, and high performance cost rate, this machine not only could reduce labor cost, but also could increase the sanitary standard and packing quality of candy, which could considerably increase the production efficiency of the enterprise.

4. The color code tracking system of trademark corrector is controlled by microcomputer, and featured with correct and reliable operation, coordinated acting on paper feeding, wrapping paper, heat sealing, knotting etc.

5. This machine is good looking, neat and good sealing. The electric control system is equipped with photoelectric tracing circuit. When there is no candy at the start of the machine, the paper would stop at same time so that no paper is wasted.

6. This machine would pack the candy properly even in case of curled paper. With step motor, the paper feeding speed can be changed automatically according to the speed of the machine. With imported converter, PLC, rotary encoder, photoelectric switch and man machine interface, the machine is oriented design, easy operation and convenient repair.



Technical parameters:

Power of main motor

0.75kw  380v

Power of brushing motor

4×60w  380v

Power of paper feeding motor

0.2kw  220v

Heating sealing pipe

0.15kw×6   24v

Air pressure

0.2-0.5Mpa

Output (According to standard shape candy)

1000-2000kg/8h

External dimensions (mm)

2500×900×1500

Weight (kg)

1200

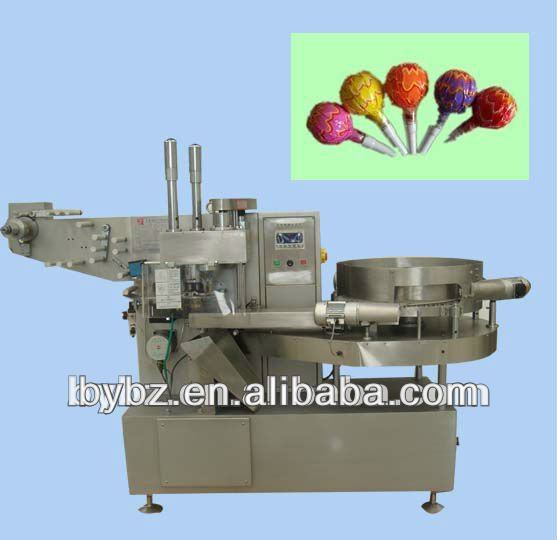

Machine picture and sample:



YB-350 automatci high speed mix Fruit Pop Lollipop making packing &wrapping machine



Welcome to your inquiry!



Please tell us the size of your lollipop .

Type:
Wrapping Machine
Condition:
New
Application:
Food,lollipop
Packaging Type:
plastic bag
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
2.5KW
Place of Origin:
Shanghai China (Mainland)
Brand Name:
YB
Model Number:
YB-350
Dimension(L*W*H):
2500*900*1500mm
Weight:
1200kg
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
operarion panel:
color touch screen
controller:
PLC
production capacity:
1000-2000kg/8h
Power of paper feeding motor:
0.2kw 220v
Air pressure:
0.2-0.5Mpa
Weight (kg):
1200
