Le="font-family: 宋体; font-size: 10.5pt;"> Product Introduction Chinacoal05
1) application for mining ,metal mountain.
2) volume: 55-425m3/min
3) power:2.2-30kw
4) total pressure:380-3500pa
5) axial fan

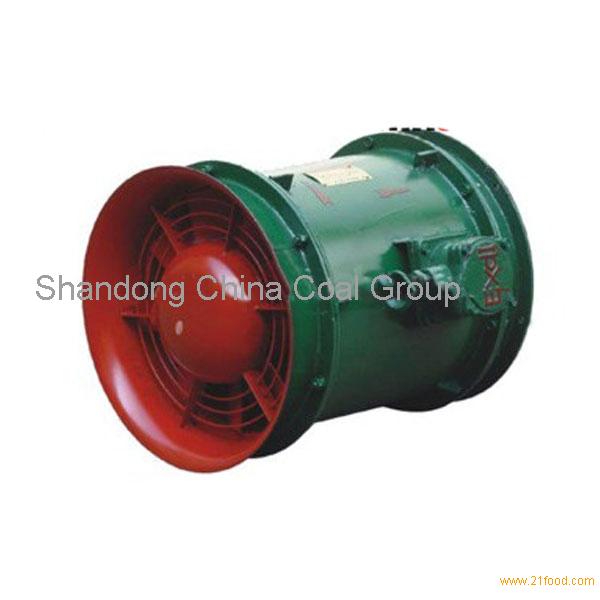

YBT Series Coal Mine Explosion-proof Axial Fan Feature:
This series fan is application for coal mine which has the system of AC 50Hz, voltage to 660v.for the local ventilation of coal mine. This fan also applies for metal mine, chemical mine, tunnel and other factory which need ventilator, delivery the air whose temperature is not higher than 40°C,humidity is less than 97%(25°C) and non-corrosion for gas and no destroyed to insulation.
Main Parameter
| Model
|
Rated Voltage
(V)
|
Rated Current(A)
|
The Motor Power
(KW)
|
Speed
r/min
|
Grade of Impeller
|
Air Volume
(m3/min)
|
All Flow Pressure
(Pa)
|
| YBT32-2
|
380
|
4.7
|
2.2
|
2840
|
2
|
101-55
|
380-960
|
| YBT42-2
|
380/660
|
11.1/6.1
|
5.5
|
2900
|
2
|
180-90
|
800-1700
|
| YBT52-2
|
380/660
|
21.8/12.5
|
11
|
2930
|
2
|
225-145
|
500-2400
|
| YBT62-2
|
380/660
|
35.5/20.4
|
18.5
|
2930
|
2
|
300-195
|
520-2400
|
| YBT62-2
|
380/660
|
42.2/24.3
|
22
|
2940
|
2
|
370-240
|
680-3200
|
| YBT62-2
|
380/660
|
56.9/32.8
|
30
|
2950
|
2
|
425-250
|
800-3500
|
| Model
|
L
|
H
|
D1
|
D2
|
D3
|
Weight
|
| YBT32-2
|
490
|
510
|
300
|
340
|
370
|
61
|
| YBT42-2
|
560
|
615
|
400
|
445
|
475
|
95
|
| YBT52-2
|
560
|
720
|
500
|
540
|
570
|
135
|
| YBT62-2
|
760
|
830
|
600
|
640
|
675
|
200
|
| YBT62-2
|
800
|
830
|
600
|
640
|
675
|
245
|
Shandong China Coal Industrial&Mining Supplies Group Co.,Ltd (hereinafter referred to as china coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China coal is a professional manufacturing base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine construction products with advanced high technology.
