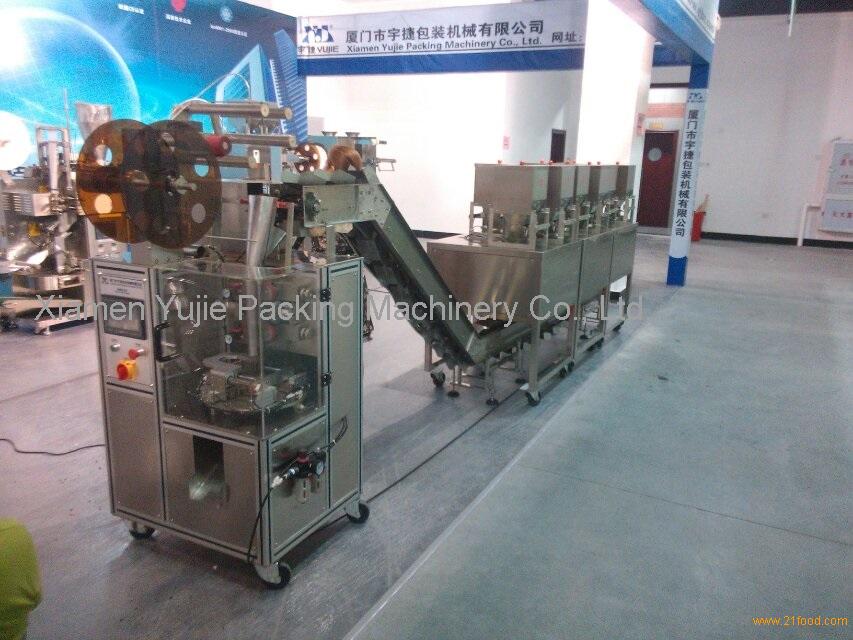

YD-SJB09 Automatic nylon triangle Tea bag packing machine
Applications:
Be used for automatically packing products as green tea ,black tea,flower tea ,health tea,medicine tea,granule and so on .
Functions:
This unit can perform either three sides sealing and triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.
2. packaging capacity :3000bags/h (Determined by packing material)
3. Applicable packing materials:Nylon film with thread and label.
4.The precision volumetric metering way very easily in the transformation of filling material. Electronic scale metering can be collocated according to the material.
5. Human-Computer Interface,Omron PLC control,adopted the Panasonnic double Servo motor to make the bag .supplied complete setting functions.easy operating
6.Main motor overload protection device
7. Packaging material tension automatic adjustment device
8. The machine will automatically stop when Issued the warning.
Technical data
| item |
Content |
| capacity |
30-50bags/Min (Determined by packing material) |
| Filling precision |
≤±2% (Determined by packing material) |
| Bag size |
60-80(W)*40-80(L)mm |
| Packing film |
120mm,140mm,160mm |
| sealing type |
Triangle bag and flat bag |
| Filling range |
2-10ml |
| film thickness |
0.04-0.06mm |
| Packing material |
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials |
| Rolled outer diameter |
≤400mm |
| Rolled paper core inside diameter |
76mm |
| air consumption |
0.6Mpa 0.4m3/min |
| total power |
2.2KW |
| Power |
Single 220V 50HZ |
| air compressor |
less than 1 cube |
| Dimension |
780× 940×1800mm |
Xiamen Yujie Packing Machine Co., Ltd is a professional manufacture who mainly produces variety of automatic packing machine. Yujie has strong power of technology, excellent product quality and outstanding after sales service. That makes Yujie enjoy a good reputation in counterparts all over the country, and also get positive appraisement from clients.
Jujie’s products mainly include three series of automatic packing machines. They are YD, DXD and YJDB. By using them, a lot of processes, such as bags making, filling, sealing, cutting off and automatic trade mark orientation, can be finished automatically. They are multi-function and multi-purpose vertical packing machines, mainly be used in industry of foods, medicine, chemistry, tea and daily chemicals. They can produce little packing bags for things on type of gain, powder, liquid and sauces as well. These machines are with features of accurate measure, firm envelope and beautiful seal. Attached with different measure sealing accessories, they can complete three-side sealing, four-side sealing and back side sealing of pillow type for variety of packing.
Yujie also sells packing consuming material, including filling cotton paper for packaged tea, 100% cotton line of hang tag, label hang tag paper, tea envelop paper, ribbon for code machine, as well as ink wheel and packing belt.
Jujie has several professional technicians to supply to-door service for clients. Our service consists of installation and debugging, maintaining, training and technology consultation before sale and after sale. Yujie also can design, develop, maintain and improve kinds of special packing machine according to clients’demand.
