YongQing S49 series stainless steel materials circular vibrating screen sieve for black pepper and s,China YongQing price supplier

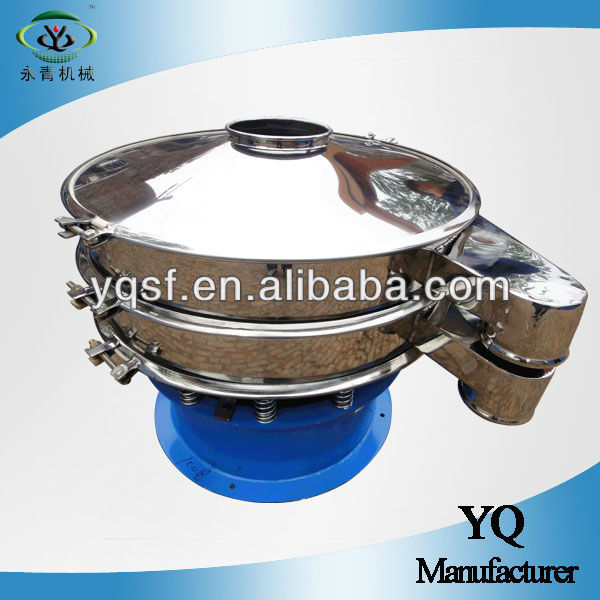

YongQing S49 series stainless steel materials circular vibrating screen sieve for Black Pepper and Seasonings

Note: the contact part is made of stainless steel,meets GMP standard,very healthy.appearance is not very beautiful but very durable.

        1, The outlets can be adjusted to any direction around the circumference .

        2,High frequency, Screen ratio can reach 95%.

        3,Fast and easy to replace the screen mesh,only need 3-5 minutes.

        4,All tightness structure,no dust pollution.

        5, We can add some viewing ports in the cover if you required, you can view the materials's running track through the viewing port.

        6,Surface treatment:mirror polishing,you almost can use it as a mirror.

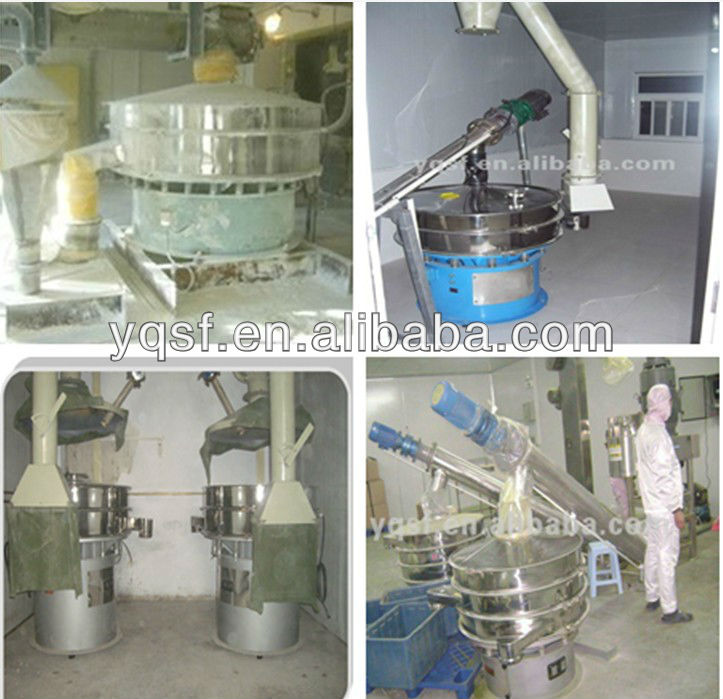

Screening spots(token in our customers' factories)

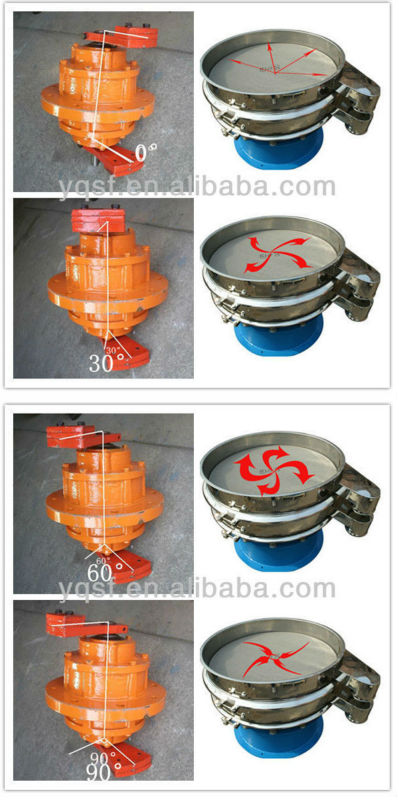

Material running trajectory:

Look,larger the angle,larger the vibrating force and running trajectory is close to circular.

But be careful: when you adjusting the vibrating force,if the vibrating force is too large,it will damage the machine!!!

    By changing the eccentric block’s included angle (the upper and down), the material motion trail will be changed.

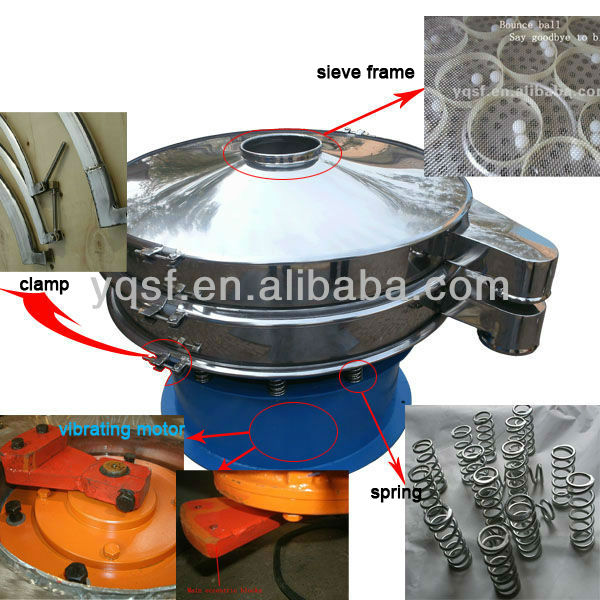

  Structural details:

  Note:

1,This vibrating sizing screen are made of basement,motor,screen frame and mesh,clamps,screws,springs and so on.

2,With punch board under the fine mesh,product the fine mesh from damaged by materials when feeding.

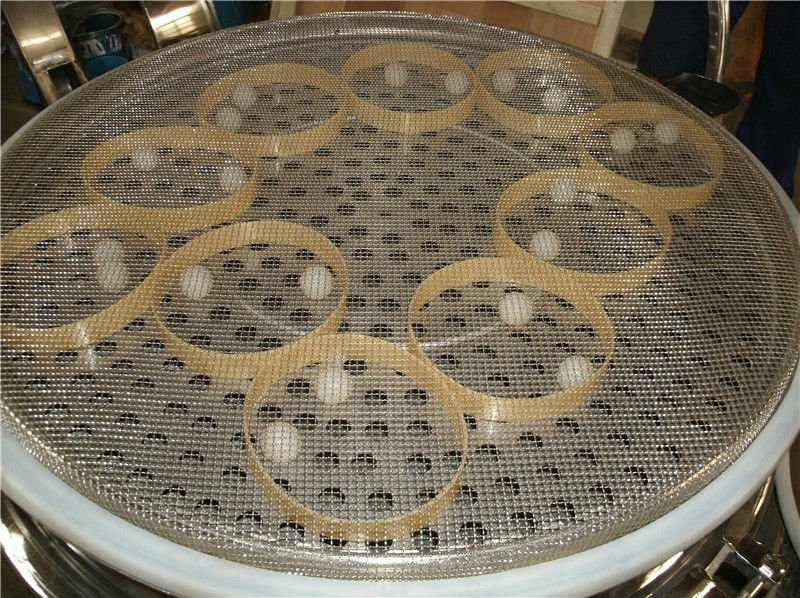

3,With many bounce balls jump up and down sharply when the machine work,can avoid the fine mesh from blocked by materials.

4, screen mesh:2-500mu(0.5-0.002inch/13mm~0.02mm), all are made of SUS-304(woven mesh,square hole)

5.screen mesh belongs to easily damaged accessory, so we enclosed ertra screen mesh with the machine when delivery,free of charge!!!
