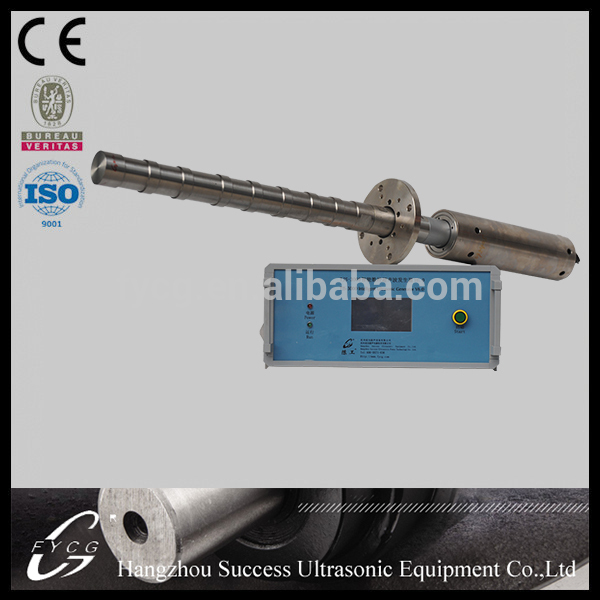

YP-S53 20kHz Ultrasonic Extraction

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $2,500 - 8,850 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

YP-S53 20kHz Ultrasonic Extraction
Low temperature
High efficiency
Low cost
Less impurity

YP-S53 20kHz Ultrasonic Extraction

Product Description

For the strong radiation pressure, mechanical vibration, disturbance effect, emulsion, diffusion, high acceleration, smash and mix produced by ultrasonic cavitation, increase the frequency and speed of molecular motion, increase in solvent penetration, accelerating target component into the solvent, promote the extraction process.It is called ultrasonic extraction.

Comparison

Compared with SFE	1. Simple equipment, low cost 2. Suitable for any solvent
Compared with Soxhlet	1. High efficiency 2. Allows adding extractant 3. Suitable for the thermolabile target component extraction 4. Short time
Compared with Microwave-assisted Extraction	1. Short time 2. More secure in acid digestion 3. Simple process, no pollution to extract

Compared with SFE

1. Simple equipment, low cost

2. Suitable for any solvent

Compared with Soxhlet

1. High efficiency

2. Allows adding extractant

3. Suitable for the thermolabile target component extraction

4. Short time

Compared with Microwave-assisted Extraction

1. Short time

2. More secure in acid digestion

3. Simple process, no pollution to extract

Sepecification

Model	YP-S51	YP-S53	YP-S55	YP-S57	YP-S59	YP-S61
Frequency	28 kHz	20 kHz	20 kHz	20 kHz	20 kHz	20 kHz
Power	1000 W	500 W	1000 W	1500 W	2000 W	3000 W
Voltage	220±10% V
Temperature	300 °C
Pressure	30 MPa
Intensity of sound	≥15 W/cm²	≥10 W/cm²	≥20 W/cm²	≥30 W/cm²	≥40 W/cm²	≥60 W/cm²
Capacity	400 L/H	300 L/H	600 L/H	900 L/H	1200 L/H	1800 L/H
Generator	V5.0	V6.0	V6.0	V6.0	V6.0	V6.0
Material of Horn	Titanium alloy
Size	Generator: 200420280 mm Horn:Standard or Custom Made	Generator: 400430190 mm Horn:Standard or Custom Made	Generator: 400430190 mm Horn:Standard or Custom Made	Generator: 400430190 mm Horn:Standard or Custom Made	Generator: 400430190 mm Horn:Standard or Custom Made	Generator: 400430190 mm Horn:Standard or Custom Made

Applications

Break the cell of creature and plant.
Extracting the effective ingredients of creature and plant.
Extracting the effective ingredients of Herbal medicine in the low temperature.
Extracting the BCR element speciation.
Activation of bacteria in a low energy state.
To kill living bacteria in a high energy state.
DNA extraction and DNA shear.
Gene transfection.
Accelerating aging for liquor.
Dormancy breaking of plant seeds, in order to improve the germination rate and precocious puberty.
The two item which is not homogeneous solution polymerization.
Deep processing: traditional Chinese medicinal materials,oil, sugar crops,fruit,vegetable,tea leaf, food supplies and so on.

Advantages

Do not need high temperature.
High efficiency.
Wide applicability, for the vast majority of medicinal herbs.
Low energy consumption.
Large capacity, fewer impurities, separation and purification of effective components easily.
Low cost, high economic benefits.
Simple operation, convenient maintenance.
Don't change the chemical structure and composition of extraction.
May be the emergence of new no matter, is conducive to the discovery of new components.

Why Choose Us?

Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
Our company was founded in 1978.We have more than 30 years experiences.
We have more than 20 engineers.They can make design scheme according to your requirements.
Our piezoeletric ceramic disc is imported from Germany.The transducer have longer service life.
Welcome to send us your sample.We have a open laboratory.It is free for making experiment.And we will take a video for you.
We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.

After-Sales Service

24 hours technical supports and after-sales service
Non-human damage, one year guaranteed exchange, three years warranty

Company Information

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	FYCG	Model Number:	YP-S53
Type:	Ultrasonic Extraction	After-sales Service Provided:	Engineers available to service machinery overseas	Certification:	CE,BV,ISO 9001
Power:	500 W	Frequency:	20 kHz	Size:	Standard or Custom Made
Generator:	V6.0
