YQ high screening efficiency vibration filter sieve for cocoa powder,China YongQing price supplier

Filter sieve for COCOA POWDER" data-width="519" data-height="162" style="display: block; margin-left: auto; margin-right: auto;" ori-width="519" ori-height="162" />   Yongqing company    is a leading manufacture specialized in designing and manufacturing different kinds of vibration screen in china .with the experience of more than 3 years ,manufactuing according to the ISO9001:2008 quality control systerm guidelines.We help our customer develop special vibration screen for their application and OEM service offered!

    Welcome the large or old customers to come to the technical exchange and

  cooperation .We also will provide the project design and the technical design for customers.

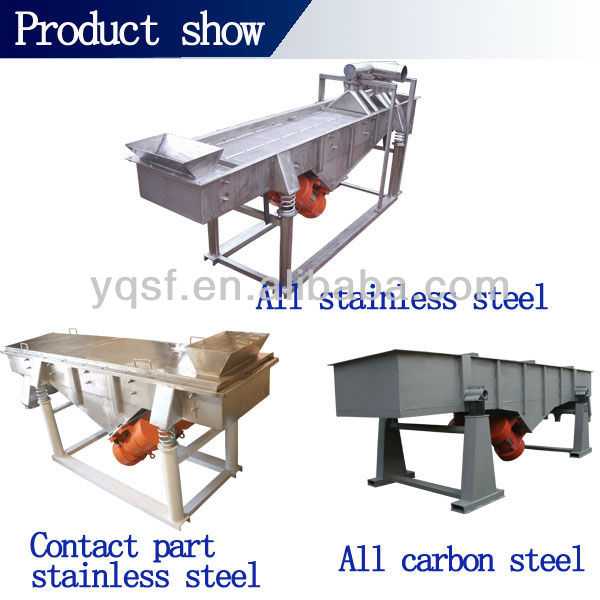

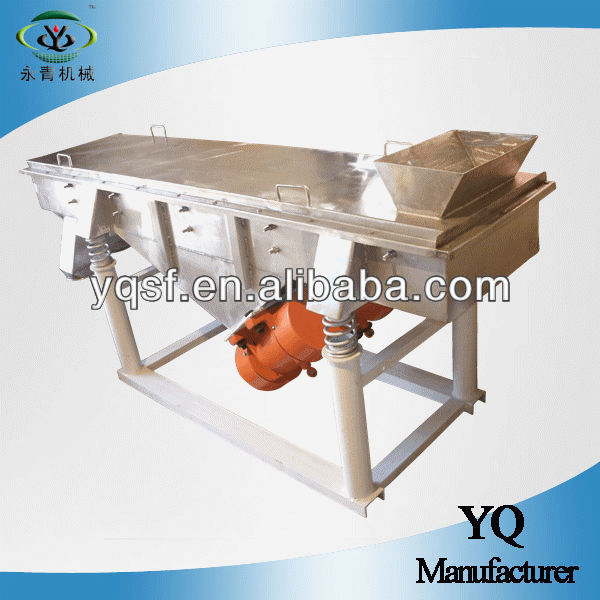

YQ high screening efficiency vibration filter sieve

 for cocoa powder

Description:

  Vibration filter sieve is a kind of sieving equipment and is widely used for grading and

screening materials in the following fields: minerals, quarry, building materials, water .

Usage:

  1. It is mainly used for screening, filtering, grading and removing impurity for all kinds of powder, particle, and liquid, ESPECIALLY FOR DRY MATERIAL.

 2. Application of fields: chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce, slurry, quicklime, fireproofing powder, metallurgy powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, sewage, waste oil, dung, etc .

  Working principle of the vibration filter sieve:

a.  The vibrating source is also from vibrating motor.

b.  There are two motors to be fixed on the both side of screening box(or under the screening box) to corotate by the contrary direction. In the process of rotating, the eccentric blocks of motor will emerge a kind of centrifugal force, which can be transmited to the screening box and make the machine run by linear direction.

c.  Then the material on the mesh will be vibrated  – forward and screened. By choosing the suitable mesh, the screening target is realized

1. different kinds of screen mesh,from 2mu to 325mu,suitable for all kinds of materials,you can change according to your needs
2. 5 layers at most,you can use one layer or multi layers,
3. with rubber balls bounce up and down shapely when the machine working,from the minnow net from being jamed

  How to adjust the vibration force?

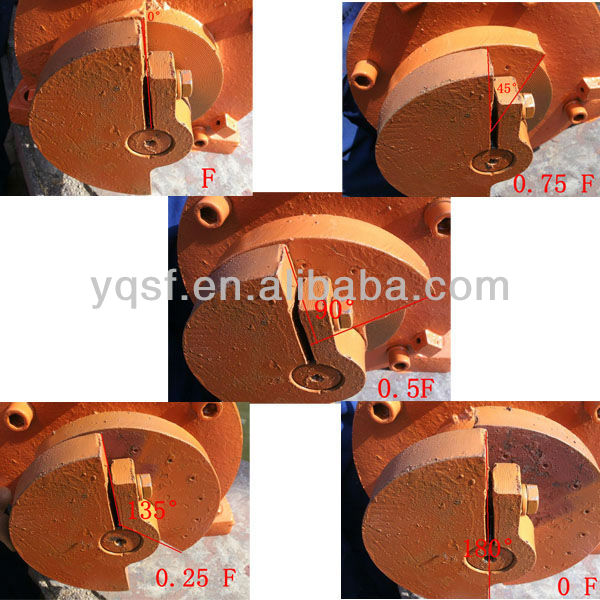

By changing the angle between the eccentric block to adjust the excitation force .    The  larger the angle between the eccentric blocks,the smaller the exciting force , on the contrary ,the smaller the angle the greater the exciting force , two eccentric block coincides exciting force maximum . ( Note : both ends of the eccentric block  must be adjusted consistent . )

Technical Index :

Primary competitive advantages:

1, Country of origin: China
2,Gurantee/warranty: 1 year
3, Packing: Wooden packing. Special fumigation-free wooden material.
4,Price. We promise a factory price for each machine.
5,Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof.

6,Support to OEM order.

7,Delivery in time.

          Please kindly contact lynn for further information.We'd like to supply you the best solution.Other vibrating equipment is available, please feel free to contact.
