YQA wire mesh polyurethane vibrating screen machine for black pepper,China Yongqing price supplier

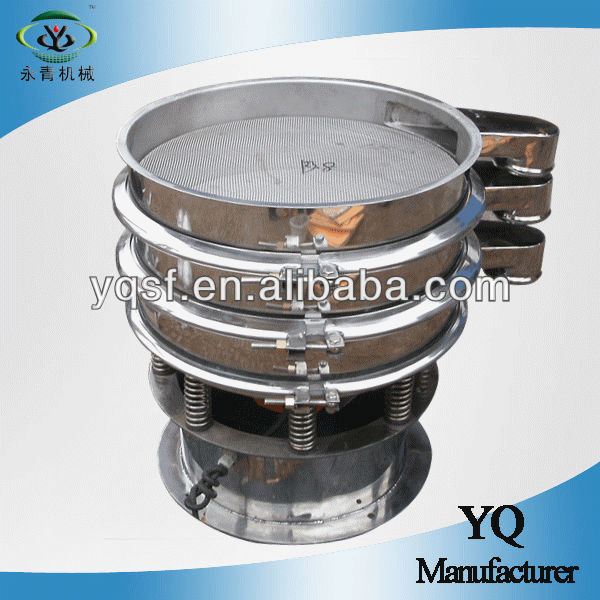

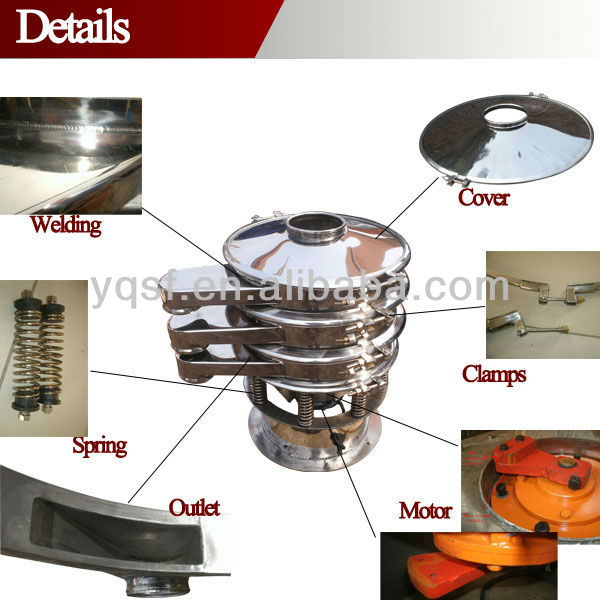

XZS polyurethane vibrating screen is made up of bottom,vibrating motor, mesh, fasten ring, sealing strips(rubber or gel silica ), bounce ball, cover.

The  vibrating screen  moves on a circular motion. So it is also called circular  vibrating screen . It is a multi-layer and highly efficient  vibrating screen .

Working principle of  polyurethane vibrating screen

Adjust the upper and lower ends of its phase angle, the screen can change the material's surface movement ,to achieve the purpose of screening a variety of materials.

The functions of  polyurethane vibrating screen

It is mainly used for screening, filtering, grading and removing impurity for all kinds of powder, particle, and liquid.

a.   Removing impurity. Generally, single layer is recommended for removing impurity.

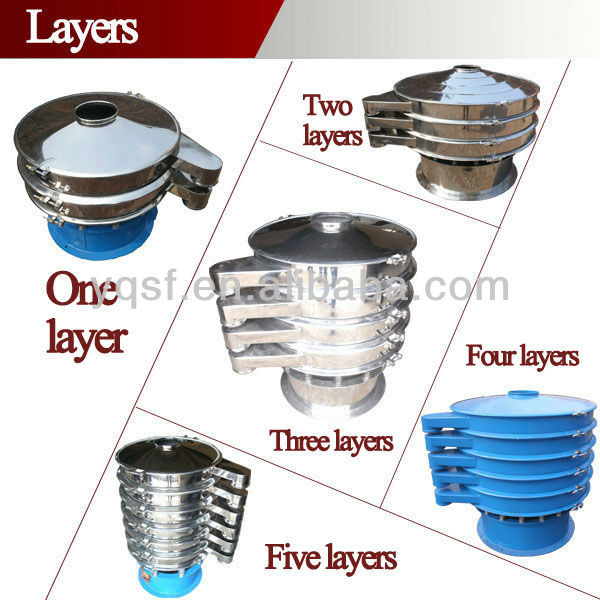

b.Screening, filtering and grading. If the material size include 2 kinds, single layer is available; if the material size is 3 kinds, two layers are suitable; If the material size is four kinds, three layers are recommended. The rest can be done in the same manner.  5 layers are supported at most on a machine.

                         After sales service

1.Warranty: the quality of our products is guaranteed for  12 months .

2.After warranty, we can supply spare parts at cost prices to our customer.

3.anti-rust painting, primer and finishing paint, blue or as your request.

Other equipments for your review

So far, our productions have entered Russia, Canada, Argentina, USA, Spain, Lithuania, Malaysia, Indonesia, Vietnam, Australia, New Zealand, South africa, and so on, more than 25 countries.

Warmly welcome you to join us.

FAQ :

1. What it does...

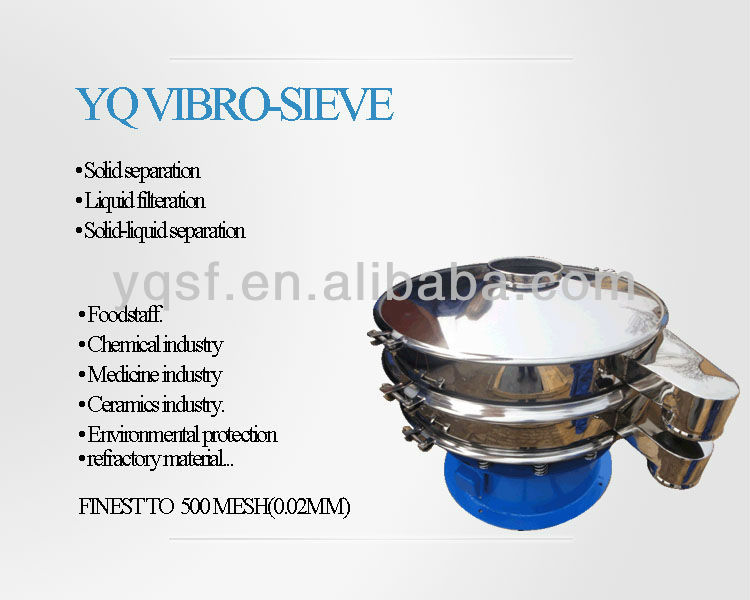

Separate solids from liquids or segregate dry materials into various sizes. Particles as fine as 400 mesh (37 microns) can be screened, with up to 5 screen decks incorporated in one XZS separator. No special flooring or foundation is needed and less working floor space is required. Simple and efficient design requires less horsepower. Other features include long screen life and ease with which screens may be changed.

2. How it works...

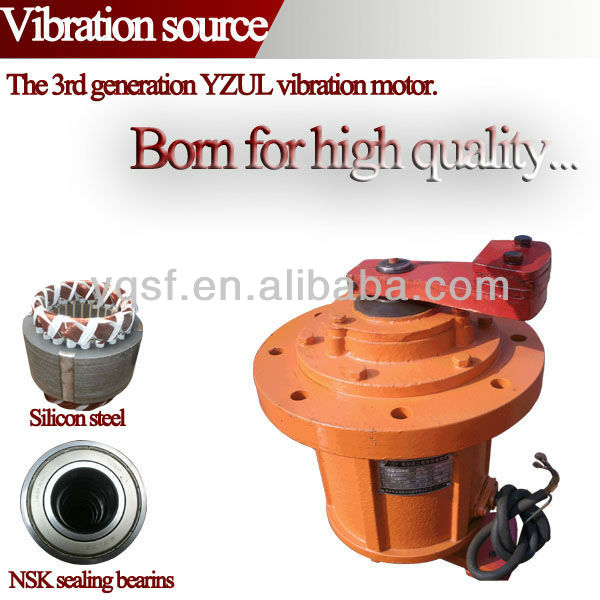

Basically, the XZS Separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable product ... wet or dry ... heavy or light ... coarse or fine ... hot or cold.

3. Any self-cleaning devices on the sieving machine

Yeah, the self-cleaning is a necessary structure on the rotary vibrating screen. Under each layer sieve mesh, there are some bounce balls. In the process of working, it will hit the sieve mesh ceaselessly to finish the self-cleaning. Besides this, it also can prevent the sieve mesh from being blocked.

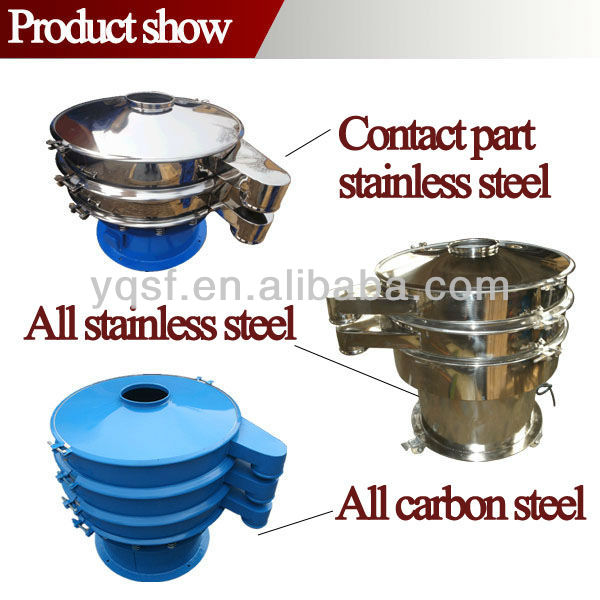

4. How many kinds of material are supported???

A. All stainless steel (201, 304, 316L)

B. All carbon steel Q235A

C. Contact part Stainless steel.

5. About the phase

0.12-0.55 kw single phase and three phase are both supported.

0.55-2.2 kw   Three phase is just supported.

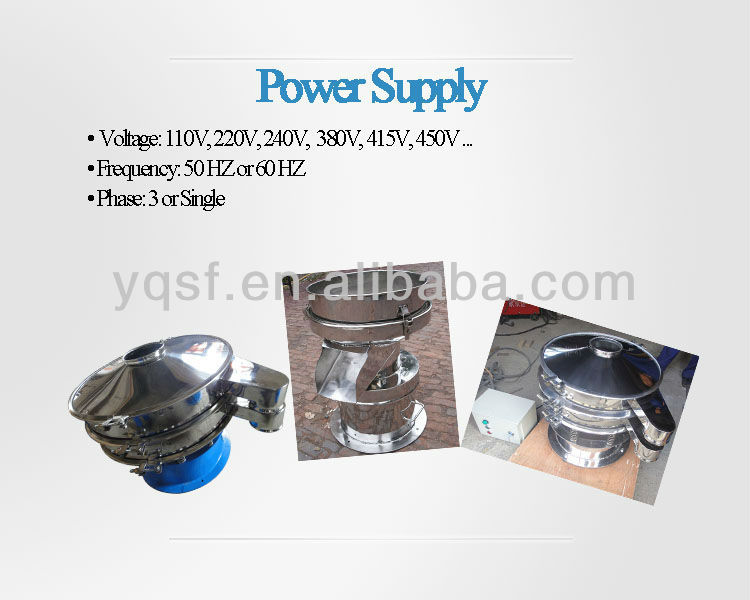

6. About the voltage

110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).

7. How long is the warranty?

The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.

8. OEM order and labeling services are supported???

Yeah, OEM order and labeling services are supported. And we seek global partners.

9. Whether the site visits is supported or not???

Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. It takes about 1 hours from Zhengzhou airport to our factory.
