YXT-C4 Adhesive sticker up and down fixed position automatic red wine labeling machine,China Kuixing price supplier

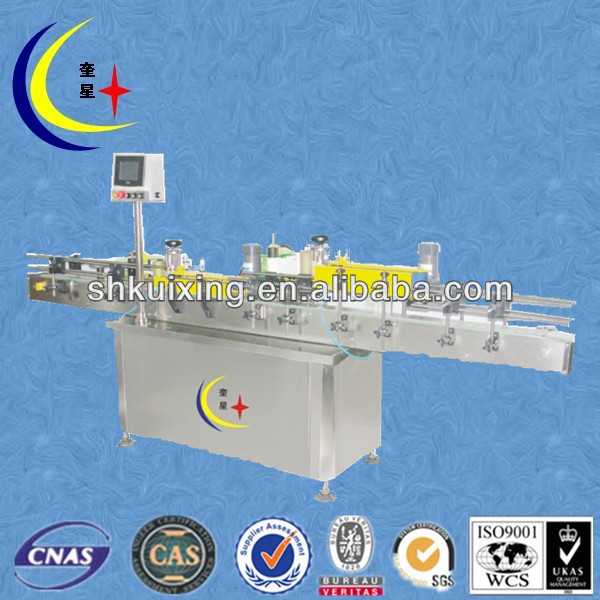

YXT-C4 Adhesive sticker up and down fixed position automatic red wine labeling machine

Technical parameter:

1,bottle diameter :10-150mm

2, max outer diameter of label :300mm

3, space between label :3mm

4,label width :10-200mm

5,label length:10-350mm

6,bottle diameter:10-150mm

8,label precision: ±1mm

9,production capacity : 20-60 bottle/min (according to bottle and label size)

10,power supply :220v 50hz/60hz

11,power :600w

12,weight:500kg

13,dimension :2500*1500*1400mm (L*W*H)

Functions:

1,This machine adopts imported PLC control system ,or touch switch knob control ,elected Japanese Omron (Germany transparent)photoelectric device, variable speed motors, Conveyor chain board and imported belt related parts.

2,Host design absorbed imported machines' labeler transmits way ,solving the general domestic labeling unstable factors.

3,The machine is suitable for different bottles, easy adjustment ,can be finished in a short time.

4,The quick printer adopts the motor drive ,gas drive.The words in the ribbon are clear and clean.

5,The whole machien is designed to meet GMP Standard.

6,This machine is suitable for medicine, chemical, food, commodity etc.Lableing for bottle and box of flat, square,circle,elliptic tapered,single orientation etc .
