YXT-TL40 Automatic wet glue red wine labeling machine,China shkuixing price supplier

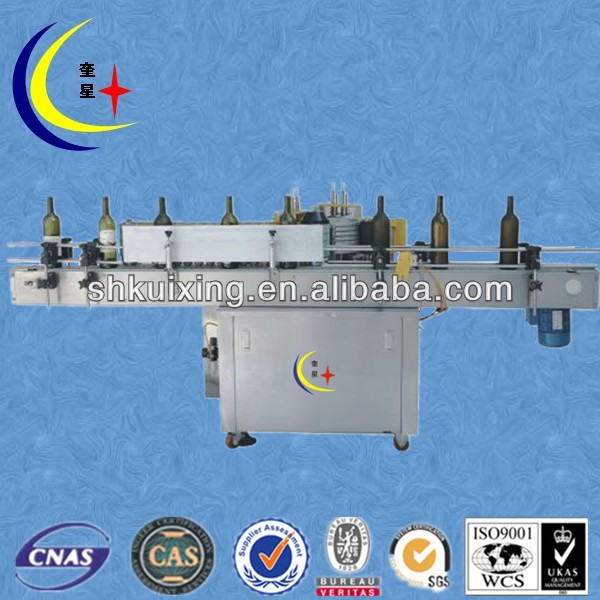

YXT-TL40 Automatic wet glue red wine labeling machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $8,000 - 12,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

RED WINE labeling machine
1,speed:30-80bpm
2,labeling precision:+/-2mm
3,payment terms:L/C,T/T
4,stainless steel:304

YXT-TL40 Automatic wet glue red wine labeling machine Character:
Labeling speed	30-80b/min
Labeling precision	≤±1mm
Label length	50-500mm
Label width	40-130mm
Bottle high	50-350mm
Bottle diameter	60-100mm
Power supply	220V 50(60)Hz 2.1kw
Machine size	24009501200mm
Weight about	700kg
Apply range	glass and plastic round bottles

Operating principle:

This machine adopts the design first in stick mark scalloped turned pole again by rubber wheel stick take a few glue and then to label transmission device in sticky get a tag,to vacuum,saction paper Roller position,by off label grasp take off label.At the same time will label switched to vacuum sheet transfer belt,use the vacuum suction,make tags adhere to the sheet transfer belt,use the vacuum suction,make tags adhere to the sheet transfer belt into the labelling area,make tags enclosed by chain coveyor esther in the bottle.So circulates movement,the complete machine production process.

automatic cold gluelabeling machine can labeling two sides .

Operation procedure:

(1)Using manual machine,again affirmatory roulette move and the adjustment of various spare parts in the correct position.

(2)Place glue and tag:put a label first label fan shape,after finishing in tags within the transmission device.

(3)System power on.

(4)Sure air pressure is normal or not.

(5)Press the vacuum switch.

(6)Will point start/continuous conversion switch twist to the point start position in press host switch make glue adhesion fan-shaped turn stern.

(7)Will products(bottle)placed in a Conveyor belt.

(8)Contact switches must and switch indicator lamp also bright.

(9)Will point start/continuous conversion switch twist to continuous position in press host switch began to work.

(10)Determine wherher attached with a right,if not ideal may engage in trace adjustment.

(11)Check the bottle and tags into labeling place time is correct.

(12)Suction paper roller and fan-shaped turned pole in attached with a stick,whether have taken diffferent sound .

(

Type:	Labeling Machine	Condition:	New	Application:	Food
Packaging Type:	Bottles	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Power:	2.1kw	Place of Origin:	Shanghai China (Mainland)
Brand Name:	shkuixing	Model Number:	YXT-TL40	Full-auto:	wet glue labelling machine
silver grey:	certificatio IS9001:2000
