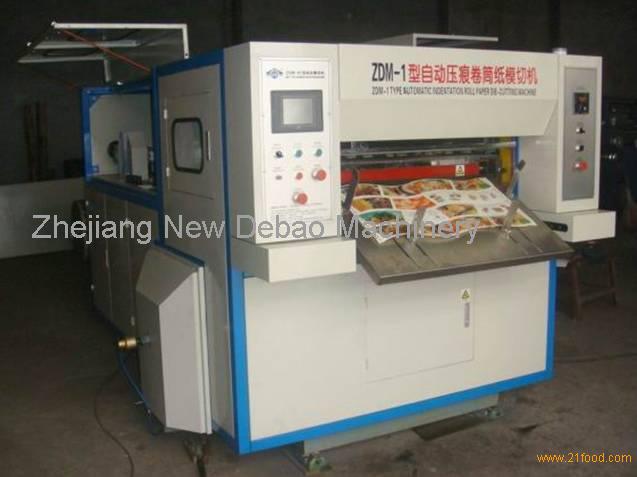

Our ZDM-1 series computerized micro-gap flat creasing and die Cutting Machine is designed with human-computer interface, which offers convenient machine operation. Equipped with servo motor driving and positioning system, AC frequency converter, auto-counting device, manual (pneumatic)lock plate, photoelectric error-correction device, electromagnetic clutch, centralized lubrication system, over-load protection device and uniquely-designed rotational mechanism, our die cutting machine features smooth paper feeding and unwinding, and accurate positioning, etc.
Advantages:
The key components and control system of our computerized micro-gap flat creasing and die cutting machines are acquired from other countries. Their precise configuration guarantees sable machinery operating pressure, precise positioning, stable operation and high safety standard.
Technical Parameters of ZDM-1 Computerized Micro-gap Flat Creasing and Die Cutting Machine:
Model: ZDM-1
Die-cutting precision: +-0.10mm
Rated die-cutting speed: 60-100times/min
Highest die-cutting speed: 110 times/min; 5,400times/hour
Highest die-cutting pressure: 120T(250N/cm2)
Max. suitable paper size: 900 x 530mm
Min. suitable paper size: 490 x 400mm
Paper specification: 130 500g/m2
Motor power (total): 11kw
Main motor power: 7.5kw
Overall dimension: 4,000 x 1,700 x 1,700 mm
Machine weight: 6,000kg
Optimum environment: ventilating and dry conditions, 10-25a
ZheJiang New DeBao Machinery CO.,LTD is manufacturer of paper tableware machines, We offer paper cup forming machine, middle speed paper cup forming machine, paper cup printing machines, cutting machine, extrusion laminating machine, flexo-graphic printing machine and other vacuum plastic packing machine.
As a paper tableware machine supplier, Established in 1999, with 10 years manufacturing experience of making paper machines, we have manufactured paper plate making machines, paper bowl reforming machines, paper cup reforming machines, and been used many countries, we have built reliable reputations with service and high quality paper tableware forming machines. We have obtained the ISO9001,2000, CE certificates. We are offering all paper tableware making machines of producing line, all machine we make are running stable, with after-sale service system for repairing parts.
ZheJiang New DeBao Machinery CO.,LTD was located in Ruian, Zhengjiang province, China. Ruian is a international port city where there are many international shipping line. It offer convenient shipping route, which give our customer more savings more than competitive China labor and material markets. Welcome you come you to contact us, we are sure you must get right page for buying paper cup forming machines, and paper tableware making machines.
|
|
|
|
|
|
|
|
|
