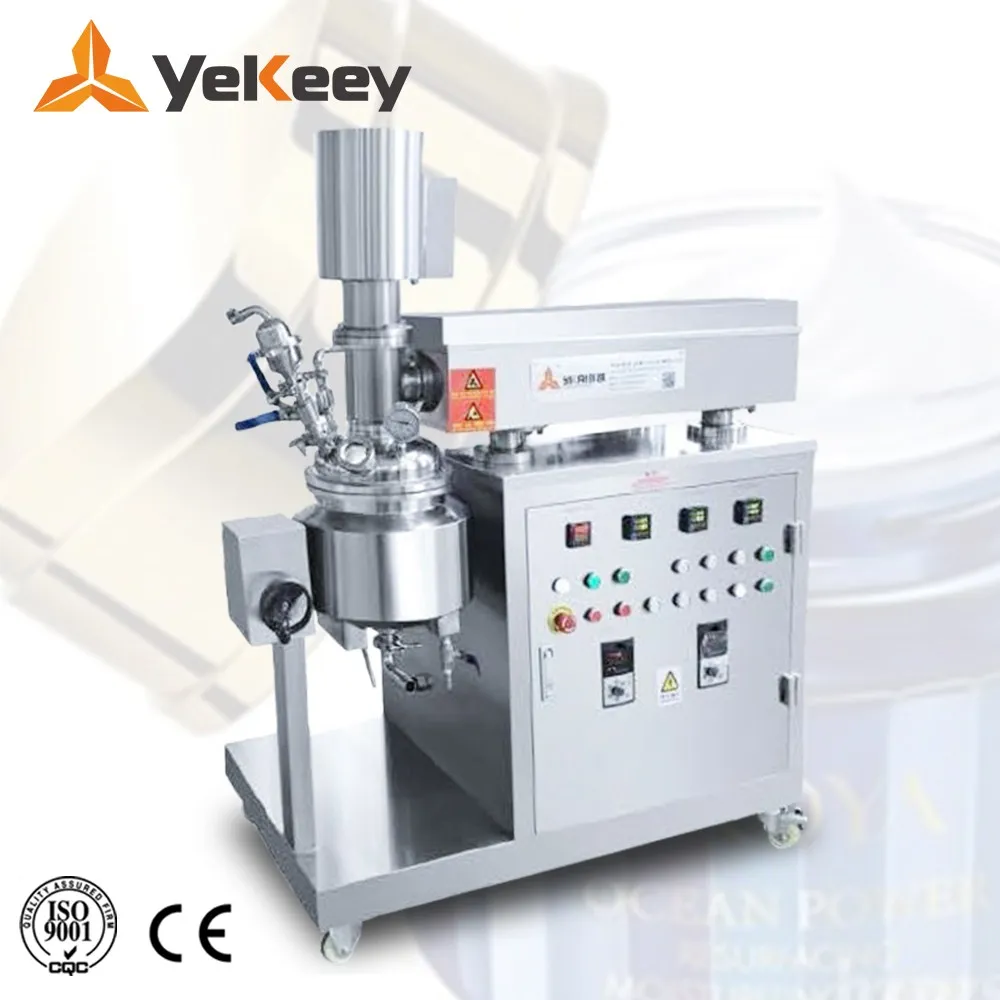

ZJR-10 Small Electric Mixing Equipment Lab Vacuum Emulsifying Mixer Machine 10L

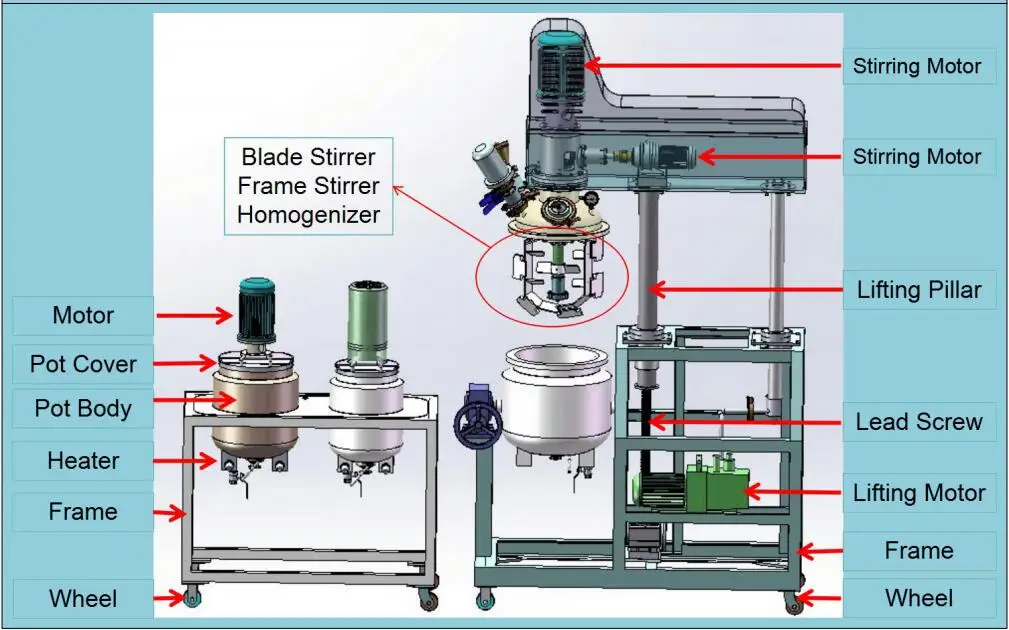

It is an automatic lifting type for the lid of emulsification tank with the main tank invertible and dumpable.
The emulsification tank comes with a high shear homogenizer and a counter-rotating scraper.

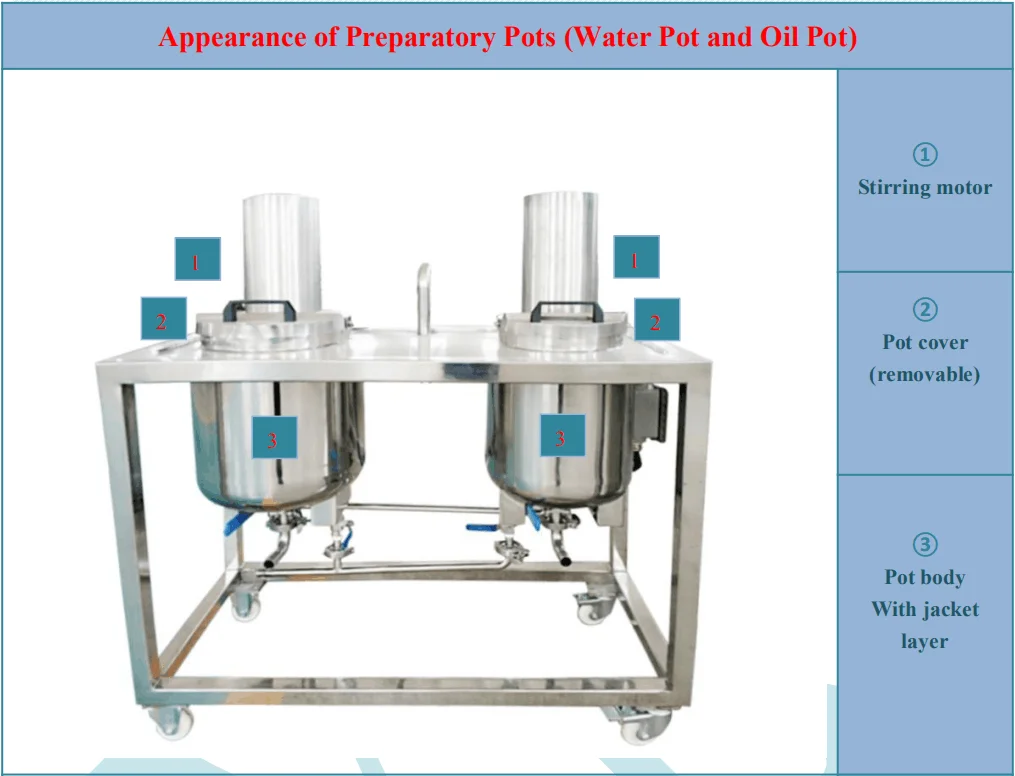

It includes 2 pre-treatment tanks. One is the water phase tank, the other is the oil phase tank.

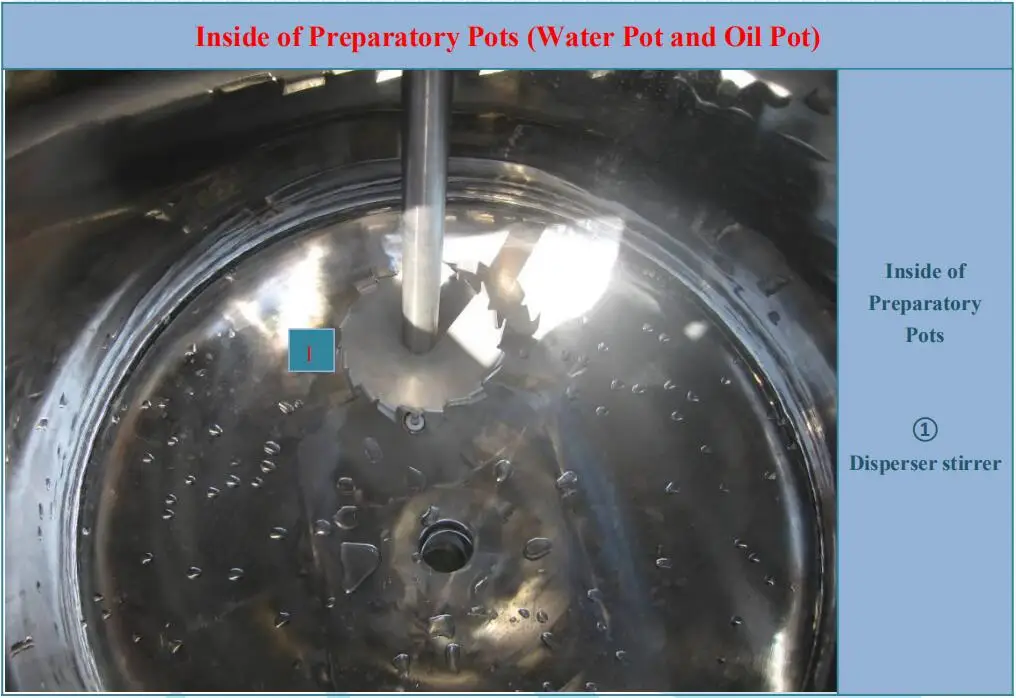

A high speed dispersion system exists inside the pre-treatment tank.

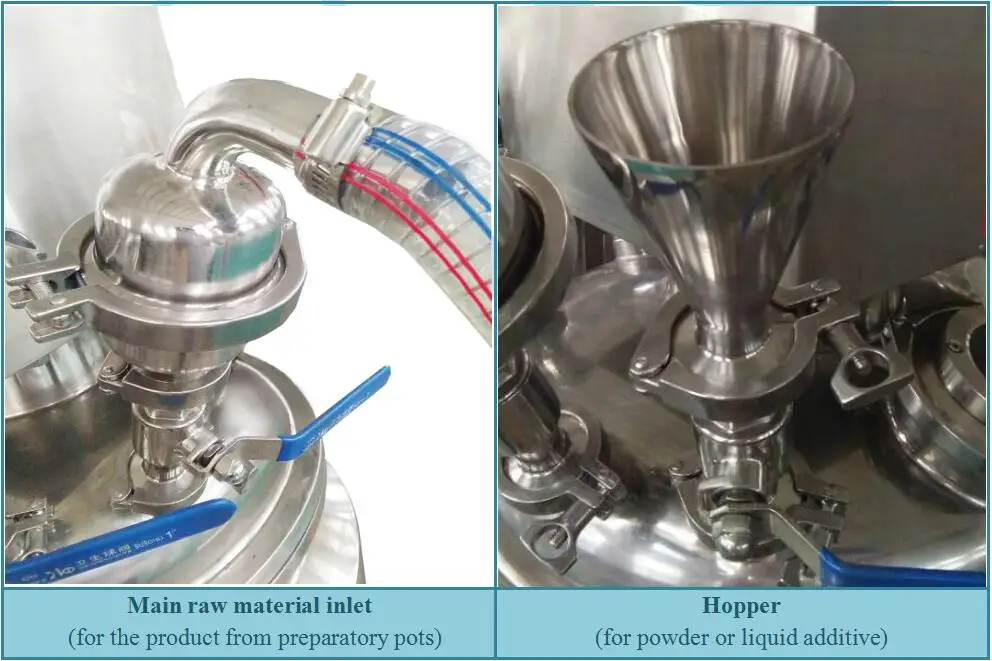

There is a vacuum system inside the emulsifying equipment with the working materials in the pre-treatment pot able to be sucked into the emulsification tank using the negative pressure.
They are mirror polished for both inner and outer surfaces of the tank to meet the sanitary requirements.
It adopts the electric heating method through the jacket layer, resulting in uniform heat transfer and high accuracy of temperature control. Moreover, the system can be connected to the water supply for cooling.
Customers can select the control mode alternatively using the PLC or button.
Advantages
Suitable for high viscosity materials with the highest viscosity up to 80,000MPas.
Good emulsification effect & stable emulsion form, the particle size of the micro-droplets is usually less than 5um.
The main tank can be dumped and discharged through the bottom valve.

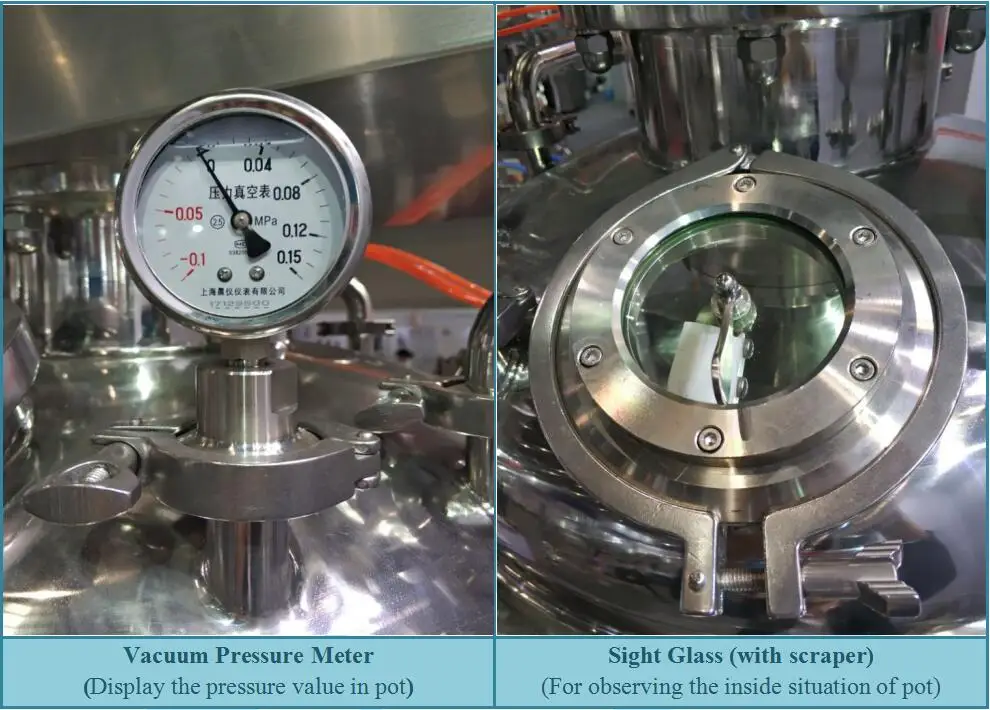

Includes a vacuum system that can form a high vacuum value above -0.093MPa in the emulsification tank.
The parts in direct contact with the working material are made of high quality stainless steel 316.
The heating temperature is controlled by PID with the features of fast heating and high accuracy of temperature control.
A heat insulation layer is provided outside the heating interlayer to prevent the operator from being burned.
It comes with LED lighting inside tank and sight glass with scraper.
It is easy to clean and maintain for the machine structure.
A lot of anti-daze and other protection mechanisms are set inside the equipment to avoid personnel injury and accidental damage to the equipment as much as possible.
Other functions can be customized.
Parameters
| Model | Design Volume (L) | Max. Useful Volume (L) | Min. Useful Volume (L) | Dimensions (L*W*H)MM |
| ZJR-5 | 6 | 4 | 2.5 | 1400*600*1700(2000) |
| ZJR-10 | 11 | 8 | 5 | 1500*600*1700(2000) |
a
Applications
Food Industry: Tomato Sauce, Salad Dressing, Mayonnaise, Cheese, Fruit Jam, Sauces, Peanut Butter, Oil, Jelly, Honey, Juice, Milk, etc.
Cosmetic Industry: Facial Cream, Hand Cream, Body Lotion, Shampoo, Toothpaste, Gel, Hair Conditioner, etc.
Chemical Industry: Liquid Soap, Liquid Detergent, Cleanser, Lubricant, Pigment, Paint, Pesticide,Wax, etc.
Pharmacy industry: Ointment, Medical Gel, Syrup, Suppository, etc.
Why do you choose us?
 |
About YK > |
| R&D > | |
| Our Customers > | |

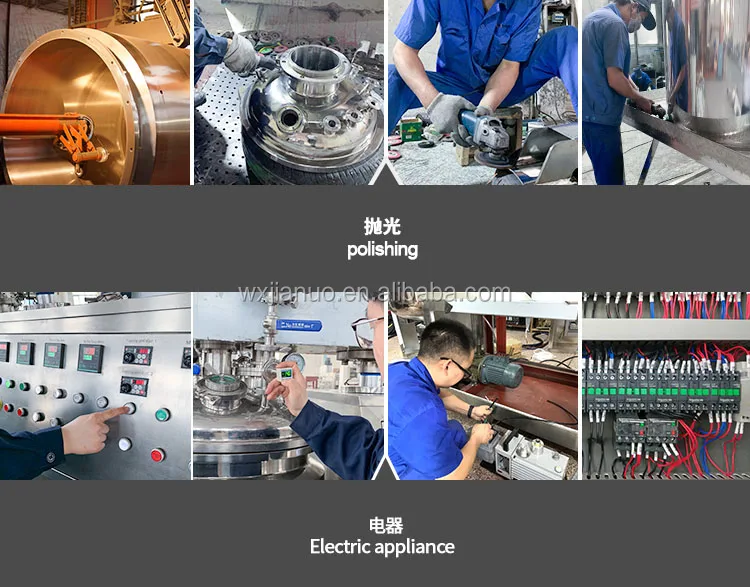

| Our Factory > | |
| Our Service > | |
| Our Suppliers > | |
| Honor & Certificates > | |
| Company TIMELINE > |
Packaging:
packing by wooden case usually,we also do other packaging as per customer's requirement.
Shipping:
Honor results from diligence.Each approbatory professional certificate is the fruit of diligence and perseverancefor YK people.Praise and honor is not only our business card and pass card but also our route sign and experience.
FAQ
1. Why your machine similar with other supplier?
We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.
2. I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products,
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid products
shampoo, lotion, liquid soap, detergent,juice,solution etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc
......................................................................................................................................................................................................
Packing & Shipping
Packaging:
packing by wooden case usually, we also do other packaging as per customer's requirement.
Shipping:
Wuxi YK Automation Technology Co.,Ltd. is located at Xishan Industrial District, 10 minutes away from Wuxidong Railway Station and 20 minutes distance travelled to Sunan Shoufang International Airport by car.
Wuxi YeKeey was established in 1998, achieving great success with more than 20 years of experience in mechanical equipment and chemical equipment. Now it grows into an industry leader of mechanical equipment and chemical equipment applicable to chemical, pharmaceutical, cosmetic and food industries.
Our scope of business includes lab emulsifying machine, vacuum emulsifying mixer, double planetary mixer, high shear homogenizer, mayonnaise making machine, hand sanitizer making machine, hand gel making machine, liquid soap making machine, mayonnaise making machine, shampoo making machine, toothpaste making machine, cosmetic making machinery, filling machine, etc.
Lab emulsifying machines, featuring 5 liters and 10 liters, can be applicable to production of cream, ointment, gel, and sauce, etc.
Vacuum emulsifying mixers can be widely used for manufacture of cosmetics, pharmaceuticals, chemicals, food additives and daily use products.
Double planetary mixers can be used for processing of high viscosity products such as A.B glue, silicone sealant, etc.
High shear homogenizers can be applied to chemicals, medicine, cosmetics, pharmaceuticals.
We strongly recommend our brand new external circulation emulsifying machines that can be used to produce hand sanitizer, liquid soap, liquid washing products, etc.
We sincerely hope that we can join hands with our business partners to create better solutions in terms of emulsification and homogenization, mixing and packing included.
