ZXC SERIES FULL AUTOMATIC HIGH SPEED VERTICAL FILLING AND SEALING VACUUM PACKING MACHINE,China ZHIXING price supplier

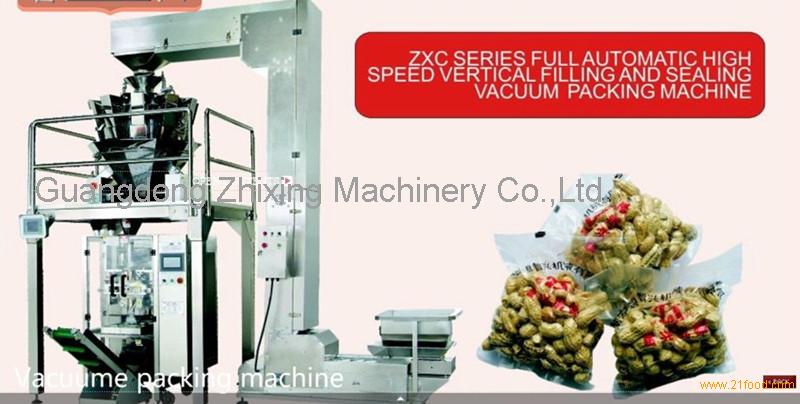

ZXC SERIES FULL AUTOMATIC HIGH SPEED VERTICAL FILLING AND SEALING VACUUM PACKING MACHINE

FOB Price:Price can be negotiated

Production Capacity:According to the order

Payment Terms: EXW

Update Time:2013-07-09

Contact Supplier

Product Description

This machine is one kind of vertical machine that can independently, continuously & automatically complete the whole packing process of material feeding, take up conveying , electronical weighing, bag making , filling & vacuumizing ( or inflating ) at once.

It is suitable for vacuum packaging of various kind of quick freeze foods, meat foods, fruit and vegetable, nutlet, tea, seeds and various kinds of oxygen freshing foods.

TECHNICAL SPECIFICATIONS

ZXC-400DK

BAG SIZE MAKING ( MM ) : L: 100 -350 W: 90 -190

FILLING VOLUME ( G ) : 50 - 2000

PACKING SPEED ( BAGS / MIN ) : 15 -65

RATED VOLTAGE ( V ) : 380

VOLATAGE USING RANGE ( V ) : 342 -412

RATED FREQUENCY ( HZ ) : 50

WORKING PRESSURE ( MPa ) : 0.36m³ ( NORMAL ) / MIN 0.6MPa

LOWEST ABSOLUTE VACUUM VALUE ( KPa ) : 1.33

MAIN POWER OF WEIGHER ( KW ) : 3.5

OUTSIDE DIMENSIONS ( MM ) : 3800 X 2730 X 3580

ZXC-600DK

BAG SIZE MAKING ( MM ) : L: 100 - 500 W: 90 -250

FILLING VOLUME ( G ) : 50 -3000

PACKING SPEED ( BAGS / MIN ) : 10- 60

RATED VOLTAGE ( V ) : 380

VOLATAGE USING RANGE ( V ) : 342 -412

RATED FREQUENCY ( HZ ) : 50

WORKING PRESSURE ( MPA ) : 0.36m³ ( NORMAL ) / MIN 0.6 MPA

LOWEST ABSOLUTE VACUUM VALUE ( KPA ) : 1.33

MAIN POWER OF WEIGHER ( KW ) : 3.5

OUTSIDE DIMENSIONS ( MM ) : 4210 X 2800 X 3680

ZXC-800DK

BAG SIZE MAKING ( MM ) : L: 100 -600 W: 100 -360

FILLING VOLUME ( G ) : 50 -4000

PACKING SPEED ( BAGS / MIN ) : 10 - 40

RATED VOLTAGE ( V ) : 380

VOLATAGE USING RANGE ( V ) : 342 -412

RATED FREQUENCY ( HZ ) : 50

WORKING PRESSURE ( MPA ) : 0.36 m³ ( NORMAL ) / MIN 0.6 MPA

LOWEST ABSOLUTE VACUUM VALUE ( KPA ) : 1.33

MAIN POWER OF WEIGHER ( KW ) : 4.0

OUTSIDE DIMENSIONS ( MM ): 4600 X 3050 X 4200

Company Profile

Name: Guangdong Zhixing Machinery Co.,Ltd.

Main Products: Confectionery Production Line and Packing Machine

Business Type: Manufacture

Total Employees: 100 ~ 500

Established Year: 2006

Total Annual Revenue: US$10 Million - US$50 Million

Main Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia,

Address: East-side Area, Huabu Road, Chaoan County

GUANGDONG ZHIXING MACHINERY CO., LTD. is professional in manufacturing various type of packing machinery and candy machinery . It is a science & technology innovating type enterprise. National innovation funds project undertaker, national " twelfth - five " technology support planning project " food packaging and cooling chain logistic key technology research & industry demonstration" project ( code : 2011 BAD24B01) undertaker, national high -tech enterprise.

The company owns a science researching and technical team which is formed by high quality, both young and old technicians who have rich experience on science researching,new technology and new products developing。The company self-developed new products “ZXC-Full Automatic Vertical Type High Speed Filling and Vacuum Packing Machine ” has win the Second Award of Science and Technology Progress Award of China Machinery Industrial United Association, Third award of GUANGDONG science &technology also get the First Award of Science and Technology progress award of Chao An Country of Chaozhou City.The company has been awarded several items of country and international invention patents and has enjoyed the high reputation in the machinery line.The company always insists on the operating idea of "Sincerity,Equal and Customer First ”and pay much attention to product quality,the company products have passed the ISO9001-2000 international quality management system certificate in 2007,furthermore,their main products ZX series packaging machine has passed the European Union products safety system CE certificate.

The company products have been well sold to many distrcot both at home and abroad like France,England,South Africa, Philippines,Malaysia,Indonesia,Bangladesh,Vietnam,India etc. and has win the good reputation in the machinery industry line.

Zhixing Machinery Co.,Ltd warmly welcome the customers come from all over the world to visit our factory and offer the good suggestion for the mutual development purpose.
