ZYSZ linear vibrating screen,China zhenying price supplier

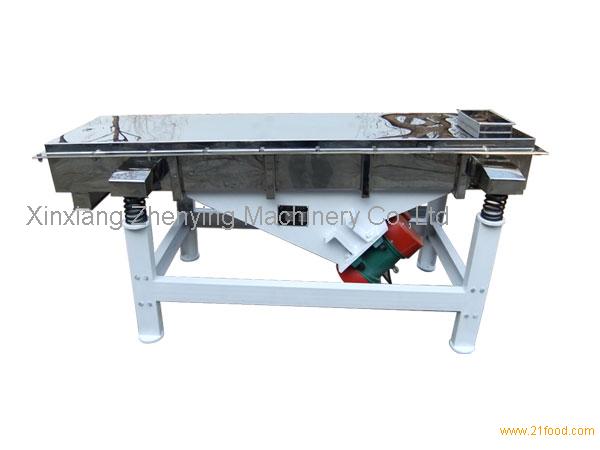

ZYSZ linear vibrating screen

FOB Price:Price can be negotiated

Production Capacity:200 sets / month

Payment Terms: FOB Tianjin

Update Time:2011-04-02

Contact Supplier

Product Description

Description

This series machines use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a linear moving path. It can be equipped with single or multi-deck to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

Field of Application

It is widely used in grinding materials, chemical, construction, chemicals, pharmacy, metallurgy, ceramics, fertilizers, coal industry to screening and grading the granular and powder bulk materials.

Feature

1. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

2. Continuous working.

3. Fully enclosed structure avoids dust overflow, reaching the request of sanitation.

4. Rubber springs may be used on customers’ requests, which would considerably reduce running noise, improving labors’ working environment.

5. Simple and rational tensioning mode of screen, easy to replace.

6. The screen frame may be replaced as per different mesh numbers, saving running cost.

Technical Parameter

Model	Screen Specification (mm)	Layer	Mesh Size (mm)	Particle Size (mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)
Model	Screen Specification (mm)	Layer	Mesh Size (mm)	Particle Size (mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)	ZYSZ525	500×2500	1--6	0.074-10	0.06-15	960, 1450	4--8	2×0.4, 2×0.75
ZYSZ1020	1000×2000	1--6	0.074-10	0.07-20	960	4--8	2×0.75, 2×1.5
ZYSZ1025	1000×2500	1--6	0.074-10	0.07-15	9,601,450	5--8	2×0.4, 2×0.75
ZYSZ830	800×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5
ZYSZ1030	1000×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5
ZYSZ1224	1200×2400	1--3	0.074-10	0.1-23	960	6--8	2×0.75, 2×1.5
ZYSZ1230	1200×3000	1--3	0.074-10	0.1-23	960	6--8	2×1.5
ZYSZ1530	1500×3000	1--6	0.074-10	0.1-23	960	6--8	2×1.5

Other Products

ZYD Vibrating Screen

ZYC ultrasonic vibrating screen

ZYZP Flow Through Vibrating Screen

ZYSZ linear vibrating screen

Company Profile

Name: Xinxiang Zhenying Machinery Co.,Ltd

Main Products: vibrating screen,vibrating sieve

Business Type: Manufacture

Total Employees: < 20

Address: 1018,South of Xinfei Road

Established in October 2008, located at Xinxiang Hi-tech Industry Park, southern section of Xinfei Road, Xinxiang Zhenying Mechanical Equipment Co., Ltd is a manufacturer specializing in vibrating equipment with total capital of 5 million Yuan and a long term R & D team of middle rank and senior engineering technical personnel and skilled workers, including, we have 86 staffs at present, including 2 senior engineers, 5 engineers, 12 technicists. With advanced manufacture process and testing equipment, as well as strict QMS, we are always producing high quality products. We have gained ISO9001:2008 and CE certification, as well as the right to import and export.

Our main products include 7 series of round vibrating screen, tumbler screen, intermediate frequency screen, linear vibrating screen, mining screen, conveyers, air-jet sieve etc. with more than 130 different specifications. We have 4 offices across the country to do marketing, spare parts supply, and service for pre-sales, sales and after sales. Presently our products are running through out the country and are exported to

Asia??éEurope??éAmerica??éAfrica etc. and received highly praise from customer with high quality and favorable after sales service.

Since the establishment, we always take “technological innovation” as the foundation of foothold. Our engineers do analytical investigation to every product series in company with experts from Beijing, Shanghai, and Xi’an colleges and universities, adopt advanced technology and equipment, combined with humane management, we devote ourselves to producing environmental-friendly and energy saving sieving equipment of high efficiency. Our sieving equipment is a combination of numerous high and new technologies, which can not only increase output, reduce energy consumption, save cost, but also control the pollution during sieving process effectively. Our products are widely used in food industry, medicine industry, and chemical industry, metallurgy industry, abrasive material industry, plastic industry, ceramics industry, glass industry and coating industry etc.

Zhenying people are always producing high quality products with “Advanced Technology, Making Better, Satisfy Customers’ Needs” quality policy, making zealous and efficient service to our customer with the style of “Rapid Response, Rapid Action”.
