Plate and frame diatomite filter machine,China price supplier

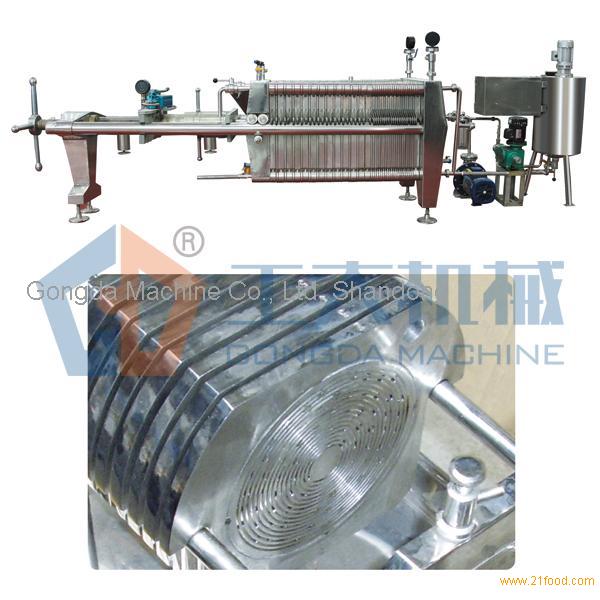

Plate and frame diatomite filter machine

FOB Price:Price can be negotiated

Update Time:2021-08-19

Product Description

Diatomite Filter machine is applied for fruit juice, tea, carbonic acid drink, sport drink, syrup, beer yellow wine, Liquor, condiment, biochemical engineering.

Feature: Plate and frame diatomite filter machine can make a filtration in beer, yellow wine, beverage, syrup, medicine, chemical industry. Adopting of the diatomite and plate to filter, the turbidness degree come out from this machine will be lower than 0.5EBC, and also easy to operate.

Plate and frame diatomite filter machine

1. Apply for

Fruit juice ,tea , carbonic acid drink , sport drink ,syrup .

Beer ,yellow wine ,liquor.

Condiment , biochemical engineering .

2. Feature

Plate and frame diatomite filter machine can make an filtration in beer ,yellow wine , beverage ,syrup ,medicine ,chemical industry .Adoping of the diatomite and plate to filter , the turbidness degree come out from this machine will lower than 0.5EBC ,and also easy to operate .

3. Filter principle

The machine contains several cells , each cell is made up of filter plate ,filter frame and pressboard .It is the pressboard that between filtering frame serves for filtration medium .Before it works ,you have to pump some liquor to the precoat ,that is pump the liquor mixed with diatomite to each filtering cell with pressure ,and pressure difference will be caused ,then the diatomite is adsorbed to pressboard well-distributed , and the precoat borned .When it works ,the liquor will pump to the machine first then to each cell .the pressboard will countercheck some sediment material and the limpid beer will come out .

4. Technical parameter

Model	Filter area( ㎡ )	Filter quality (t/h)	Size of the frame (mm)	Maximum working (MPa)	Quantity of Filter-plate	Pieces of vane	Paper-pate dimension (mm)	Maximum working pressure(MPa)	Length×width×height(mm)	Grossweight (kg)
BTG-5	13.5	5	600×600	0.6	21	20	610×1230×3.5		3600×800×1310	2100
BTG-7	19	7			29	28			4175×800×1310	2350
BTG-8.5	23	8.5			35	34			4550×800×1310	2550
BTG-10.5	28.5	10.5			43	42			5140×800×1310	2800
BTG-12.5	34	12.5			51	50			5660×800×1310	3100
BTG-14	38	14			57	56			6560×800×1310	3350
BTG-16	43	16			65	64			6700×800×1310	3700
BTG-20	54	20	1000×1000		29	28	1015×2030×3.5	24	4810×1320×2100	6900
BTG-25	67	25			36	35			5150×1320×2100	7400
BTG-30	81	30			43	42			6400×1320×2100	7900
BTG-35	94	35			50	49			6780×1320×2100	8300
BTG-40	108	40			57	56			7560×1320×2100	8800
BTG-45	121	45			64	63			7940×1320×2100	9600
BTG-50	135	50			72	71			8370×1320×2100	9800
