PVDF Membrane Filter Cartridge,China T.S Filter price supplier

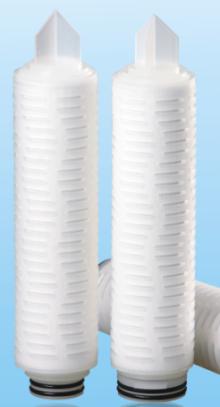

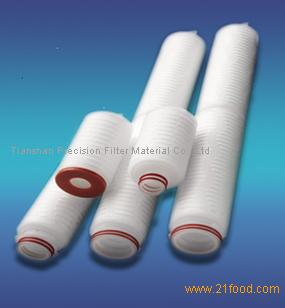

PVDF Membrane Filter Cartridge

FOB Price:Price can be negotiated

Production Capacity:10000PCS/MONTH

Payment Terms: T/T IN ADVANCE

Update Time:2012-02-06

Contact Supplier

Product Description

Main Features:

Applications: (mainly for winery, chemical and electronical inudstry )
* Bacteria removal for winery industry;
* Gas filtration for electronic industry, biological engineering, precision mechanical industry;
* Air filtration in aseptic packing industry;
* Ozone filtration for Mineral Water and purified water;
* Bacteria removal filtration for all kinds of organic solvent.

Water flow rate with different pressure ( 10")

PVDF Membrane Filter Cartridge

Quality Assurance:

i)	ISO9001:2000 certified company;
ii)	Pharmaceutical grade material;
iii)	imported membranes(USA/Germany) or local membrane for options;
iv)	Pharmaceutical grade workshops;(according to GMP criterion);
v)	100% Integrity test and other strick test before packing

i)	High flow rate with low pressure drops;
ii)	High particle removal efficiency;
iii)	Superior performance of high-temperature and acid&alkali
iv)	Easy installation, replacement and maintenance;
v)	Long service life.

Specifications & Technical data

Material	Membrane:	PVDF
	Core:	polypropylene/sus304L
	O ring/Gasket:	Silicone/Viton/TEV/EPDM
Specifications:	Pore size (um):	0.20, 0.45, 0.80, 1.00, 3.00
	Outer Diameter(OD):	68mm / 70 mm (can be decided by client)
	Length (inch):	10, 20, 30, 40
	Endcaps:	DOE, SOE (code2, code3, code7, code8)
Technical data:	Effective filtration area (10"):	≥0.6 M2
	Normal working temperature:	≤65 / 149
	Max. working temperature:	90 / 194(P≤1.0 bar)
	Max. differential pressure:	4.2 bar
	PH value:	1-13
	Sterilization method:	Autoclaving (121±2 ) within 30 minutes
	water flow rate with different pressure	see the chart
Test:	100% integrity test :25 ; ≥95% Ethanol
Test:	0.2um≥0.70 bar; 0.45um ≥ 0. 50bar

Other Products

PPES/PP Membrane Filter Cartridge

PES Membrane Filter Cartridge

PVDF Membrane Filter Cartridge

PTFE Membrane Filter Cartridge

Company Profile

Name: Tianshan Precision Filter Material Co., Ltd

Main Products: Membrane Filter Cartridge,Activated Carbon (ACF) Filter cartridge,Titanium Alloy(TI) Filter Cartridge,Stainless Steel Sintered Filter Cartridge

Business Type: Manufacture

Total Employees: 20 ~ 50

Established Year: 1992

Total Annual Revenue: US$2.5 Million - US$5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe,

Address: 2630 Nanhuan Road, Binjiang Hi-Tech Zone, Hangzhou, China.

Established in 2001, Tianshan Precision Filter Material Co., Ltd. which is a professional producer of filter-cores and filters is located in the world famous tourism city - Hangzhou, enjoying very convenient transportation networks.
    Tianshan Precision Filter Material Co., Ltd. specialized in supplying various kinds of filter cartridges and filters, including Pleated Nylon Membrane Filter Cartridge, Pleated PES Membrane Filter Cartridge, Pleated PP Membrane Filter Cartridge, Pleated PVDF Membrane Filter Cartridge, Pleated PTFE Membrane Filter Cartridge, Pleated Activated Carbon Fiber Filter Cartridge, Antiseptic shell filter, stainless liquid filter and so on.
    The materials for making pleated filter cartridges are mainly imported from USA and German, so all the materials can meet the demands of Class six biological safety standards in XX version of United States Pharmacopoeia and China state standards GB-9688-88 and GB/T17219-1998.
    The workshops of the company can meet the demands of GMP criterions, and advanced production lines and quality monitoring systems are installed to produce pleated cartridges and stainless steel filters according to ISO9001:2000 International Quality System. The company produces complete product series with good performance and stable quality, and everything has been done to meet the demands of GMP criterions. The products can be used widely in many different industries including medicine production, biological engineering, food and beverage production, electronic industry, galvanization, fine chemical industry, super purification of water and sewage processing etc.
    Due to our sincerity in offering products of high quality and competitive price to our customers, we have obtained the trust of buyers worldwide. And of course, the company cherishes its reputation very much, and works hard to learn and import advanced technologies from companies at home and abroad in the hope of improving product quality constantly, and provides excellent before-sale and after-sale services. The efforts of the company have won lots of praises and supports from the customers.
