14 Heads Automatic YB-420 Advanced Lollipop Candy Vertical Packing machine,China YB price supplier

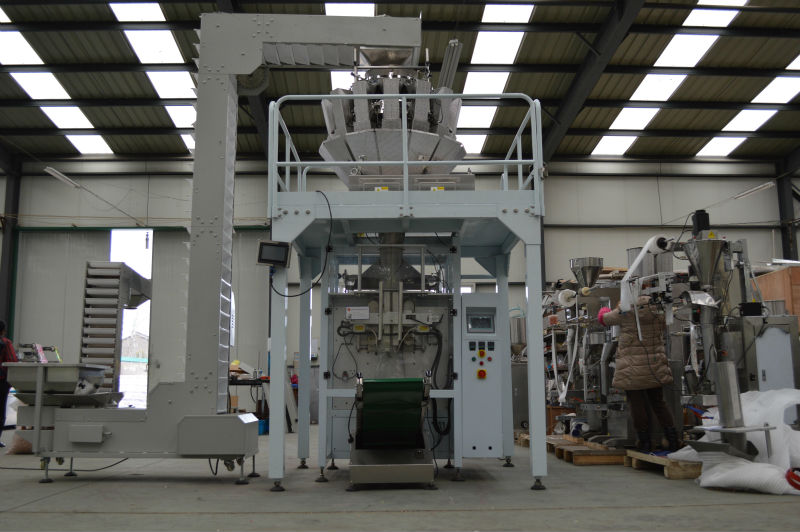

14 Heads Automatic YB-420 Advanced Lollipop Candy Vertical Packing machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $26,000 - 27,000 / Set

Update Time:2014-09-26

Contact Supplier

Product Description

14 Heads Automatic YB-420 Advanced lollipop Candy Vertical Packing machine
1.CE
2. One year warranty

14 Heads Automatic YB-420 Advanced Lollipop Candy Vertical Packing machine

Usage :

It’s suitable for packing cereal granular such as fertilizer, potato chips,

flour, milk powder, puffy food, jelly candy, rice, grain,sugar, Coffee. sprout, dumpling,

chocolate, medicine, pet food, etc.

Main function/features:

Chinese/English touch screen, easy/convenient operation and reliable

PLC computerized control system, more steady operation. Set any parameters when using.

Storage 10 groups parameters for easier replace products
Servo Motor Packing film dragging, precise positioning
Independent temperature control systems, precision can reach ± 1 °C
Independent control for horizontal seal, vertical seal can be a good
Packaging style diversification, back sealing, Gusseted, continue bags, punching and so on.
Product bag, sealing, packaging, date printing ,all finish in one-time
Quiet working environment, low noise

Technical parameter: (YB- 4 20)

M aking bag size	L: 80-300mm W: 80-200mm
Packing speed	25-8 0 bags/min
Electric sou r ce and power	AC220V, 50/60Hz, 3 kw
Compressed air costs	6-8kg/m 2 , 0.15 m 3 /min
Machine weight	500KG
Machine dimension	L165 0×W13 00×H17 00mm

Number	Equipment
1	YB-420 Vertical Packing machine (carbon steel)
2	Z Type Elevator (load lift carbon steel)
3	14 heads Stainless Steel electronic weighter
4	Platform (carbon steel)
5	Finished Product Conveyor (optional)
6	Expiry Date Printing Device (optional)

Type:	Other	Condition:	New	Application:	Commodity,Medical
Packaging Type:	Film	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	3.0kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-420k
Weight:	500kg	Dimension(LWH):	1.65m1.3m1.7m	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Making bag size:	L: 80-300mm W: 80-200mm	Packing speed:	25-80 bags/min
Electric source and power:	AC220V, 50/60Hz, 3kw	Machine weight:	500KG	Machine dimension:	L2000W1800H1800mm
Mareial:	almost all items
