soft ice cream machine
1.304stainless steel
2.2 Copeland compressors ,1 Mitsubishi motor
3 .precooling function
4.CE

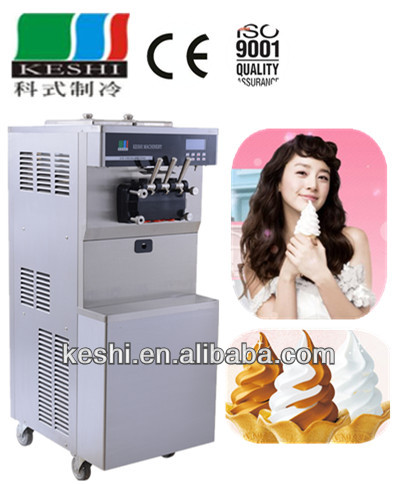

KS-5200 series high quality 3 flavors commercial soft ice cream machine /yogurt machine
(We are s ole ice cream making factory at shang hai in China!!)
Our advantages of soft ice cream machine:
1. LCD control panel with counter .
2. low noise (50-60 dB) .
3. A variety of voltage and frequency selection (110V/220v/380v 50Hz/60Hz)
4.Refrigerant R404a , pre-cooling system.
5. OEM/ODM is avaliable.
Parameters of our KS-5200 series for your reference:
Model | Number of flavor | Material of shell | Brand of compressor | Number and parameter of compressors | Brand of motor | Number and parameter of motor | Number and brand of fan |
KS-5226 | 3 (2+1 mix) | front and two flanks shell with 304 stainless steel | America Copeland | 2/(1.25HP+1/8) | Mitsubishi | 1/1HP | 2/Hangzhou Weiguang |
KS-5236 | 2/(1.5HP+1/8) | ||||||
KS-5246 | French Tecumseh | 2/(1.75HP+1/8) | |||||
KS-5256 | 2/(2HP+1/8) |
Model | Number of condensor | Volume of Refrigeration cylinder | Volume of material cylinder | Danmark Danfoss Expansion valve | Output (L/H) | Average amount of cups/H (75g/cup) | Voltage (V) |
KS-5226 | 2 | 2.3LX2 | 6.5LX2 | yes | 30 | 60-80 | 220 |
KS-5236 | 2.3LX2 | 40 | 100-120 | 220 | |||
KS-5246 | 2.7LX2 | 50 | 120-150 | 380 | |||
KS-5256 | 2.7LX2 | 60 | 150-200 | 380 |

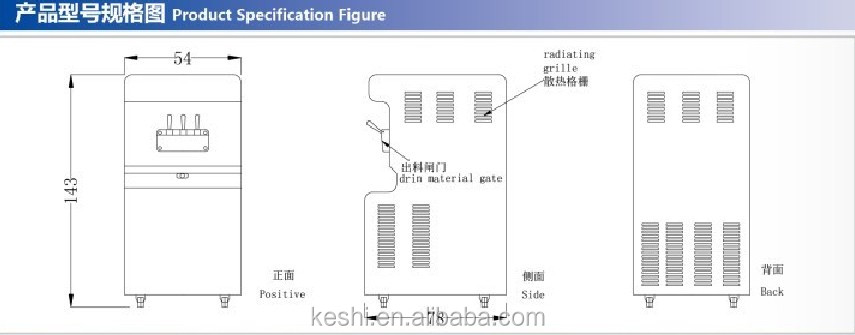

Model | Power (W) | Net size (cm) | Package size (cm) | Net weight (Kg) | Groos wieht (Kg) | Pre-cooling function |
KS-5226 | 1800 | 54X72X135 | 65X80X150 | 165 | 190 | yes |
KS-5236 | 2000 | 54X72X135 | 65X80X150 | 170 | 195 | |
KS-5246 | 2400 | 59X77X145 | 67X85X160 | 175 | 200 | |
KS-5256 | 3200 | 59X77X145 | 67X85X160 | 180 | 205 |
CE certificate of ice cream machine :

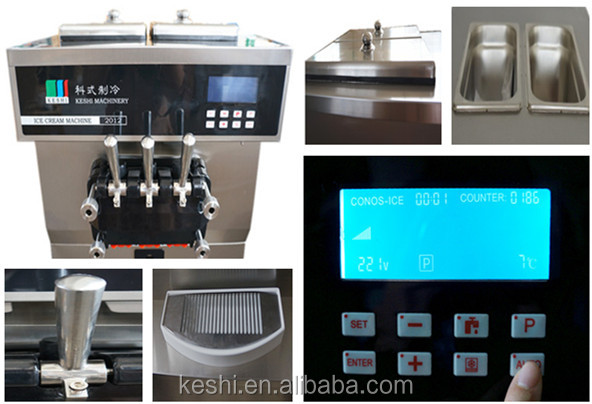

Futures of our soft ice cream machine:

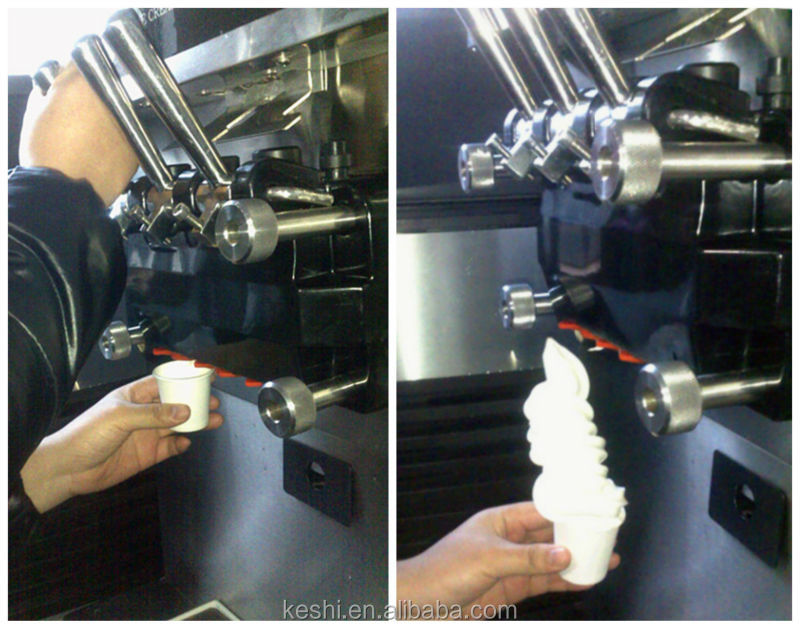

Testing machine:
Inner config urations :

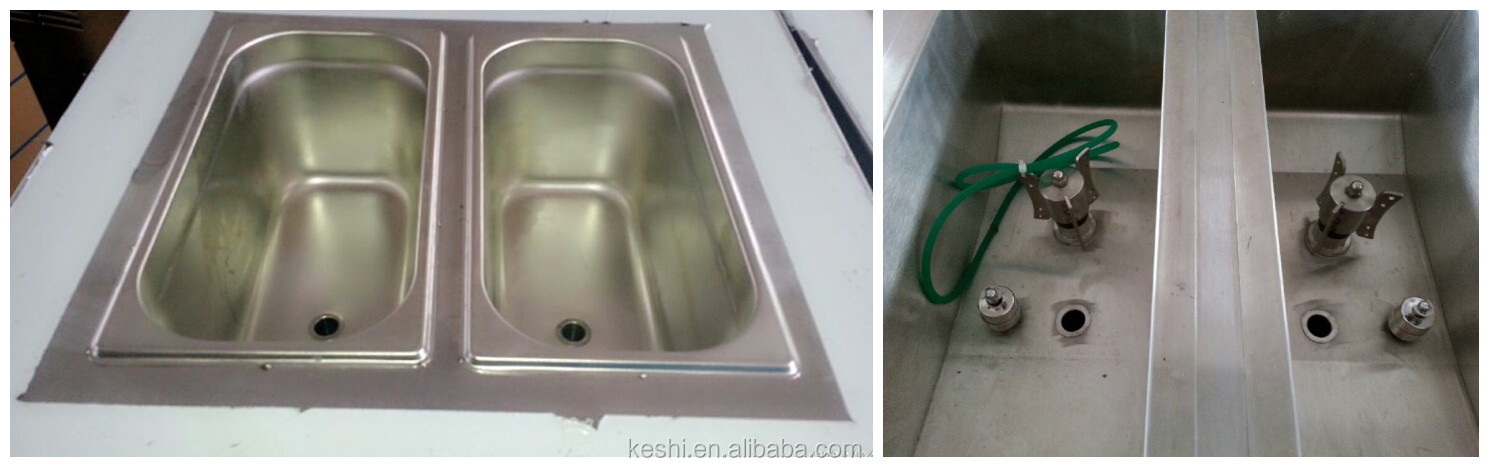

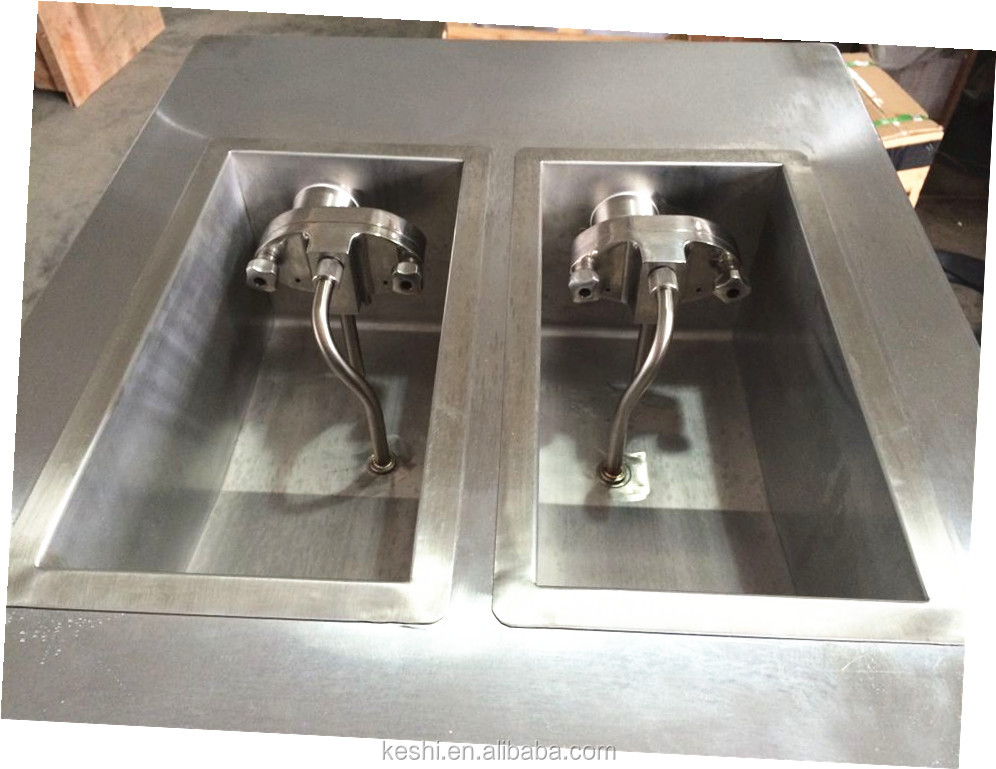

Common hopper and hopper with agitators:
Hopper with 304stainless steel air pump:

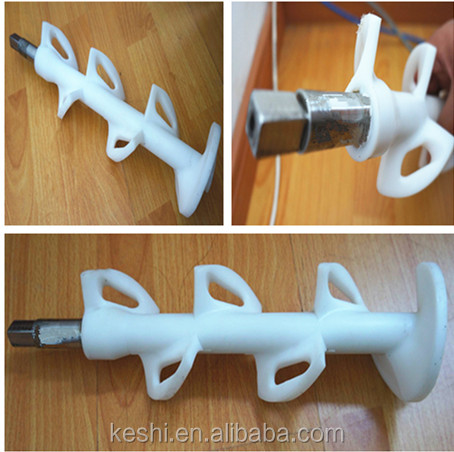

Beaters in the refrigeration cyliner:
Standard export package:

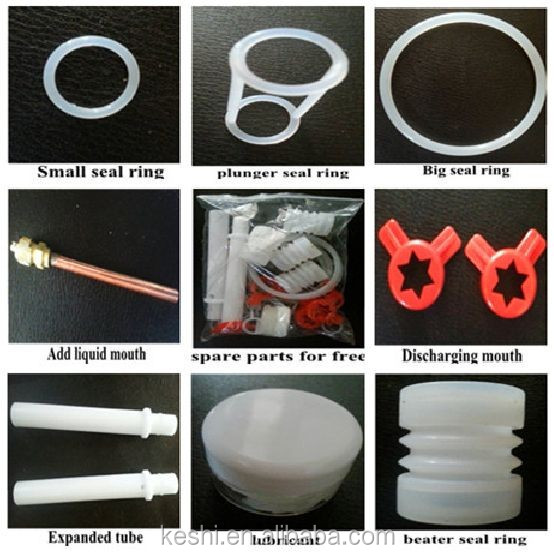

Spare parts for free with every machine :

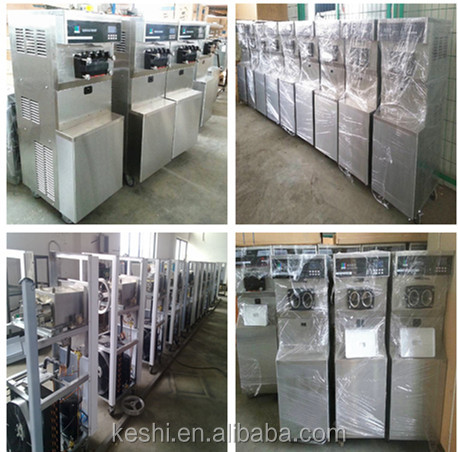

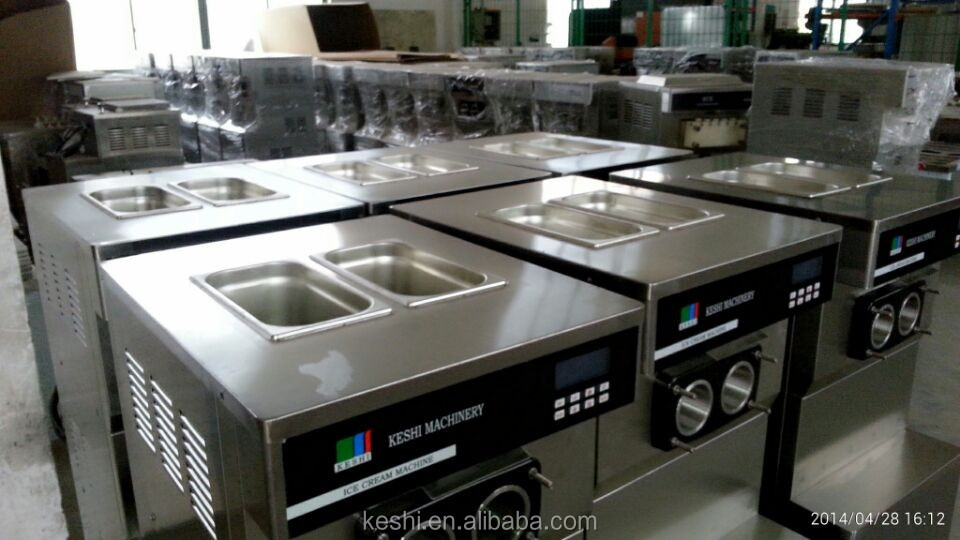

Finished machne and workshop :
Every year fair:
Condition: |
New
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
KE SHI
|
Model Number: |
KS-5200 series
|
Application: |
Ice Cream
|
Voltage: |
220V-380V 50HZ/60HZ
|
Power(W): |
1800-3200W
|
Weight: |
180-205kgs
|
Dimension(L*W*H): |
54*72*135-59*77*145cm
|
Certification: |
CE and ISO9001 certificates
|
Warranty: |
1 year for the whole machine,3 years for compressor
|
After-sales Service Provided: |
Overseas third-party support available
|
Brand: |
KESHI
|
Material: |
304 stainless steel
|
Flavor: |
three falvor 2+1 mix
|
Panel: |
panel with counting,easy operation,elegant appearance
|
Control panel: |
LCD
|
Compressor: |
Imported America Copland
|
Motor: |
Imported Mitsubishi
|
Number of compressor: |
2
|
pre-cooling system: |
Yes
|
Keyword: |
soft ice cream machine
|
