2014 new products 4 chutes with 256 channels rice mill for color sorter,China JIETAIZHINENG price supplier

2014 new products 4 chutes with 256 channels rice mill for color sorter

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $10,000 - 40,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

Lass="description"> Rice mill
1.2048 pixel ccd
2.Detecting area 0.04 square millimeter
3.High capacity
4.Superb after-sale service

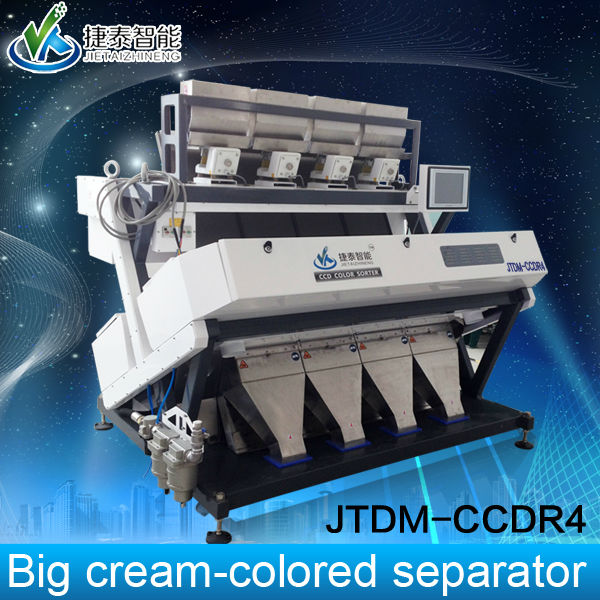

2014 new products 4 chutes with 256 channels rice mill for color sorter

Technology Advantage(Seven Core Advantage)

Chip--Top Computering and processing power

The Chip imported from America

Operation Interface--Simple and Easy

Multilingual operation Interface

Oversized 10 inch color touch-screen display, easier commissioning and operation

Many setting modes to meet the demand for the more color sorting algorithm

Light source technology--most advanced in china

Unique double LED source with cooling system

Higher stablility,longer service life

Intelligent image processing algorithm -one of the best in China

Intelligent combined color and shape algorithm, most advanced in China

Unique color CCD algorithm most advanced in China that has been patent-protected.

Camera--best in the industry

Imported high-end 2048PIXELS CCD sensor

Tailor made CCD Camera

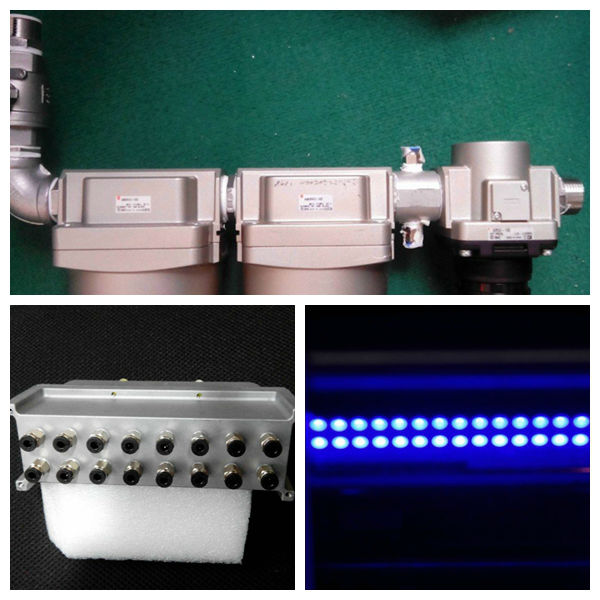

High-frequency solenoid valve --The leading domestic

Box valve is made of Alloy and the core technology is from Japan , Service life of more than one billion times.

Discharge outlet--Innovative Design

adjustable damper ,patent design and Unique

To achieve the optimized carryover and improve the processing efficiency

The Technical Specification is as following:

Model	CCD240		CCD320	CCD400		CCD480
Throughput(T/H)	3- 8		4- 11	6- 13		7- 15
Sorting Accuracy	≥ 99.99%
Primary optimized carryover	3: 1
Secondary optimized carryover	≥ 8 : 1		≥ 8 : 1	≥ 8 : 1		≥ 8 : 1
Voltage(V)	AC220V , 50HZ
Power(KW)	1.0-2.5	1.2 - 3 .0		1.4- 3.5			1.6 - 4 .0
Air Pressure(Mpa)	≥ 0. 6
Air Consumption(L/min)	1000-1800		1200-2500		1500-3000			1800-3600
Weight (Kg)	900kg		1100kg		1300kg			1500Kg
Dimension(mm) L × W × H	1674 × 1520 × 1800		1983 × 1520 × 1800		2319 × 1520 × 1800			2655 × 1520 × 1800

Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities

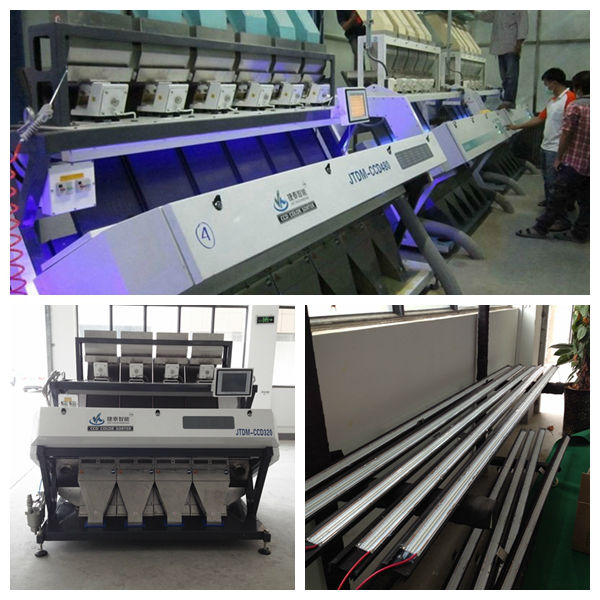

Machine Show

Application

Cooperaton

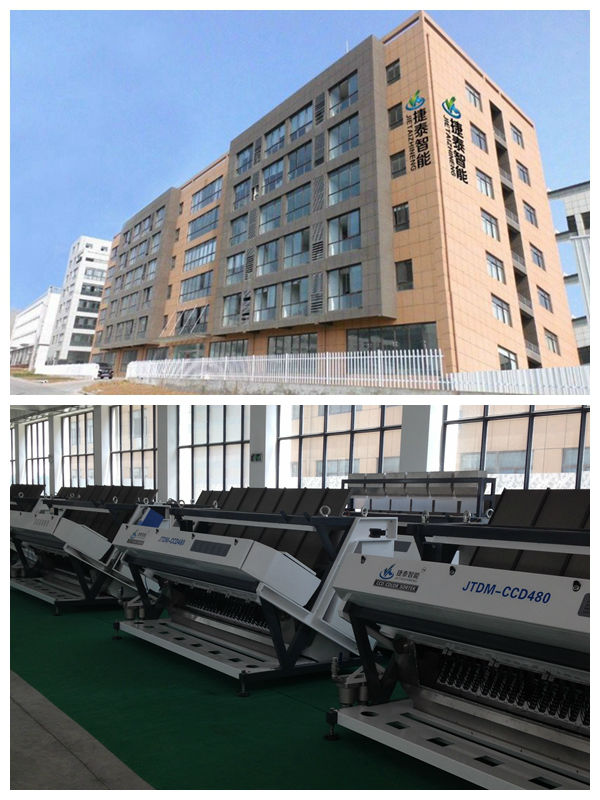

Factory Show

Choose us Benefit yourself

JIETAI look forward to work with new and old friends to build a long term cooperation and win-win relationship

Contact information :

Mobile:+8618949853294

+8618855183582

Tel: 0086 551 68121778

Skype:dawnqian02061

QQ:86865631

Website: http://www.ahjietai.com

Condition:	New	Place of Origin:	Anhui China (Mainland)	Brand Name:	JIETAIZHINENG
Model Number:	JTDM-CCD320	Production Capacity:	4~11 T/h	Voltage:	AC220V
Power(W):	1.2~3	Weight:	1100kg	Dimension(LWH):	198315201800MM
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas	Detect system:	doublesides cameras
Chutes:	320Channels	Sorting accuracy:	≥99.99	Primary optimized carryover:	3:1
Secondary Optimized Carryover:	≥8:1	Air pressure(Mpa):	≥0.6	Air Consumption:	1200~2500
