2014 year ZZ YUANYANG hot selling soybean oil production extraction machine,China zhengzhou yuanyang price supplier

  .

oil extraction process

Raw material →  pre-treatment → prepreg → leaching

leaching → wet cake → desolventizing → drying → cooling → finish meal

                                                                        ↓

                                                            solventsteam → condensate → divide water → solvent tank → leaching

1. extraction Introduction

(1) Function : Leaching system is an oil extraction through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.

(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.

(3) Main parts: The extraction series includes rotary extractor, toaster, 1st Evaporator, 2nd evaporator, stripping tower, Condenser, etc.

2. Main parts

(1) Solvent pumps: continuously spray solvent to the rotary-type extractor

( 2).Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).

(3). DTDC: usd to separate the solvent from the wet meal.

(4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.

(5). Miscella tank 2nd: the purified miscella will be pumped into it.

(6). Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

(7). condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

3. Main Process

(1) The material (for pretreatm ent) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,so that we can make flow chart Production Line for you as your requirement. we will stand at your point to suggest

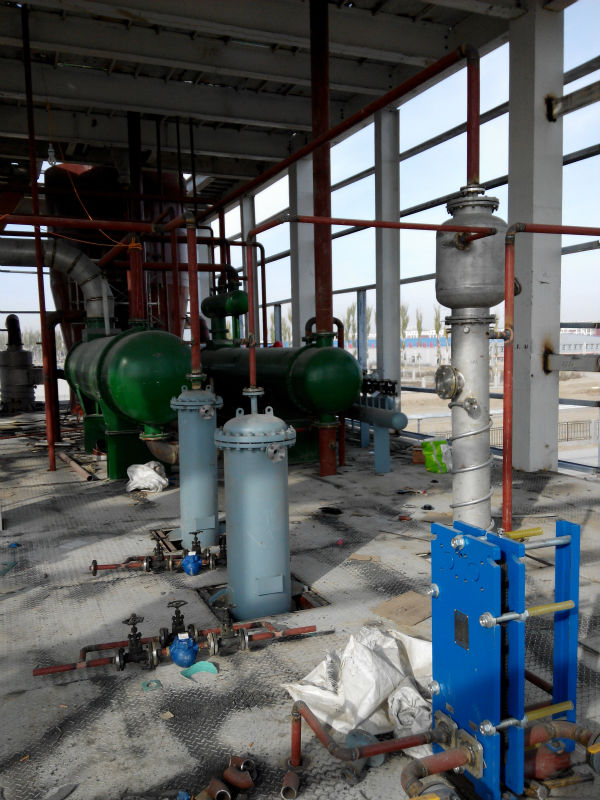

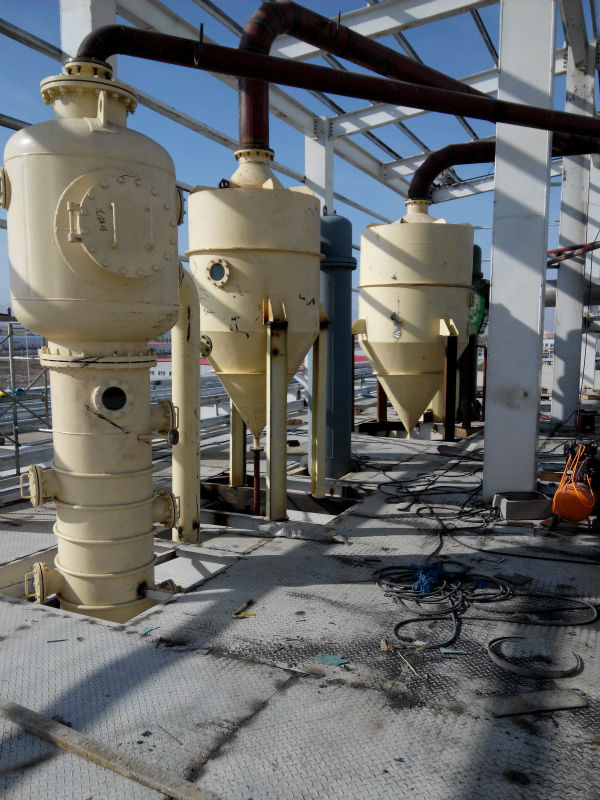

                                        condensate machine

                                             solventsteam machine

                                              ectraction machne

                                            extraction machine

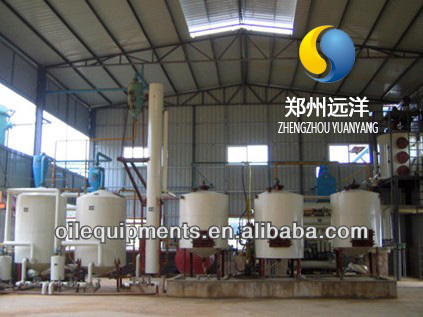

                                          extraction workshop
