250ml-800ml Plastic bag pouch water filling & sealing machinery,China Angel price supplier

250ml-800ml Plastic bag pouch water filling & sealing machinery

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Year 250ml-1000ml Pla

Payment Terms: US $2,000 - 3,000 / Unit

Update Time:2023-02-05

Contact Supplier

Product Description

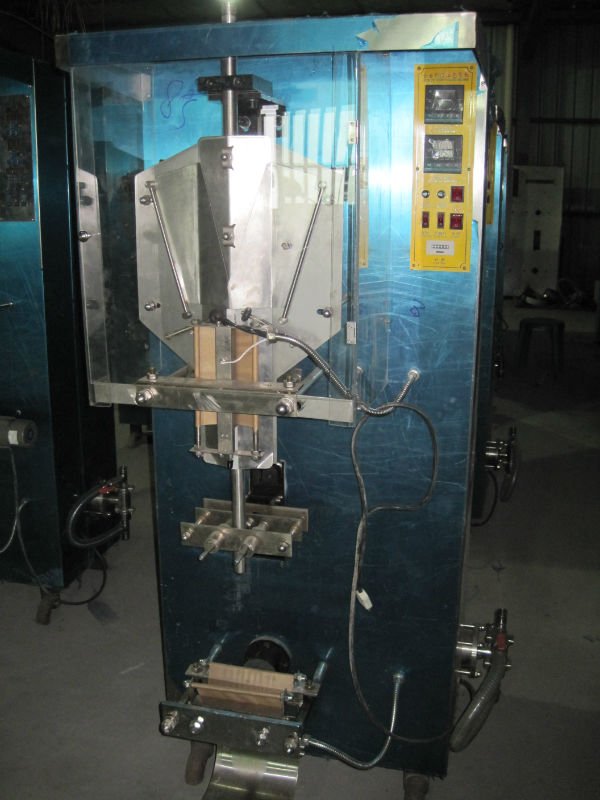

Plastic bag pouch water filling & sealing machine
1)Photocell for option
2)Best-selling
3)Low price, high quality.
4)SUS 304

250ml-800ml Plastic bag pouch water filling & sealing machinery

Product Description

This machine can be widely used for packing various kinds of air –free liquid, especially for bag packing of soy sauce, vinegar, fruit juice and other beverages (or iced beverage), bean milk, milk, mineral water, bean curd and liquid chemical products.


Specially pouch Filling Machine	250ml-700ml big bag filling machine	Pouch filling and cap

250ml finish product	10L finish product	finish product

Technical Parameters

Production Rate: 1500~2000 bags/h (for beverage like bean milk, milk, sauce, vinegar, etc).

Packing Capacity: 50~500ml/bag (step less adjustment)

Precision of Film: 240mm~320mm (optional)

Power: Motor 1 KW

Vertical sealing: 0.3KW;

Transverse sealing: 0.5KW.

Ultraviolet sterilize lamp: 15W

Voltage: 220V 50Hz

Weight of Machine: 400KG

Oversize: (LxWxH) 97x87x197cm

Product Description

00ml Plastic bag pouch water filling & sealing machine

liquid packing machine	SOME FILM FOR REFERENCE
500ml pouch finish product	very popular

liquid packing machine

SOME FILM FOR REFERENCE

500ml pouch finish product

very popular

Functions

(1) Bag-shaping (2) Ultraviolet sterilization

(3) Thermal vertical sealing (4) Date lamination

(5) Linear bag traction (6) quantitative filling

(7) Thermal transverse sealing (8) Bag-cutting

(9) Automatic counting

Maintenance

1, After use, wash away residual liquid in the pipe with water. Otherwise the residual liquid will be degenerative and affect the quality of product of next production. Remove plastic pipe transfusion and clean it with a brush. Keep it clean and dry.

2, Regularly check moving parts and oiling state and oil the machine with sufficient 20# lubricant or lithium based grease at any time. Otherwise the operation will be out of order and that will severely affect service life of machine.

3, Regularly check the machine and clean away foreign matters on the surface of transverse copper block. It is not allowed to have encrustation on the surface. Otherwise thermal conductivity will be reduced, the temperature of copper will rise, and hot transverse sealing and thermal cutting bag will be out of order.

4, In the case of finding abnormal phenomena, cut off power supply immediately. Restart after troubleshooting.

5, During production in winter with temperature under 0°C, unfreeze the ice in quantitative pump and the pipes with hot water. Otherwise, connecting rod will be broken or the machine does not work.

Packaging

Our Customer

With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, North America and Africa. Also enjoy a good reputation among our customers.

After sales service

•Find our products through http://angeljm.en.alibaba.com/ /

• Alibaba ,Made in China,GlobalMarket,globalsources etc

• One year warranty for the whole system .

• Free equipment installation and debugging.

• After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.

• Every 3 year , we can help to overhaul the machine freely(labor).

• We can provide internship service and help you train the operator and mechanic.

• Free production technology and process configuration.

• We can help you to design the product line , workshop and provide turn-key project.

Warm Reminder

Angel Drinking Water equipment co.,ltd all staff warmly welcome new or old customers come for consultation, we will be making detailed project plan, to realize low cost, high efficiency and scientific process combination. In order to make pouch filling machines achieved your ideal requirements.....

250ml-500ml Plastic bag pouch water filling & sealing machinery

Welcome to visit our factory.
Any inquiry please feel free to contact me directly.
Contact :Cosmo Liang (0086-15602885393)

Type:	Filling Machine	Condition:	New	Application:	Beverage,water,LIQUID
Packaging Type:	Stand-up Pouch,Bags,Pouch	Packaging Material:	Plastic,Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	Customized,110-460V 50-60HZ	Power:	6.3KW
Place of Origin:	Guangdong China (Mainland)	Brand Name:	Angel	Model Number:	JM-YT-1000bags-2000bags
Dimension(LWH):	1000X800X1800MM	Weight:	350KG	Certification:	CE CCC ISO
After-sales Service Provided:	Engineers available to service machinery overseas	Business Type:	Manufacturer,Trading Company	Product name:	250ml-1000ml Plastic bag pouch water filling & sealing machine
Installation & training:	11 years experience engineer	Production Rate:	1000~2000 bags/h	filling type:	beverage like bean milk, milk, sauce, vinegar, etc
Packing Capacity:	50~500ml/bag	Precision of Film:	240mm~320mm
