3 in 1 Automatic juice filling equipments,China SHEENSTAR,Sheenstar price supplier

3 in 1 Automatic juice filling equipments

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $8,000 - 50,000 / Set

Update Time:2014-09-11

Contact Supplier

Product Description

1. bottle Filling Machine
2. production capacity: 1000bph-30000bph
3. easy to maintain
4. model: CGF
5. advanced technology

CERTIFICATES

Detailed Description:

Drinking Water Filling Line/Liquid Filling Line
(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

(3)The machine is used in filling juices, Mineral Water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

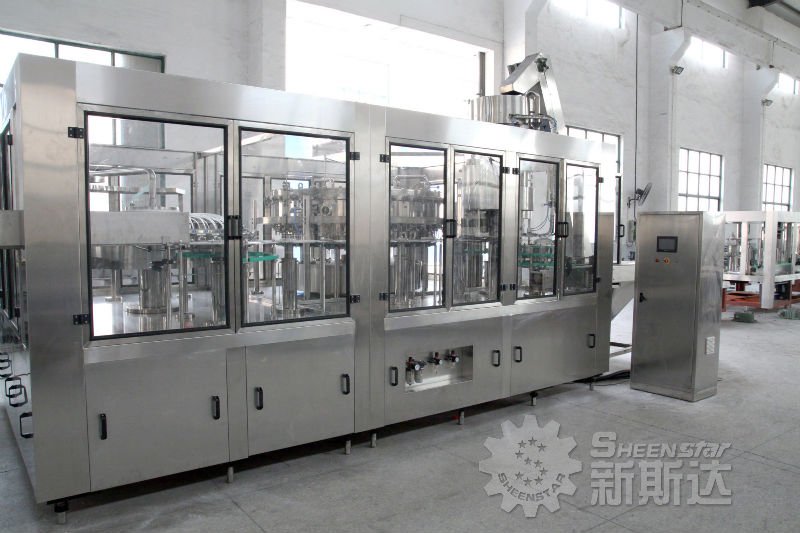

Product pictures show

Main Technical Data
Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150

When you send inquiry,please also included the capacity and bottles shape and bottle volume you need to work on the machine , it is easy and accurately for us to recommand a right machine!

If any special,our manufacture also can design the machines according your requirement

Product Type:	Juice	Brand Name:	SHEENSTAR,Sheenstar	Model Number:	DD
Place of Origin:	JIA,Jiangsu, China China (Mainland)	Certification:	ISO	Packaging:	Barrel,Can (Tinned),Glass Bottle,Plastic Bottle
Name:	Bottle filling machine	Feature:	Automatic	Material:	sus 304
Color:	silver grey,Sliver grey	Type:	Mineral Water	Source:	Ground

Other Products

Automatic coconut water machine

hot filling coconut water machine

coconut water bottle filling plant

Automatic coconut water processing plant

Company Profile

Name: Zhangjiagang Sheenstar Technology Co., Ltd.

Main Products: Beverage machine: Filling machine (Water filling machine,Carbonated drink filling machine,Juice/tea filling machine),Water treatment system(producing only beverage)

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Mid East, Southeast Asia, Domestic Market, South America, Africa

Address: Zhaxi Village, Leyu Town, Zhangjiagang

Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client's requirements.
We supply our machines Mainly to South East Asia, Middle East, Africa and South America and South East,more than 40 countries.
We have been focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.
We supply high quality machines and great professional after-sale services. Our goal is to make customers satisfied and value maximized. We normally provide 12 months warranty and 12 months wear out spare parts. Engineers are available to go to customer's factory and install machines,teach them the way to maintain the machines.
Sheenstar is located in the Yangtze River Industrial Park of Zhangjiagang City which is near by Shanghai. Transportations are very convenient.
Welcome to visit our factory and evaluate our products. Hope to cooperate with you. more
