3 in 1 coconut water machine,China SHEENSTAR price supplier

3 in 1 coconut water machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month 3 in 1 coconut w

Payment Terms: US $10,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

1.3 in 1 COCONUT WATER machine
2.Certificates:BV,CE,ISO,SGS
3.Control:PLC
4.filling material:PET

3 in 1 coconut water machine

Introduction

1.The machine is mainly used for bottling juice ,such as apple juice ,mango juice,orange juice,and other fruit juice.It can also be used for bottling water ,such as pure water and mineral water.

2.The full automatic fruit juice Filling Machine include washing part ,filling part,and sealing part,all of the process is automatic.

3. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.
4. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automaticly,
5. Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.
6. It is convenient to operate with higher auromation because everypart of the machine is inspected to run with photo electicity.

7.The machine can be produced acoording to your requiements,because we are professional beverage processing manufacture.

3 in 1 coconut water machine

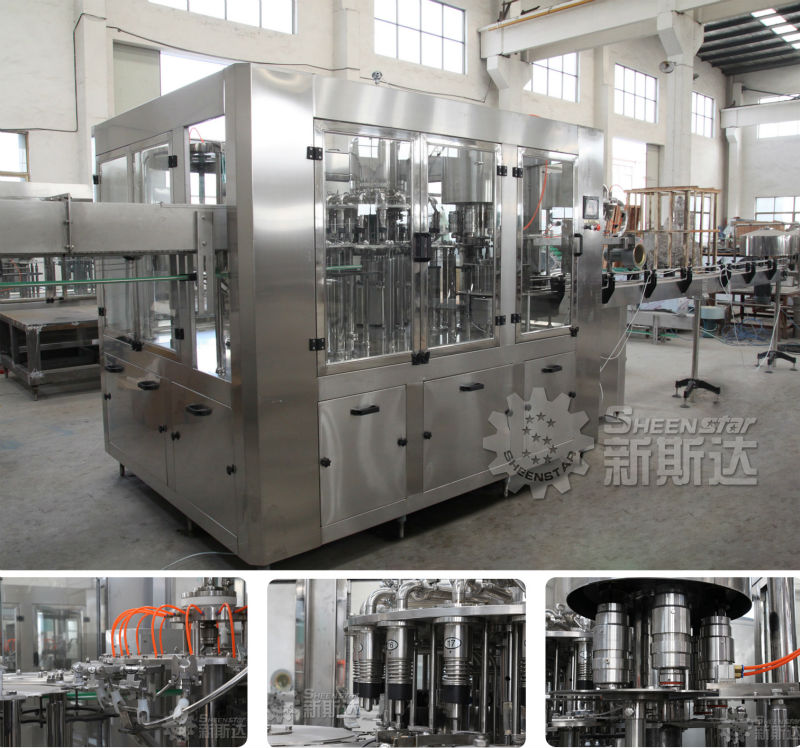

Details show

Washing part

Filling part

Capping part

3 in 1 coconut water machine -- Technology parameters

Main Technical Data
Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150

3 in 1 coconut water machine --Welcome to SHEENSTAR!

Any question about 3 in 1 coconut water machine ,please don't hesitate to contact us.Providing your bottle size and capacity(how many bottles per hour)will be appreciate!

3 in 1 coconut water machine

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage
Packaging Type:	Bottles	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V-330V	Power:	7.68KW
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	SHEENSTAR	Model Number:	ZZ
Dimension(LWH):	243018002250	Weight:	3000KG	Certification:	BV,CE,ISO,SGS
After-sales Service Provided:	Engineers available to service machinery overseas	Model:	3 in 1 coconut water machine	Feature:	washing filling capping 3 in 1
Warranty:	1 year	Material:	SUS304 for 3 in 1 coconut water machine	Cetification:	BV,CE,ISO,SGS for 3 in 1 coconut water machine
Brand:	SHEENSTAR	Filling Type:	Juice filling	Filling Bottle Material:	PET,Plastic
Control:	PLC for 3 in 1 coconut water machine	Keyword:	3 in 1 coconut water machine

Other Products

Automatic coconut water machine

hot filling coconut water machine

coconut water bottle filling plant

Automatic coconut water processing plant

Company Profile

Name: Zhangjiagang Sheenstar Technology Co., Ltd.

Main Products: Beverage machine: Filling machine (Water filling machine,Carbonated drink filling machine,Juice/tea filling machine),Water treatment system(producing only beverage)

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Mid East, Southeast Asia, Domestic Market, South America, Africa

Address: Zhaxi Village, Leyu Town, Zhangjiagang

Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client's requirements.
We supply our machines Mainly to South East Asia, Middle East, Africa and South America and South East,more than 40 countries.
We have been focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.
We supply high quality machines and great professional after-sale services. Our goal is to make customers satisfied and value maximized. We normally provide 12 months warranty and 12 months wear out spare parts. Engineers are available to go to customer's factory and install machines,teach them the way to maintain the machines.
Sheenstar is located in the Yangtze River Industrial Park of Zhangjiagang City which is near by Shanghai. Transportations are very convenient.
Welcome to visit our factory and evaluate our products. Hope to cooperate with you. more
