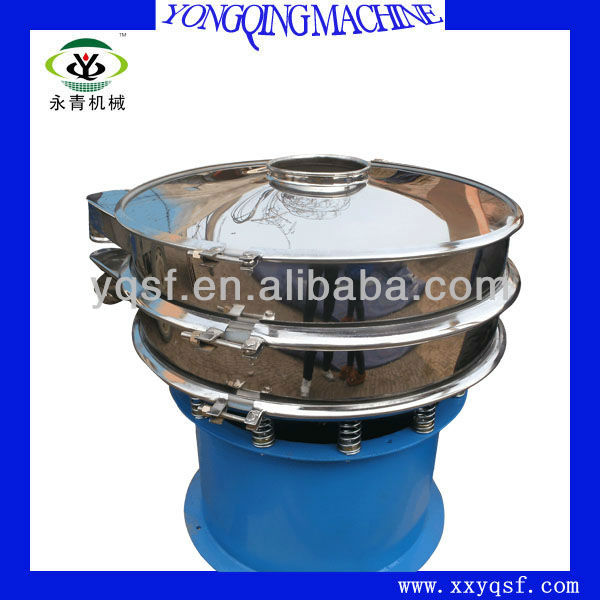

3 phase circular vibrator screen sieve for black pepper

1.  How to work??

a.    Centrifugal motion.

   The vertical vibrating motor is the vibrating power of machine. And there are two eccentric blocks on the motor’s upper and down. The eccentric blocks make cubic element movement (horizonal, up-down, and tilting). The centrifugal motion will control the material running track.

b. how to finish the screening?

   According to the material‘s size, choosing the suitable mesh size, the screening and filtering can be finished well.

2.     How to choose machine material??

Three machine material are supported. ALL STAILESS STEEL; ALL CARBON STEEL, CONTACT PART STAINLESS STEEL;

a.   Used for mining, construction, etc industry, all carbon steel is well recommended.

b.   Used for chemical, papermaking, environmental protection, etc, the contact part stainless steel well recommended.

c.   Used for food, medicine, etc, all stainless steel are well recommended.

3. How to choose layer???

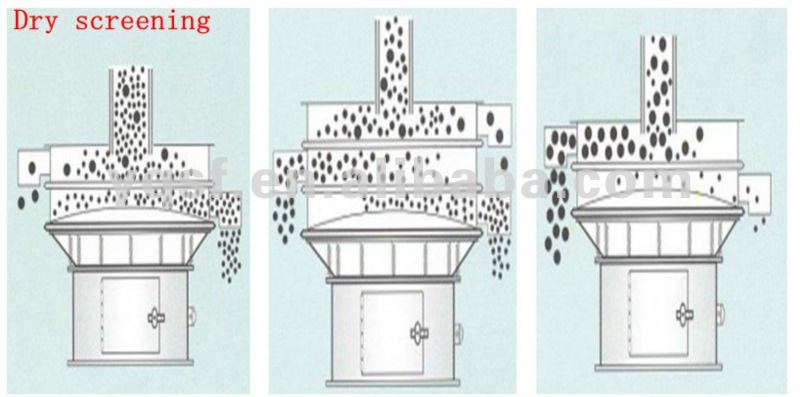

a.   Removing impurity. Generally, single layer is recommended for removing impurity.

b.   Screening, filtering and grading. If the material size include 2 kinds, single layer is available; if the material size is 3 kinds, two layers are suitable; If the material size is four kinds, three layers are recommended. The rest can be done in the same manner.  5 layers are supported at most on a machine.

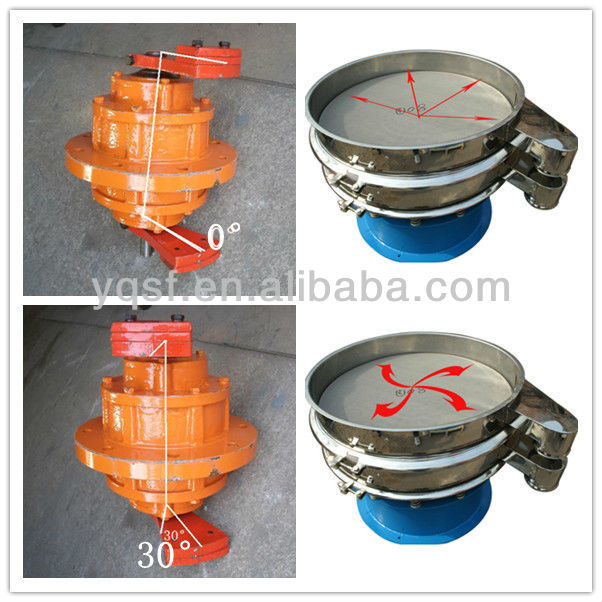

4. How to adjust material motion trail??

      By changing the eccentric block’s included angle (the upper and down), the material motion trail will be changed.

5. How to change sieve mesh??

The reference video will be sent on requirement.

6. How to get a suitable machine??

Pls provide the follow information for us.

a. material name, the density, water content(%).

b. the necessary capacity you required(per hour)

c. Machine material. Pls choose one:

    1. SUS 304 or SUS316

    2. All carbon steel 235 A

    3. The contacting part is SUS304, the other parts is carbon steel.

d.    the dimension of the machine can be designed for you.

e. Pls inform the voltage, and frequency (50HZ or 60HZ).

f. Additional parts, like the mobile wheel, removing-dust hole and  noise-proof base, can be easily fixed and maintained

7. Technical Date

8. How to packing

Fumigation-free wooden case, one set/case. 8-12 cases/20GP.  10-16 cases/40GP.

9. How to order

    Our company is built in 2006, located in XinXiang City, Henan, China, near Zhengzhou International Airport. We are the professional manufacturer of Vibrating Screen, Vibration Motor, Vibrating table, Conveyor system.

10. Market

    With good quality and competitive price, So far, our equipments have entered Russia, Canada, USA, Australia, New Zealand, Argentina, Paraguay, Chile, Lithuania, Bulgaria, Hungary, Spain, Africa, Malaysia, Vietnam, Indonesia, Thailand, Singapore, etc, more than 25 countries.

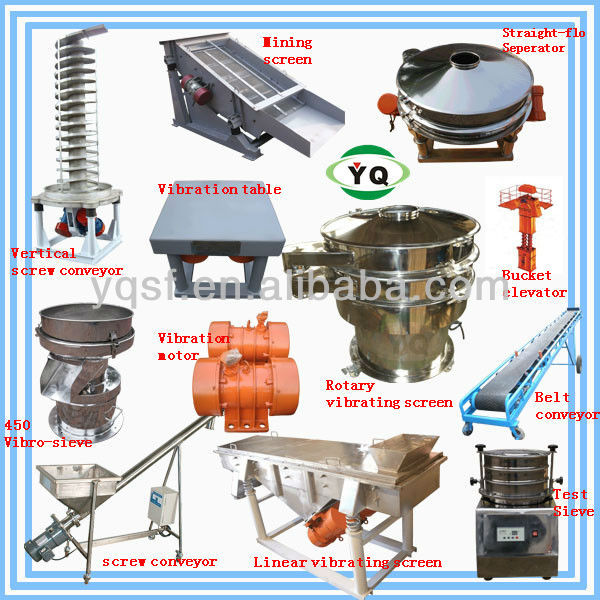

Maybe you are interested in the follow machines:

FAQ :

1. What it does...

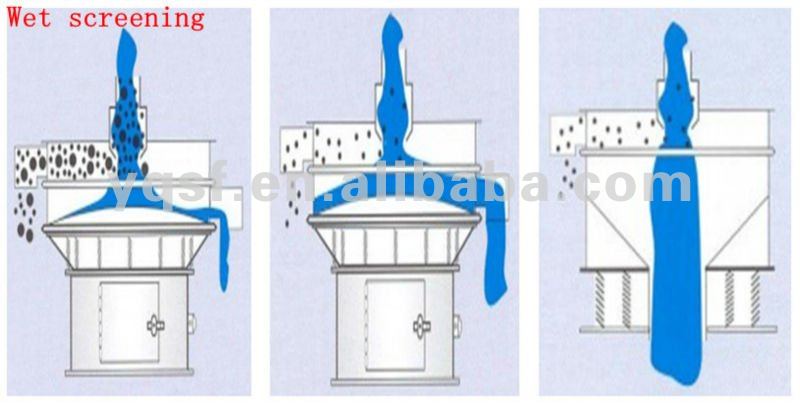

Separate solids from liquids or segregate dry materials into various sizes. Particles as fine as 400 mesh (37 microns) can be screened, with up to 5 screen decks incorporated in one XZS separator. No special flooring or foundation is needed and less working floor space is required. Simple and efficient design requires less horsepower. Other features include long screen life and ease with which screens may be changed.

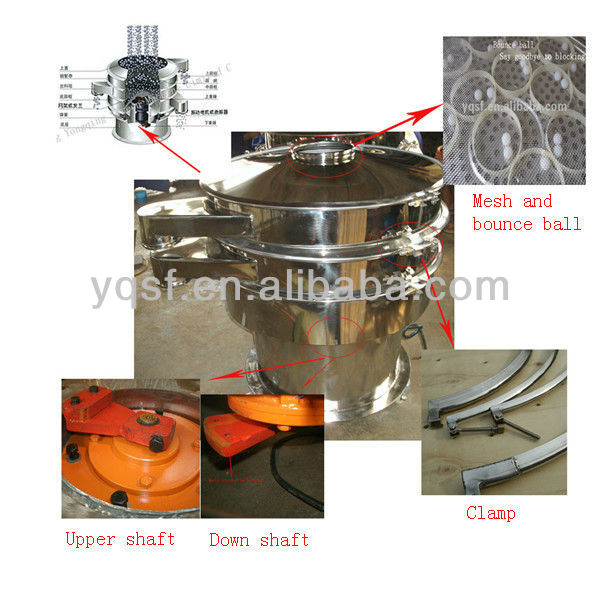

2. Any self-cleaning devices on the sieving machine

Yeah, the self-cleaning is a necessary structure on the rotary vibrating screen. Under each layer sieve mesh, there are some bounce balls. In the process of working, it will hit the sieve mesh ceaselessly to finish the self-cleaning. Besides this, it also can prevent the sieve mesh from being blocked.

3. How many kinds of material are supported???

A. All stainless steel (201, 304, 316L)

B. All carbon steel Q235A

C. Contact part Stainless steel.

4. About the phase

0.12-0.55 kw  single phase and three phase are both supported.

0.55-2.2 kw   Three phase is just supported.

5. About the voltage

110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).

6. How long is the warranty?

The warranty is 12 month (except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.

7. OEM order and labeling services are supported???

Yeah, OEM order and labeling services are supported. And we seek global partners.

9. Whether the site visits is supported or not???

Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. It takes about 1 hours from Zhengzhou airport to our factory.
