Food online > Products > Food Processing Machinery > Tank >

AJMTK Series Mixing Tank,China AojiaPack price supplier

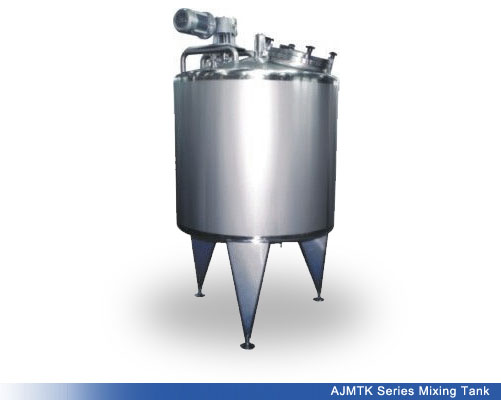

AJMTK Series Mixing Tank

FOB Price:Price can be negotiated

Update Time:2025-06-01

Product Description

Application: For uniform mixing, agitation and hydration of the various blended elements. It is an indispensable equipment in dairy, beverage and pharmaceutical industries.

Volume: Available from 500L to 10,000L at customer’s option

1. Material: Outer casing: Stainless steel SUS 304 Inner bladder: Stainless steel SUS 304 / SUS 316

2. Outer casing surface: Mirror polishing / 2B original sub-gloss / 2B frosted sub-gloss

3. Inner bladder surface: Mirror polishing (Roughness: Ra≤0.4μm )

4. Insulating layer: Warm-keeping layer of polyurethane foaming ensures temperature variation of the liquid product in the tank controlled at the minimum.

5. Liquid level gauge: Glass-type liquid-level gauge that is suitable for CIP cleaning

6. Thermometer: Temperature indication ranging from 0 -100ºC.

7. Sampling device : For easy taking of product samples

8. Agitation device: Paddle type agitation, rotation 72rpm, decelerater 1:20,

15 – 120rpm / frame type agitation, anchor type agitation are also available, depending on production technological request.

9. CIP cleaning: T-shaped 360° rotational CIP cleaning ball

10. Manway: Sealed-type man-hole

11. Vent: Dust-proof air-outlet

12. Product outlet valve: Push & pull type product outlet valve / stopcock

13. Electric motor & decelerator: Aluminium alloy casing for electrical motor & decelerator

Remarks: Other stainless steel tanks, such as: insulated (warm-keeping) storage tank, jacketed (heating & cooling) tank, fermentation tank, elevated tank, shear & emulsifying tank, direct cooling tank with various capacities are available for customers.

Other Products

AJMTK Series Mixing Tank

AJDCT Series Direct Cooling Tank

Company Profile

Name: Luoyang Aojia Co., Ltd.

Main Products: homogenizer,CIP machine,heat exchanger,water purification machine,refrigerated tank,mixing tank,fermentation tank,UHT machine,UHT sterilizer,pasteurizer,aseptic filling machine,cup filling machine

Business Type: Manufacture

Total Employees: 100 ~ 500

Address: 4F,W.Block,No.36,Jianshe Rd., Luoyang 471003,

As a leader and pioneer of the liquid-food machinery manufacturing industry in China, we are a professional manufacturer and exporter of filling machines, UHT sterilizers, pasteurizers, homegenizers, CIP machines, water purification machines, plate heat exchangers, stainless steel storage tanks, direct cooling tanks, mixing tanks, shear & emulsifying tanks, fermentation tanks, jacketed tanks, sanitary stainless steel pumps and liquid-food packaging materials.

In addition to offering the individual machines, we bring you a full package of solutions, i.e. complete set of production lines, for the processing and packaging of UHT milk, pasteurized milk, yogurt, flavored milk, milk-based beverage, bean milk, fruit juice, tea drinks. This includes production line designing, engineering, installation & commissioning, technical training, repairing & maintenance, spare parts supply, etc.

The full package of solutions is to bring a One-Stop Service for the customers, eliminates the worries and the sense of "what to do" and "where to move" which usually harass the customers when launching a new project. With our One-Stop Service, customers feel clearly directed, easy and relaxed from the beginning to the end of the project.

We warmly welcome you to contact us for business cooperations.
