ANCOO T3/T4 Series Digital Intelligent Tea Color Sorter,China ANCOO price supplier

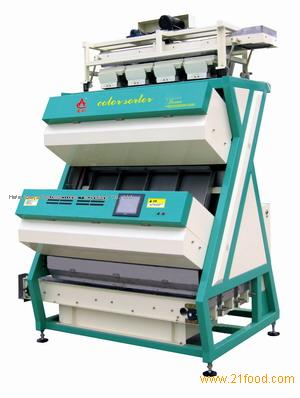

ANCOO T3/T4 Series Digital Intelligent Tea Color Sorter

FOB Price:Price can be negotiated

Update Time:2025-07-06

Product Description

Industry Private Computer as processing core, based on multi-module parallel processing structure, T3/T4 Series Digital Intelligent tea Color Sorter has adopted high technology such as, latest high-speed processor; digital picture modification; two individual sorting cabinets; high-speed mini ejector; instant numerical image identification and control algorithm; reliable network transmission protocol. Sorting process is absolutely digitized.

Besides normal size material sorting, with special algorithm application, it can be used for strips and flakes sorting, sorting scoped has been extended.
Sorting accuracy is greatly improved by collecting and processing image signal twice and sorting twice;
Instant numerical image modification process and proportionate channel design realizes high accuracy and low loss;
Applying micro color difference identify technology, successfully solve the problem of pekoe grading;
12 sorting schemes under three main sorting modes, such as sorting discolor, discolor reverse and discolor & discolor reverse can be saved for use.
Two separate vertical feeding system and flat chutes make material flow evenly;
Humanization design of the machine implements easy operation.

Name	T3	T4
Type	6CSX-90SE-CK	6CSX-120SE-CK
Channels	90	120
Throughput￡¨kg/h￡?	￡?270	￡?360
Sorting accuracy￡¨%￡?	99	99
Voltage￡¨V￡?	~220 (50Hz)	~220 (50Hz)
Power of main machine (kW)	2.4	3.0
Air Pressure (MPa)	0.6~0.8	0.6~0.8
Air consumption (m ³ /min)	<2.2	<3.0
Weight (kg)	1000	1000
Dimension (LWH) (mm)	2050 ×1599×2978	2050×1599×2978

Note: All the performance data listed above is taken the 4%-contaminant black tea with output capacity 2kg/h/channel as example, and the actual index is to be altered subject to the material and content of the contaminants.
