Automatic Bar Chocolate Packaging Machine,China KCX price supplier

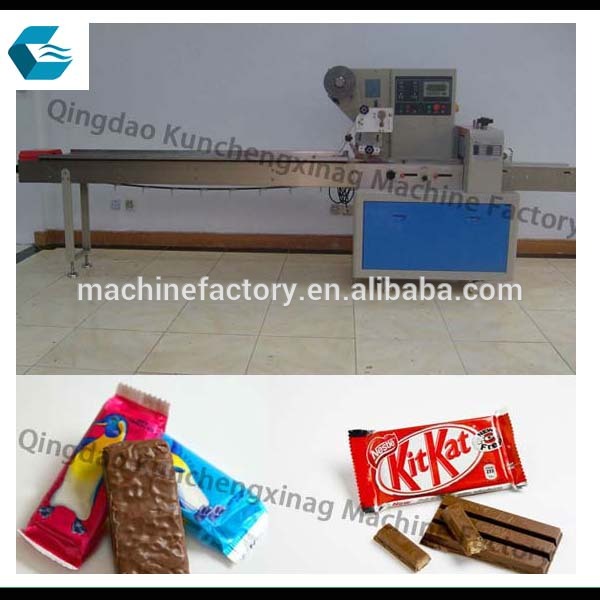

Automatic Bar Chocolate Packaging Machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month 25

Payment Terms: US $4,860 - 8,230 / Unit

Update Time:2014-09-28

Contact Supplier

Product Description

Bar Chocolate Packaging Machine
1.PLC Control
2.Colorful touch screen
3.40-230 bags/min
4.Pillow bag

Automatic Pillow Bag Chocolate Packaging Machine

Specifications

pillow automatic chocolate packaging machine
1.30-120bags/min
2.Film: OPP/POF/BOPP/PE
3.PLC control& touch screen
4.stable,reliable

Parameters

Type	KCX-280B		KCX-280D	KCX-280E	KCX-280S
Film width(mm)	Max.280mm			Max.280
Bag length(mm)	65-190, 120-280		90-220, 150-330	45-90
Bag width(mm)	30-110			55-110	45-95
Product height(mm)	Max.40		Max.55	Max.35	Max.40
Film roll diameter(mm)	Max.320
Speed(bag/min)	40-230	60-330
Power	220v, 50/60HZ 2.4kw
Machine size(mm)	37706701450
Machine weight(kg)	700

Application

Piece- product packaging: Bread , chocolate enrobed cheese bar , popsicles, cookies, waffles, ice trowels, cotton wool,

Group packaging : Waffles, Meat chops, bakery, soap, sponges, biscuit with tray etc.

Non standard products ( customization) Individual spoon, fork, knives, also suit for packing spoon ,fork, knife , napkin , toothpick ,etc

Main Performance

This machine adopts PLC for main control, hence steady in performance and easy to operate.

Human-machine interface in Chinese(English) ,making the setting and save easy and quick.

Main motor equipped with high quality AC frequency converter which makes step less speed changing.

High accuracy photoelectric detection tracing system with automatic compensation in both directions for reliable accuracy.

Non-stage transmission used for the adjustment of bag length. which makes machine much more durable, stable and precise.

The conveying chain can be adjusted without stopping the machine, convenient and sensitive.

Adjustable end sealing structure makes the sealing more perfect without cutting on the bags.

The complete machine shell is made of high quality stainless steel.

This machine can be equipped with nitrogen filling device and hot encoder. The printing position can be opted optionally.

Unique Feature

Available for chocolate of different length / width / height

Automatic, Compact and Robust Machine

Simple operation and low maintenance

Top Quality components and best workmanship

Chocolate contact parts are made of food Grade stainless steel

Photoelectric mark registration system for precise cutting and sealing of the pouches

Machine mounted on caster wheels for easy movement

Can Be Custom-made to suit specific requirements

Type:	Other,Packing Machine	Condition:	New	Application:	Food,Commodity,Chemical,Food with regular shape
Packaging Type:	Bags,Film	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.4kW
Place of Origin:	Shandong China (Mainland)	Brand Name:	KCX	Model Number:	KCX-250
Weight:	700KG,700kg	Dimension(LWH):	L37706701450	After-sales Service Provided:	Engineers available to service machinery overseas
Feature:	PLC control	Max Film Width:	280mm	Packing Speed:	40-230 bags/min
Bag Width:	30-110mm	Outside Dimension:	L37706701450	Packing Material:	PE/PP/BOPP/POF/PE/PVC
Packing Type:	Pillow Bag

Company Profile

Name: Qingdao Kunchengxiang Machine Factory

Main Products: Packing Machine,chocolate wrapping machine,candy packaging machine,soap packing machine,food packing machine

Business Type: Manufacturer, Trading Company

Total Employees: 301 - 500 People

Established Year: 1999

Main Markets: Eastern Asia, Mid East, Southeast Asia, South America, North America

Address: No.1205,Block B, the Junction of Hanghai and Xinghua Road

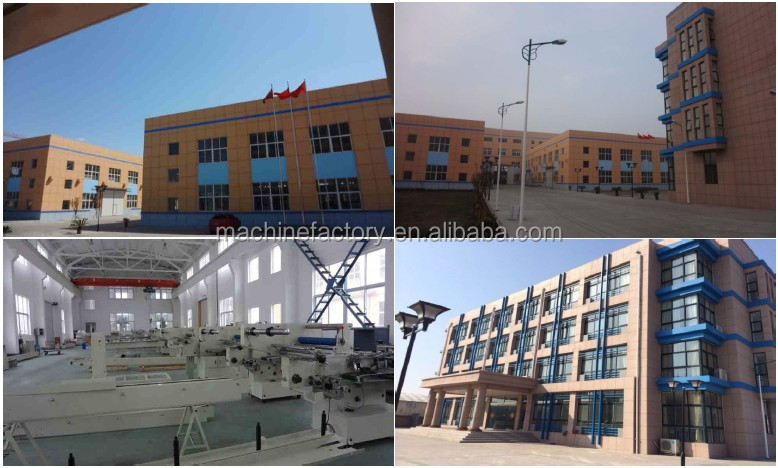

Qingdao Kunchengxiang Machine Factory is specialized in developing and producing packing machines and forging pressing machines.
