Automatic Chocolate bar flow packaging machine

FOB Price:Price can be negotiated

Production Capacity:16 Set/Sets per Month

Payment Terms: US $5,600 - 9,600 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

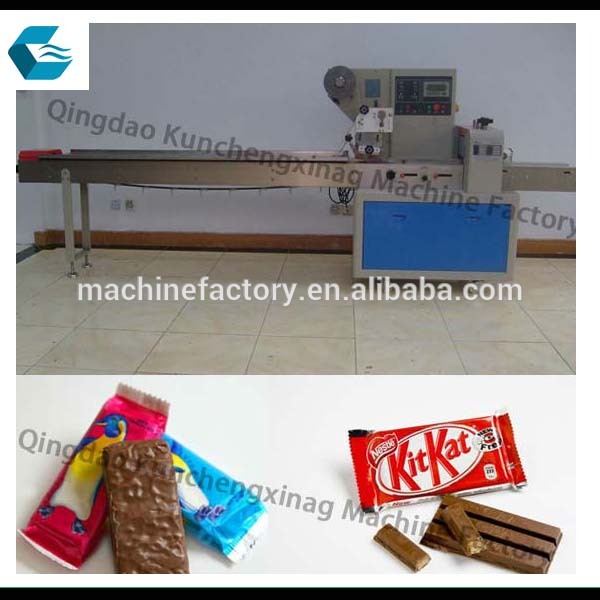

chocolate bar flow Packaging Machine
1 packing speed max.200bag/min
2 Product height max.60mm
3 Frequency control bag length

Automatic Chocolate packaging machine

Specifications

Packaging film width: max.320mm
Product height: max.60mm
Frequency control bag length and cutting
Supply different type packing machine

Technical Parameter

Type	KCX-320B	KCX-320D
Film width	Max. 320mm	Max. 320mm
Bag length	65-190 mm or 120-280mm	90-220 mm or 150-330mm
Bag width	50-160mm	50-160mm
Product height	Max.45mm	Max.60mm
Film roll diameter	Max. 320mm	Max. 320mm
Packaging rate	40-230 bag/min	40-230 bag/min
Power	220V,50/60HZ,2.6KVA	220V,50/60HZ,2.6KVA
Machine size	(L)3770X(W)720X(H)1450mm	(L)3770X(W)720X(H)1450mm
Machine quality	900kg	900kg

Main performance and structure features

1. Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.

2. Interface features easy and quick setting and operation.

3. Self failure diagnosis, clear failure display.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting/sealing position for extra accuracy.

5. Temperature independent PID control, more suitable for packaging different materials.

6. Positioned stop function, without sticking knife or wasting film.

7. Simple driving system, reliable working, convenient maintenance.

8. All control is realized through software, easy for function adjusting and technical upgrade.

Machine Application

Packaging various kinds of regular objects like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, etc

Type:	Other,Packing Machine	Condition:	New	Application:	Food
Packaging Type:	Bags,Film	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.6KVA
Place of Origin:	Shandong China (Mainland)	Brand Name:	KCX	Model Number:	KCX-320
Weight:	900KG	After-sales Service Provided:	Engineers available to service machinery overseas	Bag Format:	Back-sealed

Company Profile

Name: Qingdao Kunchengxiang Machine Factory

Main Products: Packing Machine,chocolate wrapping machine,candy packaging machine,soap packing machine,food packing machine

Business Type: Manufacturer, Trading Company

Total Employees: 301 - 500 People

Established Year: 1999

Main Markets: Eastern Asia, Mid East, Southeast Asia, South America, North America

Address: No.1205,Block B, the Junction of Hanghai and Xinghua Road

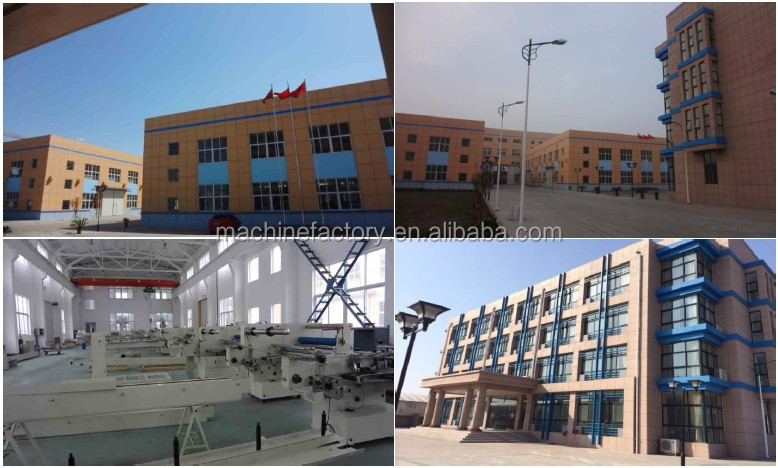

Qingdao Kunchengxiang Machine Factory is specialized in developing and producing packing machines and forging pressing machines.

We have a strong technical team and an experienced production and QC team. We comply with ISO2001:9000 quality management system standard and some machines have gotten CE certificate. Our packing machines have occupied 80% of domestic market share and have been exported to over 20 countries and regions, such as Europe, America, the Middle East and Southeast Asia. Our forging press machines have been exported to India, Vietnam, Bangladesh and Congo and gained good feedback from our customers.

If you are interested in any of our products, or hope to place a customized order, please contact us. We will do our best to meet your needs and guarantee stable and timely supply, credible quality and sincere and professional service. more
