automatic chocolate bar packaging machine,China EV price supplier

automatic chocolate bar packaging machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $4,000 - 20,000 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

1-Packing speed of about 20-200bags/min
2-PLC control servo motro driven
3-Chinese and English display
4-Double frequency

automatic chocolate bar Packaging Machine

Application:

The machine is mainly applied to the packaging of biscuit, betel nut, snowy biscuit,

snowy ice-lolly, yolk pie, instant noodles, chocolate, candy, western snacks, tableware for aerial food, transparent soap, hotel articles, wet tower, gauze mask, IC card, cartoon card, electric components, trademark, little hardware etc. block-shaped things in the industries such as food, daily chemistry, cosmetics, hardware, electronics etc. It has the function of anti-moisture, dustproof and photonegative, and also enhances the product level and additional value. It can save more than 20% cost than using the manual packaging, and it can combine the aluminum plastic packaging machine and thermal contraction-packaging machine to manufacture.

Function and characteristics:

1. Compact structure, stable and advanced performance, easy for operation.

2. Double frequency convert motor, and stepless variable speed, and the length

of bag can be set on PLC, and cutting will be reaction instant, just one step, and save

the time and film.

3. Adopt international famous electric components, PLC control, friendly operate

interface, for convenient and rapid to set parameters.

4.The indication of fault is clear, and function is more humanized.

5. Hi-sensitive electric eye, which trace the printed web on film and make the sealing

on accurate position.

6. Accurate temperature control, which is control the sealing temperature for various of

packing film. And the sealing effect is very well.

7.Set the function of positioning power-off, without sticking to the blade and no waste of film.

8.Simple and clear transmission system with more reliable work and more convenient

maintenance.

9.The control is realized through the soft, which facilitate the function regulation and

technology upgrade, and they can also satisfy the production requirement.

10.Automatic feeder device on the blister, which is suitable for the automatic feeding for aluminum plastic dosage panel with many kinds of specifications.

11.The different plastic feeders and N2 blower are optional.

Main technical parameters:

Type	EVH-120
Packing speed	180-200bags/min
Bag size	(L)65-160mm (W)35-100mm (H)5-35mm
Film width	90-240mm
Packing material	OPP/CPP, PT/PE , KOP/CPP , ALU-FOIL
Dimension	( L ) 4000X ( W ) 920X ( H ) 1600mm
Total power	3.4kw(220v)
Overall weight	550kg

Type	EVH-450
Packing speed	35-180bags/min
Bag size	(L)100-300mm (W)30-170mm (H)5-80mm
Film width	150-500mm
Packing material	OPP/CPP, PT/PE , KOP/CPP , ALU-FOIL
Dimension	( L ) 4000X ( W ) 1020X ( H ) 1600mm
Total power	4.8kw(220v)
Overall weight	700kg

model	EVH-500
Production capacity	20-200bag/min
Packaging size	90-180mm(two cutters) 150-360mm(one cutter)
width of film	430mm
Power of supply	3.0kw 220V
Weight	N.W: 1000kgs G.W: 1100kgs
Outline dimensions	L380011501500mm

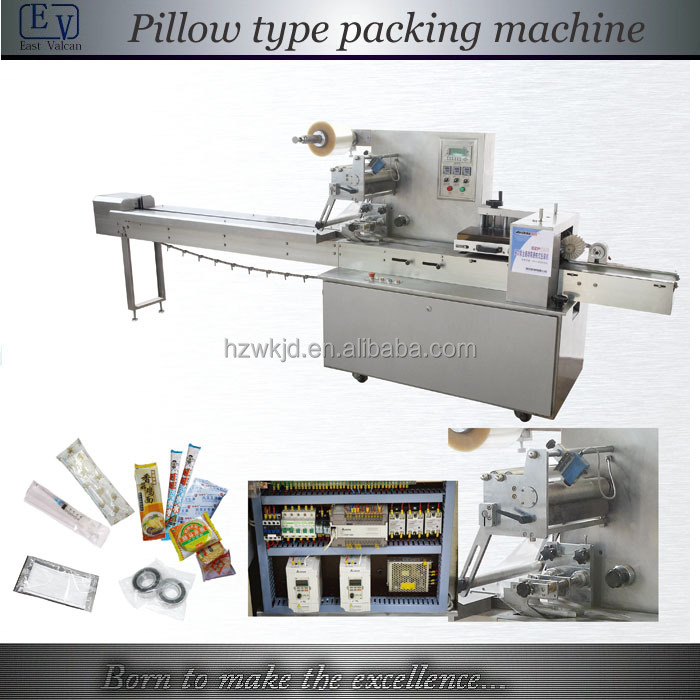

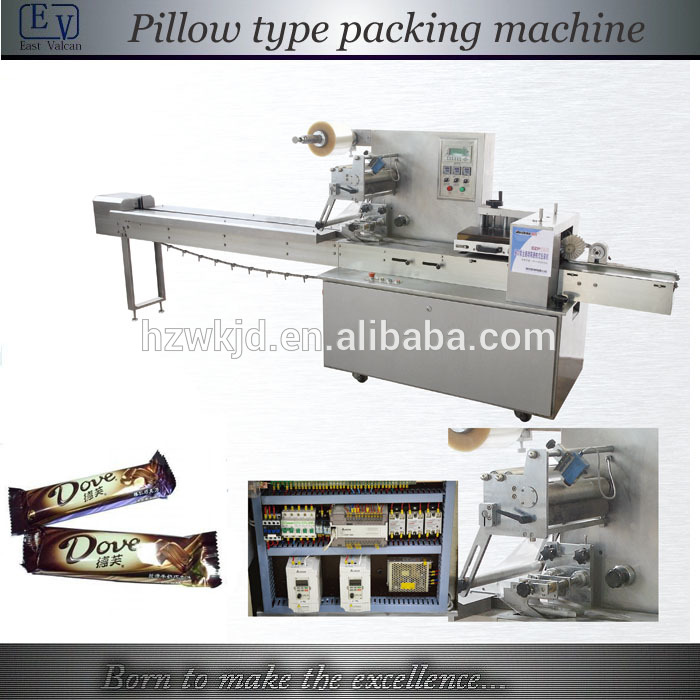

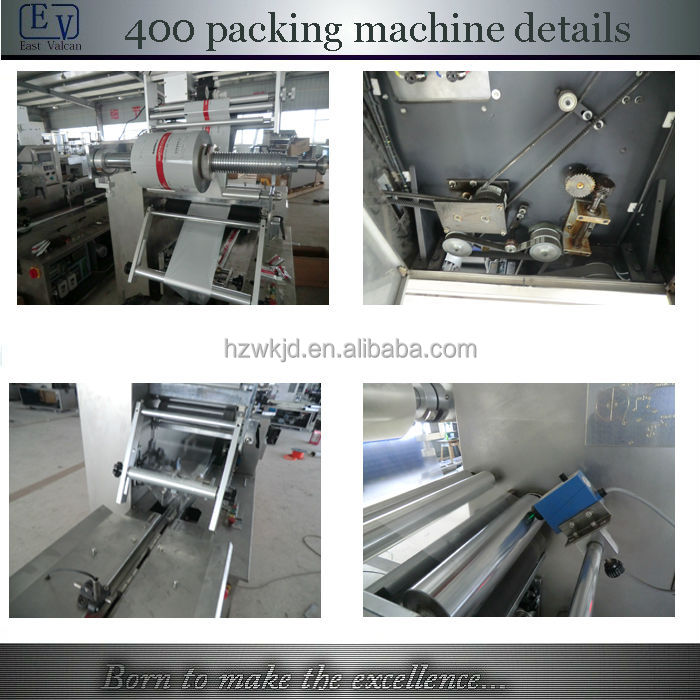

Photo:

Type:	Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Wrapping,Labeling,Sealing
Application:	Food,Commodity,Medical,Chemical	Packaging Type:	Stand-up Pouch,Bags,Film,Pouch	Packaging Material:	Plastic
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	customized
Power:	3kw	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	EV
Model Number:	EV-1605	Dimension(LWH):	L380011501500mm	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	bag shape:	flat bag	PLC control:	Siemens
packing Length:	90-180mm(two cutters) 150-360mm(one cutter)	Weight:	1000kgs	performance:	Stable and advanced
payment:	T/T or L/C	Packing:	wooden case
