Automatic cocoa powder packing machine/auger filler/powder filler,China JENPACK price supplier

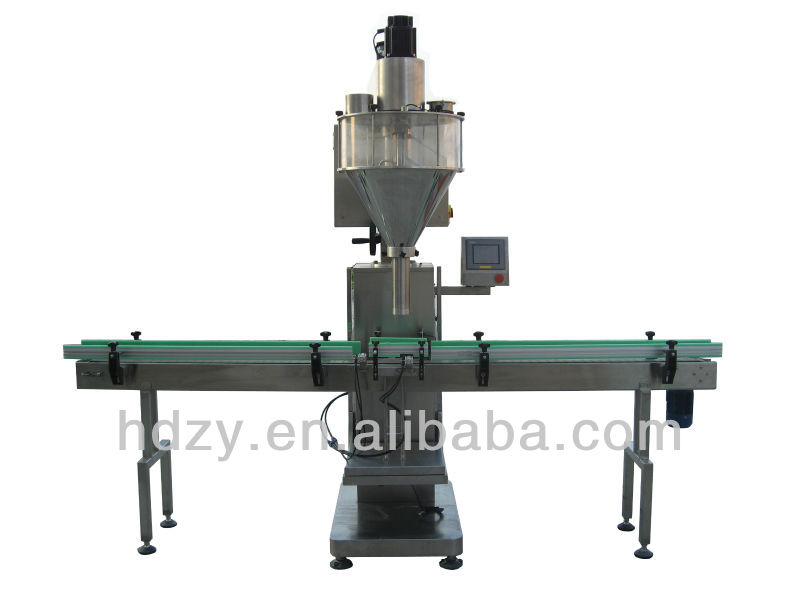

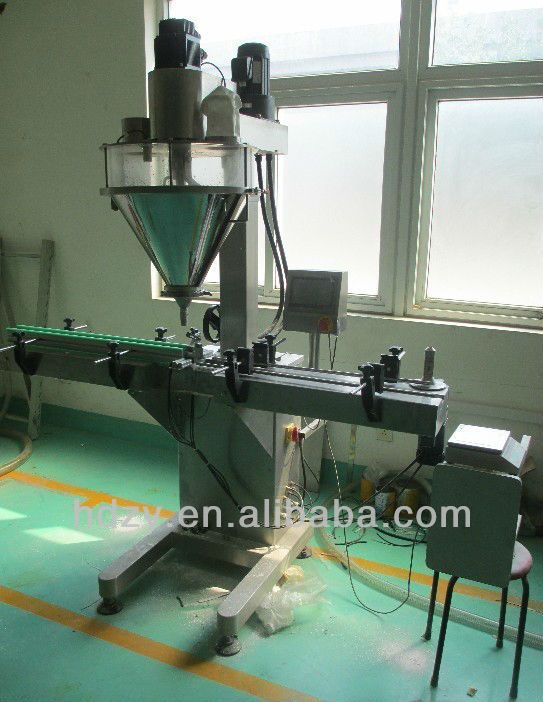

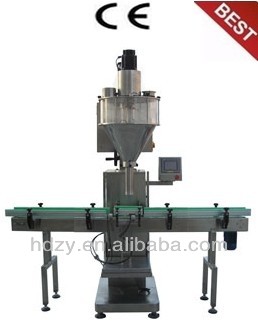

Automatic cocoa powder packing machine/auger filler/powder filler

FOB Price:Price can be negotiated

Production Capacity:8 Set/Sets per Month

Update Time:2014-09-20

Contact Supplier

Product Description

1.cheap price,corrosion resistant
2.good quality,
3.easy handle
This automatic Filling Machine can feed in

Description

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain Conveyor mounted on a sturdy, stable frame base, and all necessary Accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Technical data

Model	JN-SL-1A	JN-SL-1B
Dosing mode	Directly dosing by auger	With online weighing and container lift-fall function
Dosing range	0.5-5000g	100g-10kg
Container type	Solid container such as bottle ,jar ,tin etc
Packing accuracy	≤100g≤±2% 100-500g ≤±1% 500g <±0.5%,≥500g≤±0.5%	100-1000g ,≤±2%,>1000g ,±2%
Filling speed	15-50 bottles per min	5-30 bottles per min
Hopper volume	25L/ 45L disconnect hopper	70L level split hopper
Power Supply	3P AC 208-415V 50/60HZ	3P AC 208-415V 50/60HZ
Total Power	1.2 Kw /1.6Kw	2.7Kw
Total weight	160Kgs / 300Kgs	450kgs
Overall Dimensions	15007601850mm/20009702030mm	30009702300mm
Air supply	6kg/cm2 0.05m3/min	6kg/cm2 0.05m3/min

Main Features

1.Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.

2 .Servo motor drive screw.

3.PLC, Touch screen and weighing module control.

4. To save all product’s parameter formula for later use, save 10 sets at most.

5. Replacing the auger parts, it is suitable for material from super thin powder to granule.

6. Include handwheel of adjustable height.

Type:	Filling Machine,Automatic Powder Filling Machine	Condition:	New	Application:	Food,Commodity,Medical
Packaging Type:	Cans,Bottles	Packaging Material:	Metal	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P /208-415V 50/60Hz	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JENPACK	Model Number:	JN-SL-1B
Dimension(LWH):	30009702300mm	Weight:	450kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Filling speed:	5-30 bottles per min	Dosing mode:	Directly dosing by auger
Container type:	Solid container such as bottle ,jar ,tin etc	Dosing range:	100g-10kg

Company Profile

Name: Shanghai Hongde Zhiye Packaging Technology Co., Ltd.

Main Products: Semi-automatic Auger Filling Machine,Automatic Back Sealing Packing Machine for powder,Vertical automatic Form Filling Seal Machine,powder packing machine,box machine

Business Type: Trading Company

Total Employees: 11 - 50 People

Established Year: 1999

Main Markets: Southern Europe, Northern Europe, Central America, Western Europe, Mid East

Address: 982 of Thomas town,lane 900 Sanxing road,Songjiang district Shanghai,China

Our company, established in 1999, is specialized in designing packing lines and supplying packaging machines according to different material characters to meet different packing requirements. Our initial offering was an economical and highly reliable machine for powder and granular material and fluid material filling/packaging, featuring the simplified and non-sense design that can accurately dispense products with the minimum setup, maintenance and operator intervention.

We have rich experience in different forms of material packaging, whether your products are free flow or non flow, in fine powder form or granular form, liquid or cream. From pre-made containers to bags forming together with filling, small size or big size, you can find all suitable machines here. Our main products are listed as follows:

Auger filling machines for powder and small granular filling
Line weighers for granular material filling
Liquid filling machines
VFFS for different types of bag making when filling
Label machines for self adhesive labels and sleeve labels
Capping machines for Press caps and screw caps
Feeding machines, such as screw conveyors, vacuum feeders and baffle conveyors
Other equipment, such as blender mixers, heat sealers, sewing machines, carton machines, stock hoppers, etc. for the whole packaging lines

You can get high quality packing machines and the first-class sales services here with affordable prices. We promise, we do. The only thing that you should do is just give chances to us and then you will find the difference.
